6491B, House Wiring, Electric Wire, 450/750 V, Cu/Lszh (LS0H) Cable (BS 7211)
US$ 0.1 - 10
MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Boan
Model Number:
6491B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Twisted PVC Cable, Electric Wire, 450/750 V, Twisted Cu/PVC (IEC 60227) Quality ChoiceUS$ 0.1 - 1MOQ: 500 Meters -
6491X, Electric Wire, House Wiring, 450/750 V, Cu/PVC Cable (BS 6004)US$ 0.5 - 5MOQ: 500 Meters
-
Flat TPS Cable, PVC Power Cable, 450/750 V, Cu/PVC/PVC Flat Cable (AS/NZS 5000.2)US$ 0.3 - 5MOQ: 500 Meters
-
H07V-U Electric Cable Wire 450/750V Sloid Cu/PVC HD 21.3US$ 0.5 - 2MOQ: 500 Meters
-
H05V2V2-F Electric Wire 300/500V Flexible Cu/PVC/PVC (HD 21.5)US$ 0.1 - 1MOQ: 500 Meters
Place of Origin
Jiangsu, China
Brand Name
Boan
Model Number
6491B
Type
Insulated
Application
Other, Installation
Conductor Material
Copper
Conductor Type
Stranded
Insulation Material
Other, LSZH
Product Description

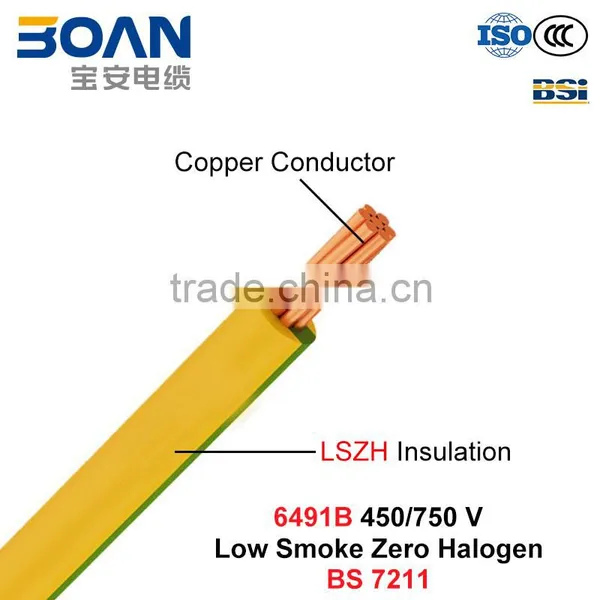

6491B, Electric Wire, 450/750 V, Cu/Lszh (LS0H) Cable (BS 7211) Application
Suitable for use in conduit and for fixed, protected installation. In particular for installation where fire, smoke emission and toxic fumes create a
potential threat.
Standards
BS7211, EN 50525-3-41:2011.
Technical Data
Conductor:Class 2 stranded plain copper conductors to BS EN 60228:2005 (previously BS6360)
Insulation:LSZH (Low Smoke Zero Halogen)
Low Smoke to BS EN/IEC 61034-1
Zero Halogen to IEC 60754-1 & 2, BS EN 50267-2-1 & 2
Insulation Colour:Black, Blue, Green/Yellow, Red, Yellow, White, Violet, Brown, Grey,Orange, Pink
Temperature Rating
0°C to +90°C
Voltage Rating
450/750V
| No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Weight |
| mm2 | mm | mm | kg/Km |
| 1 x 1.5 | 0.7 | 3.4 | 22 |
| 1 x 2.5 | 0.8 | 4.2 | 35 |
| 1 x 4.0 | 0.8 | 4.8 | 50 |
| 1 x 6.0 | 0.8 | 5.4 | 72 |
| 1 x 10.0 | 1.0 | 6.8 | 121 |
| 1 x 16.0 | 1.0 | 8.0 | 182 |
| 1 x 25.0 | 1.2 | 9.8 | 285 |
| 1 x 35.0 | 1.2 | 11.0 | 390 |
| 1 x 50.0 | 1.4 | 13.2 | 510 |
| 1 x 70.0 | 1.4 | 15.1 | 710 |
| 1 x 95.0 | 1.6 | 17.0 | 980 |
| 1 x 120.0 | 1.6 | 19.0 | 1220 |
| 1 x 150.0 | 1.8 | 21.0 | 1500 |
| 1 x 185.0 | 2.2 | 23.5 | 1910 |
| 1 x 240.0 | 2.2 | 26.5 | 2490 |
| 1 x 300.0 | 2.4 | 29.5 | 3100 |
| 1 x 400.0 | 2.6 | 33.5 | 3950 |
| 1 x 500.0 | 2.8 | 37.0 | 5000 |
| 1 x 630.0 | 2.8 | 41.0 | 6350 |
