DLO Cable Extreme Torsion, 600-2000 V, 1/C, Cu/Epr/CPE (ICEA S-95-658/NEMA WC70/UL 44/CSA C22.2 No. 38)
Features
Cable meets the 150 °/m Torsion Test for Windpower Turbine Cable in lieu of the 92 °/m standard test. Listed RHH / RHW-2 per UL and RW90 / R90 per CSA. Jacket is rated Oil Resistance I or II, UL 44. All sizes are rated VW-1. Cable is rated Sun Resistance for CT use, and FT4, 1/0 AWG and larger and -40 °C. Meets vertical flame tests.
Application
Suitable for use in static and dynamic wind power applications. For portable and fixed installations leads for motors, generators, batteries. Also as power cable used as DLO Locomotive Cable in railroad and transit car wiring.
Standards
UL 44 Rubber Insulated Wires and Cables.
CSA C22.2 No. 38 Thermoset Insulated Wires and Cables.
ICEA S-95-658/NEMA WC70 Nonshielded 0 - 2000 V Cables.
Specifications
Maximum operating voltage: RHH/RHW-2: 600 V or 2000 V, R90/RW90: 600 V, 1000 V and 2000 V
Maximum conductor operation temperatures: RHH/RHW-2: 90 °C wet and dry, R90: 90 °C dry, RW90: 90 °C wet and dry
Engineering Information

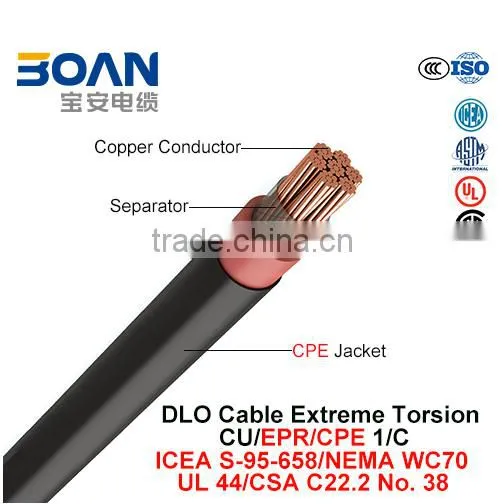

1. Conductor: Soft annealed uncoated copper conductor, flexible stranding per AAR RP-588, and ASTM B3, B172, B174 as applicable. Sizes: 14 AWG - 1111 kcmil.
2. Separator: A suitable opaque tape, as required.
3. Insulation: Flame retardant thermoset ethylene propylene rubber (EPR), meeting the requirements of UL 44.
4. Jacket: Black flame retardant thermoset chlorinated polyethylene (CPE) jacket, meeting the requirements of UL 44.
| Conductor Size | Number of Strands | Size of Each Strand | Insulation Thickness | Jacket Thickness | Maximum Overall Diameter | Approximate Total Weight |
| AWG or kcmil | AWG | mil | mil | in | lb/kft | |
| RHW-2 600 V & RW90 1000 V EPR Insulated | ||||||
| 8 | 37 | 24 | 45 | 30 | 0.30 | 81.00 |
| 6 | 63 | 24 | 60 | 30 | 0.39 | 136.00 |
| 4 | 105 | 24 | 60 | 30.00 | 0.45 | 202.00 |
| 2 | 154 | 24 | 60 | 30 | 0.51 | 276.00 |
| 1 | 224 | 24 | 80 | 45 | 0.64 | 421.00 |
| 1/0 | 273 | 24 | 80 | 45 | 0.68 | 494.00 |
| 2/0 | 323 | 24 | 80 | 45 | 0.74 | 578.00 |
| 3/0 | 426 | 24 | 80 | 45 | 0.83 | 775.00 |
| 4/0 | 551 | 24 | 80 | 45 | 0.88 | 890.00 |
| 263 | 646 | 24 | 90 | 65 | 1.00 | 1110.00 |
| 313 | 779 | 24 | 90 | 65 | 1.06 | 1306.00 |
| 374 | 931 | 24 | 90 | 65 | 1.13 | 1527.00 |
| 444 | 1110 | 24 | 90 | 65 | 1.20 | 1786.00 |
| 535 | 1332 | 24 | 90 | 65 | 1.29 | 2104.00 |
| 646 | 1591 | 24 | 90 | 65 | 1.37 | 2511.00 |
| 778 | 1952 | 24 | 90 | 65 | 1.49 | 2983.00 |
| 929 | 2318 | 24 | 90 | 65 | 1.59 | 3500.00 |
| 1111 | 2745 | 24 | 110 | 95 | 1.81 | 4270.00 |
| RHW 2000 V & RW90 1000 V EPR Insulated | ||||||
| 8 | 37 | 24 | 70 | 30 | 0.35 | 97.00 |
| 6 | 63 | 24 | 70 | 30 | 0.41 | 144.00 |
| 4 | 105 | 24 | 70 | 30 | 0.47 | 211.00 |
| 2 | 154 | 24 | 70 | 45 | 0.56 | 302.00 |
| 1 | 224 | 24 | 90 | 45 | 0.66 | 433.00 |
| 1/0 | 273 | 24 | 90 | 45 | 0.70 | 508.00 |
| 2/0 | 323 | 24 | 90 | 45 | 0.76 | 592.00 |
| 3/0 | 426 | 24 | 90 | 45 | 0.85 | 791.00 |
| 4/0 | 551 | 24 | 90 | 65 | 0.94 | 945.00 |
| 263 | 646 | 24 | 105 | 65 | 1.03 | 1140.00 |
| 313 | 779 | 24 | 105 | 65 | 1.09 | 1337.00 |
| 374 | 931 | 24 | 105 | 65 | 1.16 | 1560.00 |
| 444 | 1110 | 24 | 105 | 65 | 1.23 | 1821.00 |
| 535 | 1332 | 24 | 120 | 65 | 1.35 | 2181.00 |
| 646 | 1591 | 24 | 120 | 65 | 1.44 | 2593.00 |
| 778 | 1952 | 24 | 120 | 65 | 1.55 | 3071.00 |
| 929 | 2318 | 24 | 120 | 65 | 1.65 | 3594.00 |
| 1111 | 2745 | 24 | 140 | 95 | 1.87 | 4377.00 |
| RHW 2000 V & RW90 2000 V EPR Insulated | ||||||
| 8 | 37 | 24 | 70 | 30 | 0.35 | 97.00 |
| 6 | 63 | 24 | 70 | 30 | 0.41 | 144.00 |
| 4 | 105 | 24 | 70 | 30 | 0.47 | 211.00 |
| 2 | 154 | 24 | 70 | 45 | 0.56 | 302.00 |
| 1 | 224 | 24 | 90 | 45 | 0.66 | 433.00 |
| 1/0 | 273 | 24 | 90 | 45 | 0.70 | 508.00 |
| 2/0 | 323 | 24 | 90 | 45 | 0.76 | 592.00 |
| 3/0 | 426 | 24 | 90 | 45 | 0.85 | 791.00 |
| 4/0 | 551 | 24 | 90 | 65 | 0.94 | 945.00 |
| 263 | 646 | 24 | 105 | 65 | 1.03 | 1140.00 |
| 313 | 779 | 24 | 105 | 65 | 1.09 | 1337.00 |
| 374 | 931 | 24 | 105 | 65 | 1.16 | 1560.00 |
| 444 | 1110 | 24 | 105 | 65 | 1.23 | 1821.00 |
| 535 | 1332 | 24 | 120 | 65 | 1.35 | 2181.00 |
| 646 | 1591 | 24 | 120 | 65 | 1.44 | 2593.00 |
| 778 | 1952 | 24 | 120 | 65 | 1.55 | 3071.00 |
| 929 | 2318 | 24 | 120 | 65 | 1.65 | 3594.00 |
| 1111 | 2745 | 24 | 140 | 95 | 1.87 | 4377.00 |
We are glad to offer free samples for testing, please feel free to talk with us.
1. Are you a manufacturer?
Yes, we are a manufacturer. Jiangsu Baoan Cable Co., Ltd. Is factory. Mainly responsible for the import and export business.
2. What are your main products?
Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.
3. Is the quality of your products guaranteed?

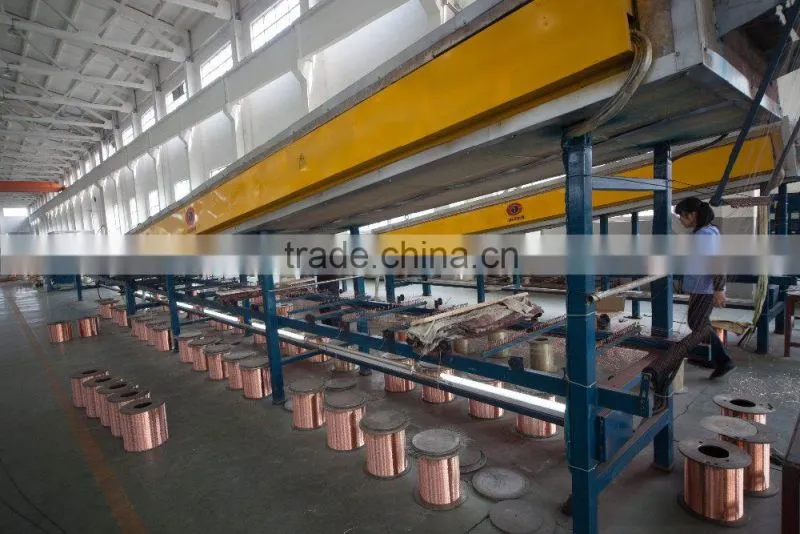

Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.
