H03VV-F, House Wiring, Electric Wire, 300/500 V, Flexible Cu/PVC/PVC (HD 21.5/VDE 0482-332)
US$ 0.55 - 0.75
MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DINGAN
Model Number:
H03VV-F
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
6381Y, House Wiring, Electric Wire, 450/750 V & 0.6/1 KV, Flexible Cu/PVC/PVC Cable (BS 6004) Quality ChoiceUS$ 0.5 - 5MOQ: 500 Meters -
2192-Y, Electric Wire, 300/500 V, Flexible Cu/PVC/PVC Cable (BS 6500)US$ 0.1 - 1MOQ: 500 Meters
-
H05V-K, House Wiring, Electric Wire, 300/500 V, Class 5 Cu/PVC (HD 21.3)US$ 0.1 - 5MOQ: 500 Meters
-
6491B, House Wiring, Electric Wire, 450/750 V, Cu/Lszh (LS0H) Cable (BS 7211)US$ 0.1 - 10MOQ: 500 Meters
-
Twisted PVC Cable, Electric Wire, 450/750 V, Twisted Cu/PVC (IEC 60227) Quality ChoiceUS$ 0.1 - 1MOQ: 500 Meters
Place of Origin
Jiangsu, China
Brand Name
DINGAN
Model Number
H03VV-F
Type
Insulated
Application
Other, house wiring
Conductor Material
Copper
Conductor Type
Stranded
Insulation Material
PVC
Product Description

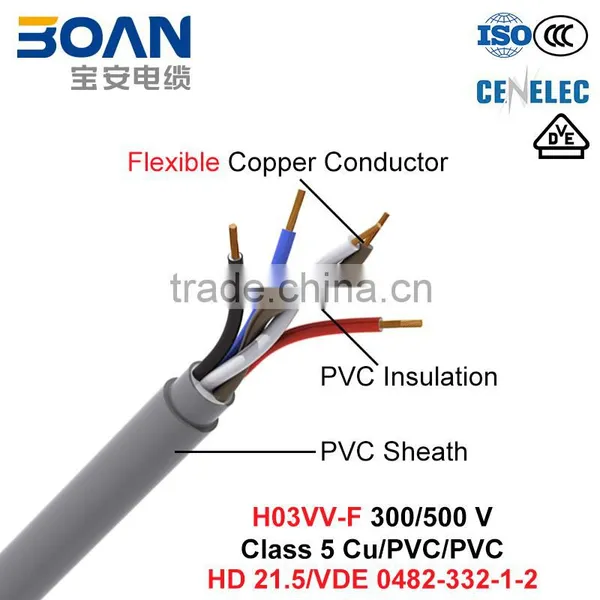

H03VV-F, Electric Wire, 300/500 V, Flexible Cu/PVC/PVC (HD 21.5/VDE 0482-332)
Application
Light duty cable for use in domestic premises, kitchens and offices. For use with light portable appliances such as radios, table lamps and office machines.
Standards
BS6500, CENELEC HD21.5, VDE 281
Technical Data
Conductor
Class 5 flexible plain copper conductors to BS EN 60228: 2005 (previously BS6360)
Insulation
PVC (Polyvinyl Chloride) to BS7655
Sheath
PVC (Polyvinyl Chloride) to BS7655
Voltage Rating
300/500V
Temperature Rating
0° C to +70° C
Minimum Bending Radius
6 x overall diameter
| No x Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Weight |
| # x mm2 | mm | mm | ||
| 2 x 0.50 | 0.5 | 0.6 | 5.0 | 38 |
| 2 x 0.75 | 0.5 | 0.6 | 5.4 | 46 |
| 3 x 0.50 | 0.5 | 0.6 | 5.4 | 45 |
| 3 x 0.75 | 0.5 | 0.6 | 5.8 | 56 |
| 4 x 0.50 | 0.5 | 0.6 | 5.8 | 55 |
