DLO 2 Kv, 1/C, Cu/Epr/CPE (ICEA S-95-658/NEMA WC70/UL 44/CSA C22.2 No. 38)
US$ 2 - 35
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DINGAN
Insulation Material:
Rubber
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DLO, Diesel Locomotive Cable, 2 Kv, 1/C, Cu/EPR/CPE (ICEA S-95-658/NEMA WC70/UL 44/CSA C22.2 No. 38) Quality ChoiceUS$ 2 - 35MOQ: 500 Meters -
Dlo Cable Extreme Torsion 600-2000 V 1/C Cu/Epr/CPE ICEA S-95-658/NEMA WC70/ULUS$ 1 - 5MOQ: 500 Inches
-
YJLW02, EHV Power Cable, 48/66 KV~127/220 KV, Cu/XLPE/Corrugated AL/PVC (GB/T 11017/IEC 60840)US$ 30.00 - 30.00MOQ: 100 Meters
-
H03VV-F, House Wiring, Electric Wire, 300/500 V, Flexible Cu/PVC/PVC (HD 21.5/VDE 0482-332)US$ 0.55 - 0.75MOQ: 500 Meters
-
6381Y, House Wiring, Electric Wire, 450/750 V & 0.6/1 KV, Flexible Cu/PVC/PVC Cable (BS 6004) Quality ChoiceUS$ 0.5 - 5MOQ: 500 Meters
Place of Origin
Jiangsu, China
Brand Name
DINGAN
Insulation Material
Rubber
Type
Medium Voltage
Application
Other
Conductor Material
Other, Copper, Tinned Copper
Jacket
Rubber
Product Description

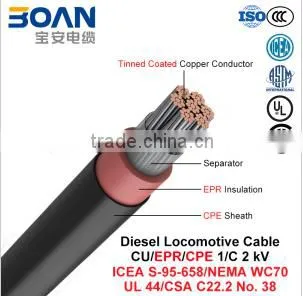

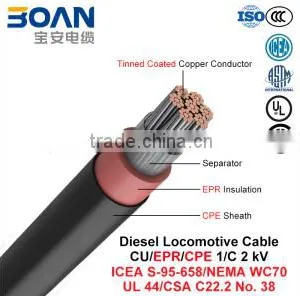

DLO, Diesel Locomotive Cable, 2 KV, 1/C, Cu/EPR/CPE (ICEA S-95-658/NEMA WC70/UL 44/CSA C22.2 No. 38)
Features
Cable is Listed RHH/RHW-2 per UL, and Listed RW90/R90 per CSA. Jacket is rated Oil Resistance I or II rated per UL 44. All sizes meet VW-1 flame test. Type RHH/RHW-2 is rated Sun Resistance For CT use, 1/0 AWG and larger. Type RW90/R90 is rated -40 °C and FT4. Meets vertical flame tests.
Application
As power cable used in DLO Locomotive Cable, railroad and transit car wiring where high reliability is required. Also suitable for use in static and dynamic wind power applications. For portable and fixed installations leads for motors, generators, batteries.
Standards
UL 44
Rubber Insulated Wires and Cables.
CSA C22.2 No. 38
Thermoset Insulated Wires and Cables.
ICEA S-95-658/NEMA WC70
Nonshielded 0 - 2000 V Cables.
Specifications
Maximum operating voltage: 2000 volts
Maximum conductor operation temperatures: 90 °C wet and dry locations
Engineering Information
1. Conductor: Soft annealed tinned coated copper conductor, flexible stranding per AAR RP-588, and ASTM B3, B172, B174 as applicable. On request, uncoated copper wires.
Sizes: 14 AWG - 1111 kcmil.
2. Separator: A suitable opaque tape, as required.
3. Insulation: Flame retardant thermoset ethylene propylene rubber (EPR), meeting the requirements of UL 44.
4. Jacket: Black flame retardant thermoset chlorinated polyethylene (CPE) jacket, meeting the
requirements of UL 44.
Features
Cable is Listed RHH/RHW-2 per UL, and Listed RW90/R90 per CSA. Jacket is rated Oil Resistance I or II rated per UL 44. All sizes meet VW-1 flame test. Type RHH/RHW-2 is rated Sun Resistance For CT use, 1/0 AWG and larger. Type RW90/R90 is rated -40 °C and FT4. Meets vertical flame tests.
Application
As power cable used in DLO Locomotive Cable, railroad and transit car wiring where high reliability is required. Also suitable for use in static and dynamic wind power applications. For portable and fixed installations leads for motors, generators, batteries.
Standards
UL 44
Rubber Insulated Wires and Cables.
CSA C22.2 No. 38
Thermoset Insulated Wires and Cables.
ICEA S-95-658/NEMA WC70
Nonshielded 0 - 2000 V Cables.
Specifications
Maximum operating voltage: 2000 volts
Maximum conductor operation temperatures: 90 °C wet and dry locations
Engineering Information
1. Conductor: Soft annealed tinned coated copper conductor, flexible stranding per AAR RP-588, and ASTM B3, B172, B174 as applicable. On request, uncoated copper wires.
Sizes: 14 AWG - 1111 kcmil.
2. Separator: A suitable opaque tape, as required.
3. Insulation: Flame retardant thermoset ethylene propylene rubber (EPR), meeting the requirements of UL 44.
4. Jacket: Black flame retardant thermoset chlorinated polyethylene (CPE) jacket, meeting the
requirements of UL 44.
