CU/PVC/SWA/PVC, Control Cable, 0.6/1 KV (BS EN 60228/BS 7655)

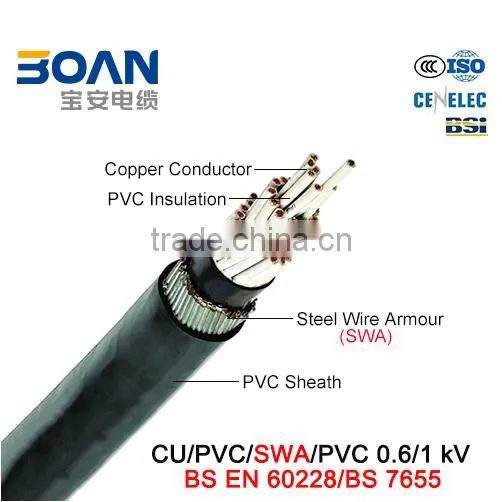

CONSTRUCTION:
Conductor: Plain annealed stranded circular copper conductor, as per Class 2 of BS EN 60228.
Insulation: An extruded layer of Polyvinyl chloride (PVC) insulation, rated 70 º C at normal operation to BS 7655-3.1.
Bedding: An extruded layer of Polyvinyl chloride (PVC).
Armour: Single layer of galvanized steel wires.
Outer Sheath: An extruded layer of Polyvinyl chloride (PVC) sheathing compound type TM1 to BS 7655-4.1.
APPLICATION: For use indoors in cable trenches or ducts; And outdoors - for connecting signaling and control units in industries, railways, traffic signals, power stations, industrial plants and switchgears if mechanical protection is not required, or in applications where the cable is not exposed to mechanical damage.
TECHNICAL DATA:
- Nominal voltage Uo/U = 0.6/1 kV
- Power frequency test voltage 3.5 kV for 5 minutes
- Max. Admissible temperature of conductor at normal operation 70 º C
- Max. Admissible temperature of conductor at short circuit 160 º C for 5 seconds
| Section | Max. Conductor Resistance | Current Rating | Overall Diameter | Cable Weight | |||
| DC at 20 | AC at 70 | Laid in Ground | Laid in Ducts | Laid in Free Air | |||
| No. x mm2 | Ω/km | Ω/km | A | A | A | mm | kg/km |
| 1.5 mm2 | |||||||
| 7 X 1.5 | 12.1000 | 14.6000 | 16.0 | 14.0 | 12.5 | 15.6 | 490 |
| 12 X 1.5 | 12.1000 | 14.6000 | 13.0 | 11.5 | 10.5 | 19.7 | 790 |
| 19 X 1.5 | 12.1000 | 14.6000 | 10.0 | 9.0 | 8.0 | 22.6 | 1040 |
| 27 X 1.5 | 12.1000 | 14.6000 | 8.0 | 7.5 | 6.5 | 27.1 | 1515 |
| 37 X 1.5 | 12.1000 | 14.6000 | 7.5 | 6.5 | 6.0 | 30.0 | 1860 |
| 2.5 mm2 | |||||||
| 7 X 2.5 | 7.4100 | 8.8700 | 22.0 | 18.5 | 16.0 | 18.3 | 725 |
| 12 X 2.5 | 7.4100 | 8.8700 | 18.0 | 15.5 | 13.5 | 22.4 | 1025 |
| 19 X 2.5 | 7.4100 | 8.8700 | 14.0 | 12.0 | 10.5 | 26.9 | 1575 |
| 27 X 2.5 | 7.4100 | 8.8700 | 11.5 | 10.0 | 8.5 | 31.0 | 2020 |
| 37 X 2.5 | 7.4100 | 8.8700 | 10.0 | 9.0 | 7.5 | 34.4 | 2495 |
| 4.0 mm2 | |||||||
| 7 X 4.0 | 4.6100 | 5.5100 | 28.0 | 23.0 | 21.5 | 20.9 | 940 |
| 12 X 4.0 | 4.6100 | 5.5100 | 23.0 | 19.5 | 18.0 | 27.1 | 1570 |
| 19 X 4.0 | 4.6100 | 5.5100 | 18.0 | 15.0 | 14.0 | 31.1 | 2115 |
| 27 X 4.0 | 4.6100 | 5.5100 | 14.5 | 12.0 | 11.0 | 37.1 | 3110 |
| 37 X 4.0 | 4.6100 | 5.5100 | 13.0 | 11.0 | 10.0 | 41.1 | 3840 |
We are glad to offer free samples for testing, please feel free to talk with us.
1. Are you a manufacturer?
Yes, we are a manufacturer. Jiangsu Baoan Cable Co., Ltd. Is factory. Mainly responsible for the import and export business.
2. What are your main products?
Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.
3. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.
4. How can I get samples?
Please tell us the detailed information of products you need. Then we will check our stock. If we don't have the exact model you need, please consider whether the similar model is OK for you.
5.What is your waranty terms?
The waranty period of all of our products is one year after they arrived at the destination port. Disclaimer:the waranty terms don't cover the failures caused by violence handling,installation and operation.
