Auxiliary Multicore Cable 600/1000 Volts

Name: Auxiliary Multicore Cable 600/1000 Volts
Brand: Boan
SKU: 116457907
Availability: InStock

Auxiliary Multicore Cable 600/1000 Volts thumbnail-1

Auxiliary Multicore Cable 600/1000 Volts photo-1

US$ 0.3 - 3 MOQ: 500 Inches

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Boan

Model Number:

Cu PVC Swa PVC

Contact Supplier Request Quote Chat Now

Jiangsu Boan Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Boan

Model Number Cu PVC Swa PVC

Application Industrial

Conductor Material Copper

Jacket PVC

Insulation Material PVC

Product Description

AUXILIARY MULTICORE CABLE

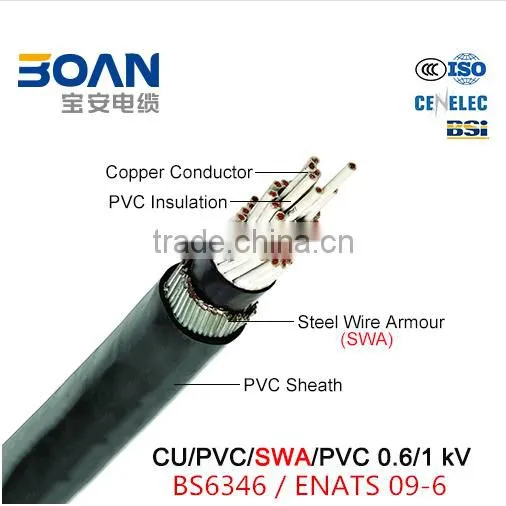

Cable Specification: Auxiliary Multicore Cables available in 2.5mm and cores from 2 to 37 and manufactured to British Standard BS6346. The cable features stranded plain annealed copper conductor, PVC insulated, PVC bedding, galvanised steel wire armour, PVC outer sheath. Black. 600/1000 volts grade to BS6346 / ENATS 09-6. Flame retardant to IEC 60332-3-24c.

Technical

Auxiliary Multicore Cable

Purpose: The cable is mainly used in substations and power stations. They are also suitable for indoor or outdoor equipment installation. The cable features stranded plain annealed copper conductors, PVC insulation, PVC bedding, a galvanised steel wire armour and black PVC outer sheath.

Standards: BS6346 / ENATS 09-6. Flame retardant to IEC 60332-3-24c.

Conductor: Stranded Plain Annealed Copper Conductor

Insulation: PVC

Bedding: PVC

Armouring: Galvanised Steel Wire Armour

Sheath: PVC

Sheath Colour: Black

Voltage Rating: 600/1000 Volts

Temperature Rating: Temperature limits: -30°C to +70°C

Minimum Bending Radius: 6 x overall diameter

Should not be installed at temperatures below 0°C or above +40°C

For more information please consult a member of the Cleveland Cable Sales Team.

CORE IDENTIFICATION

White numbered cores

CCC_Code	Conductor size	Standing(mm)	No. of cores	Weight	Overall Diameter	Gland Size	Nylon cleat size
CCC_Code	(mm²)	Standing(mm)	No. of cores	(Kg/Km)	(mm)	(mm)	Nylon cleat size
6942X2/5ESI	2.5	7/0.67	2	329	12.2	20S	0.5
2X2.5(7) PVC,PVC,SWA,PVC,ESI, WHITE CORES, BLACK NOS BS6346

6943X2/5ESI	2.5	7/0.67	3	396	13.5	20S	0.6
3X2.5(7) PVC,PVC,SWA,PVC,ESI, WHITE CORES, BLACK NOS BS6346

6944X2/5ESI	2.5	7/0.67	4	423	14.4	20	0.6
4X2.5(7) PVC,PVC,SWA,PVC,ESI, WHITE CORES, BLACK NOS BS6346

6947X2/5/7	2.5	7/0.67	7	672	17.2	20	0.7
7X2.5(7) PVC,PVC,SWA,PVC 1KV WHITE CORES, BLACK NOS BS6346

6940/12X2/5/7	2.5	7/0.67	12	967	21.3	25	0.9
12X2.5(7) PVC,PVC,SWA,PVC 1KV BS6346 WHITE CORES, BLACK NOS BS6346

6940/19X2/5/7	2.5	7/0.67	19	1482	25.4	25	1.1
19X2.5(7) PVC,PVC,SWA,PVC 1KV BS6346 WHITE CORES, BLACK NOS BS6346

6940/27X2/5/7	2.5	7/0.67	27	1920	29.3	32	1.2
27X2.5(7) PVC,PVC,SWA,PVC 1KV BS6346 WHITE CORES, BLACK NOS BS6346

6940/37X2/5/7	2.5	7/0.67	37	2185	33.1	40	1.4
37X2.5(7) PVC,PVC,SWA,PVC 1KV BS6346 WHITE CORES, BLACK NOS BS6346

Packaging & Shipping

Our Services

We are glad to offer free samples for testing, please feel free to talk with us.

Company Information

FAQ

1. Are you a manufacturer?

Yes, we are a manufacturer. Jiangsu Baoan Cable Co., Ltd. Is factory. Mainly responsible for the import and export business.

2. What are your main products?

Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.

3. Is the quality of your products guaranteed?

Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.

4. How can I get samples?

Please tell us the detailed information of products you need. Then we will check our stock. If we don't have the exact model you need, please consider whether the similar model is OK for you.

5.What is your waranty terms?

The waranty period of all of our products is one year after they arrived at the destination port. Disclaimer:the waranty terms don't cover the failures caused by violence handling,installation and operation.
