Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Classic 110, Control Cable, Flexible CU/PVC/PVC, 300/500 V (DIN VDE 0281)
Classic 110, Control Cable, Flexible CU/PVC/PVC, 300/500 V (DIN VDE 0281)
US$ 1 - 10
MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DINGAN
Model Number:
Classic 110
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SY LSZH Control Cable, 300/500 V, Flexible Cu/XLPE/LSZH/GSWB/LSZH (BS 6500)US$ 0.5 - 25MOQ: 500 Meters -
Ysly-Jz Control Cable 300/500V Flexible Cu/PVC/PVC (VDE 0281-13)US$ 0.1 - 3MOQ: 500 Inches
-
YSLCY, Control Cable, 300/500 V, Flexible CU/PVC/TCWB/PVC (VDE 0281-13)US$ 0.5 - 16MOQ: 500 Meters
-
Cy Control Cable 300/500V Flexible Cu/Hf/Petp/Tcwb/Lszh BS 6500US$ 1 - 3MOQ: 500 Inches
-
Classic 100 CY, Control Cable, Flexible Cu/PVC/PVC/TCWB/PVC, 450/750 V (DIN VDE 0281)US$ 0.5 - 20MOQ: 500 Meters
Place of Origin
Jiangsu, China
Brand Name
DINGAN
Model Number
Classic 110
Insulation Material
PVC
Type
Low Voltage
Application
Industrial
Conductor Material
Copper
Jacket
PVC
Classic 110, Control Cable, Flexible CU/PVC/PVC, 300/500 V (DIN VDE 0281)
Classic 110 is a multi-conductor, flexible control cable designed for use in all electrical equipment in dry, damp and wet conditions.
Applications:
Recommended applications include machine tools, assembly lines, control systems, data processing equipment, connections between control panels and machines, CNC machining centers, grinding machines
and bottling equipment.

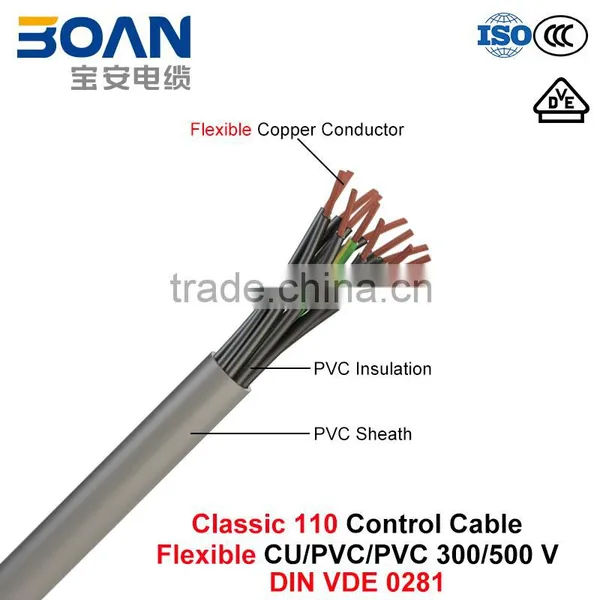

Classic 110 Construction:
Finely stranded bare copper conductors; PVC insulation; conductors cabled with non-wicking fillers; dry lubricant; gray PVC jacket.
Technical Data:
Minimum Bend Radius: for installation: 4 x cable diameter
Technical Data:
Minimum Bend Radius: for installation: 4 x cable diameter
Temperature Range: Classic 110 -40°C to +80°C
Nominal Voltage: 300/500V
Test Voltage: 4000V
Nominal Voltage: 300/500V
Test Voltage: 4000V
Conductor Stranding: Fine wire VDE 0295, Class 5
Color Code: Black with white numbers, plus green/yellow ground
| Number of Conductors includes ground | Nominal Outer Diameter | Approx. Weight | ||
| inches | mm | lbs/mft | kg/km | |
| 18 AWG (32/32) 1.00 mm2 | ||||
| 2 | 0.224 | 5.7 | 36 | 53 |
| 3 | 0.236 | 6.0 | 44 | 65 |
| 4 | 0.256 | 6.5 | 53 | 79 |
| 5 | 0.280 | 7.1 | 63 | 94 |
| 7 | 0.315 | 8.0 | 85 | 126 |
| 12 | 0.413 | 10.5 | 138 | 205 |
| 18 | 0.500 | 12.7 | 202 | 300 |
| 25 | 0.579 | 14.7 | 274 | 408 |
| 34 | 0.673 | 17.1 | 370 | 551 |
| 41 | 0.740 | 18.8 | 444 | 661 |
| 50 | 0.811 | 20.6 | 536 | 797 |
| 65 | 0.929 | 23.6 | 694 | 1033 |
| 80 | 0.996 | 25.3 | 844 | 1251 |
| 100 | 1.114 | 28.3 | 1048 | 1560 |
| 16 AWG (30/30) 1.50 mm2 | ||||
| 2 | 0.248 | 6.3 | 46 | 68 |
| 3 | 0.264 | 6.7 | 56 | 84 |
| 4 | 0.283 | 7.2 | 70 | 104 |
| 5 | 0.319 | 8.1 | 86 | 128 |
| 7 | 0.350 | 8.9 | 112 | 166 |
| 12 | 0.472 | 12.0 | 188 | 279 |
| 18 | 0.567 | 14.4 | 274 | 407 |
| 25 | 0.665 | 16.9 | 376 | 560 |
| 34 | 0.764 | 19.4 | 501 | 746 |
| 41 | 0.839 | 21.3 | 602 | 895 |
| 50 | 0.925 | 23.5 | 732 | 1089 |
| 65 | 1.051 | 26.7 | 940 | 1398 |
| 80 | 1.134 | 28.8 | 1148 | 1708 |
| 14 AWG (50/30) 2.50 mm2 | ||||
| 2 | 0.295 | 7.5 | 68 | 101 |
| 3 | 0.319 | 8.1 | 89 | 132 |
| 4 | 0.350 | 8.9 | 110 | 163 |
| 5 | 0.394 | 10.0 | 134 | 200 |
| 7 | 0.437 | 11.1 | 179 | 267 |
| 12 | 0.583 | 14.8 | 299 | 445 |
| 18 | 0.701 | 17.8 | 436 | 648 |
| 25 | 0.819 | 20.8 | 598 | 890 |
| 34 | 0.961 | 24.4 | 812 | 1208 |
| 50 | 1.157 | 29.4 | 1179 | 1754 |
| 12 AWG (56/28) 4 mm2 | ||||
| 3 | 0.390 | 9.9 | 135 | 201 |
| 4 | 0.425 | 10.8 | 167 | 249 |
| 5 | 0.476 | 12.1 | 205 | 305 |
| 7 | 0.528 | 13.4 | 274 | 407 |
| 11 | 0.693 | 17.6 | 426 | 634 |
| 10 AWG (84/28) 6 mm2 | ||||
| 3 | 0.461 | 11.7 | 194 | 289 |
| 4 | 0.512 | 13.0 | 245 | 365 |
| 5 | 0.571 | 14.5 | 300 | 447 |
| 7 | 0.630 | 16.0 | 403 | 600 |
| 8 AWG (80/26) 10 mm2 | ||||
| 4 | 0.638 | 16.2 | 397 | 590 |
| 6 AWG (128/26) 16 mm2 | ||||
| 4 | 0.740 | 18.8 | 731 | 1087 |
| 4 AWG (200/26) 25 mm2 | ||||
| 4 | 0.925 | 23.5 | 1063 | 1582 |
| 2 AWG (280/26) 35 mm2 | ||||
| 4 | 1.039 | 26.4 | 1415 | 2106 |
| 5 | 1.185 | 30.1 | 1771 | 2635 |
