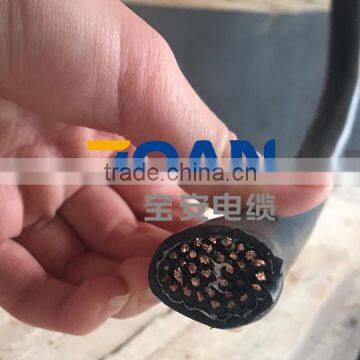

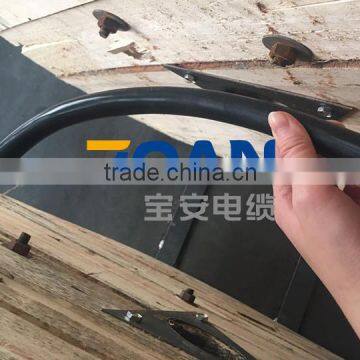

Classic 100, Control Cable, Flexible Cu/PVC/PVC, 450/750 V (DIN VDE 0281/HD 21)
USD $1 - $11
/ Meter
500 Meters(Min.Order)
- 130000 Kilometer / Kilometers per Month
- Shanghai
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | Boan | Model Number: | Classic 100 |
| Application: | Instrumentation | Conductor Material: | Copper | Jacket: | PVC |
| Insulation Material: | PVC |
Product Description
Product Description
Classic 100, Control Cable, Flexible Cu/PVC/PVC, 450/750 V (DIN VDE 0281/HD 21)
Application
Plant engineering Industrial machinery Heating and air-conditioning systems Power stations
Dry or damp rooms that are subject to medium mechanical loads
For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
Design
Fine-wire strand made of bare copper wires
PVC insulation
Cores twisted in layers
PVC outer sheath, grey (RAL 7001)
Product features
Flame-retardant according to IEC 60332-1-2
Good chemical resistance see Appendix T1
Technical Data
Core identification code: Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
From 6 cores: colour code, refer to Appendix T7
Based on: IEC 60227-5
HD 21.5 S3
VDE 0281 Part 5
HD 21.13 S1
VDE 0281 Part 13
Specific insulation resistance: > 20 GOhm x cm
Conductor stranding: Fine wire according to VDE 0295, class 5/IEC 60228 class 5
Torsion movement in WTG: TW-0 & TW-1
refer to catalogue, Appendix T0
Minimum bending radius: Occasional flexing: 15 x outer diameter
Fixed installation: 4 x outer diameter
Nominal voltage: Up to 1.5 mm²: U0/U: 300/500 V
From 2.5 mm²: U0/U: 450/750 V
From 2.5 mm², in the case of fixed and protected installations:
U0/U: 600/1000 V
Test voltage: 4000 V
Protective conductor: G = with GN-YE protective conductor
X = without protective conductor
Temperature range: Occasional flexing: -5°C to +70°C
Fixed installation: -40°C to +80°C
| Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX® CLASSIC 100; U0/U: 300/500 V | |||
| 2 X 0,5 | 4,8 | 9.6 | 35 |
| 3 G 0,5 | 5,1 | 14.4 | 42 |
| 3 X 0,5 | 5,1 | 14.4 | 42 |
| 4 G 0,5 | 5,7 | 19.2 | 54 |
| 4 X 0,5 | 5,7 | 19.2 | 54 |
| 5 G 0,5 | 6,2 | 24.0 | 63 |
| 5 X 0,5 | 6,2 | 24.0 | 63 |
| 6 G 0,5 | 6,7 | 28.8 | 73 |
| 7 G 0,5 | 6,7 | 33.6 | 81 |
| 8 G 0,5 | 8.0 | 38.4 | 97 |
| 10 G 0,5 | 8,6 | 48.0 | 116 |
| 12 G 0,5 | 8,9 | 58.0 | 133 |
| 14 G 0,5 | 9,5 | 67.0 | 151 |
| 16 G 0,5 | 10.0 | 76.0 | 169 |
| 21 G 0,5 | 11,7 | 99.0 | 223 |
| 24 G 0,5 | 12,4 | 114.0 | 254 |
| 40 G 0,5 | 15,4 | 192.0 | 404 |
| 2 X 0,75 | 5,4 | 14.4 | 45 |
| 3 G 0,75 | 5,7 | 21.6 | 55 |
| 3 X 0,75 | 5,7 | 21.6 | 55 |
| 4 G 0,75 | 6,2 | 28.8 | 66 |
| 4 X 0,75 | 6,2 | 28.8 | 66 |
| 5 G 0,75 | 6,7 | 36.0 | 79 |
| 5 X 0,75 | 6,7 | 36.0 | 79 |
| 6 G 0,75 | 7,3 | 43.3 | 104 |
| 7 G 0,75 | 7,3 | 50.4 | 109 |
| 8 G 0,75 | 8,8 | 56.0 | 123 |
| 9 G 0,75 | 9,4 | 63.0 | 144 |
| 10 G 0,75 | 9,6 | 72.0 | 153 |
| 12 G 0,75 | 9,9 | 86.4 | 176 |
| 15 G 0,75 | 10,9 | 108.0 | 211 |
| 18 G 0,75 | 11,7 | 129.6 | 268 |
| 21 G 0,75 | 13.0 | 151.0 | 293 |
| 25 G 0,75 | 13,8 | 180.0 | 374 |
| 40 G 0,75 | 17,3 | 288.0 | 571 |
| 50 G 0,75 | 19,2 | 360.0 | 698 |
| 2 X 1,0 | 5,7 | 19.2 | 53 |
| 3 G 1,0 | 6.0 | 28.8 | 65 |
| 3 X 1,0 | 6.0 | 28.8 | 65 |
| 4 G 1,0 | 6,5 | 38.4 | 79 |
| 4 X 1,0 | 6,5 | 38.4 | 79 |
| 5 G 1,0 | 7,1 | 48.0 | 94 |
| 5 X 1,0 | 7,1 | 48.0 | 94 |
| 6 G 1,0 | 8.0 | 58.0 | 124 |
| 7 G 1,0 | 8.0 | 67.0 | 131 |
| 8 G 1,0 | 9,5 | 77.0 | 146 |
| 10 G 1,0 | 10,2 | 96.0 | 183 |
| 12 G 1,0 | 10,5 | 115.0 | 215 |
| 16 G 1,0 | 11,8 | 154.0 | 282 |
| 18 G 1,0 | 12,7 | 173.0 | 315 |
| 20 G 1,0 | 13,4 | 192.0 | 350 |
| 25 G 1,0 | 14,7 | 240.0 | 449 |
| 2 X 1,5 | 6,3 | 28.8 | 68 |
| 3 G 1,5 | 6,7 | 43.2 | 84 |
| 3 X 1,5 | 6,7 | 43.2 | 84 |
| 4 G 1,5 | 7,2 | 57.6 | 104 |
| 4 X 1,5 | 7,2 | 57.6 | 104 |
| 5 G 1,5 | 8,1 | 72.0 | 128 |
| 5 X 1,5 | 8,1 | 72.0 | 128 |
| 7 G 1,5 | 8,9 | 101.0 | 166 |
| 8 G 1,5 | 10,6 | 115.0 | 205 |
| 12 G 1,5 | 12.0 | 173.0 | 307 |
| 14 G 1,5 | 12,7 | 202.0 | 349 |
| 18 G 1,5 | 14,4 | 259.0 | 465 |
| 25 G 1,5 | 16,9 | 360.0 | 655 |
| ÖLFLEX® CLASSIC 100; U0/U: 450/750 V | |||
| 2 X 2,5 | 8,9 | 48.0 | 128 |
| 3 G 2,5 | 9,6 | 72.0 | 162 |
| 3 X 2,5 | 9,6 | 72.0 | 162 |
| 4 G 2,5 | 10,7 | 96.0 | 203 |
| 5 G 2,5 | 11,8 | 120.0 | 242 |
| 7 G 2,5 | 13,1 | 168.0 | 321 |
| 8 G 2,5 | 15,8 | 192.0 | 385 |
| 2 X 4 | 10,6 | 76.8 | 187 |
| 3 G 4 | 11,4 | 115.2 | 244 |
| 4 G 4 | 12,7 | 154.0 | 297 |
| 5 G 4 | 13,9 | 192.0 | 355 |
| 7 G 4 | 15,4 | 269.0 | 471 |
| 3 G 6 | 12,6 | 173.0 | 318 |
| 4 G 6 | 13,8 | 230.0 | 394 |
| 5 G 6 | 15,6 | 288.0 | 489 |
| 7 G 6 | 17,3 | 403.0 | 651 |
| 3 G 10 | 15,9 | 288.0 | 516 |
| 4 G 10 | 17,6 | 384.0 | 650 |
| 5 G 10 | 19,7 | 480.0 | 792 |
| 7 G 10 | 21,7 | 672.0 | 1058 |
| 3 G 16 | 18,3 | 461.0 | 728 |
| 4 G 16 | 20,4 | 614.0 | 1087 |
| 5 G 16 | 22,8 | 768.0 | 1118 |
| 3 G 25 | 23.0 | 720.0 | 1388 |
| 4 G 25 | 25,4 | 960.0 | 1582 |
| 5 G 25 | 28,5 | 1200.0 | 1771 |
| 3 G 35 | 25,6 | 1008.0 | 1766 |
| 4 G 35 | 28,5 | 1344.0 | 2106 |
| 5 G 35 | 31,9 | 1680.0 | 2635 |
| 3 G 50 | 31.0 | 1440.0 | 2556 |
| 4 G 50 | 34,5 | 1920.0 | 2943 |
| 5 G 50 | 38,6 | 2400.0 | 3936 |
| 3 G 70 | 35,3 | 2016.0 | 3182 |
| 4 G 70 | 39,4 | 2688.0 | 4092 |
| 5 G 70 | 44,1 | 3360.0 | 4800 |
| 3 G 95 | 41,3 | 2736.0 | 4675 |
| 4 G 95 | 45,8 | 3648.0 | 5290 |
| 5 G 95 | 51,6 | 4560.0 | 5600 |
| 3 G 120 | 47,6 | 3456.0 | 5626 |
| 4 G 120 | 53,1 | 4608.0 | 6994 |
| 4 G 185 | 62,8 | 7104.0 | 8300 |
