Quadruplex Secondary Urd, Urd Cable, 600 V, Al/XLPE (ANSI/ICEA S-105-692)
Application
Used for secondary distribution and underground service at 600 V or less. May be used in ducts or direct burial.
Standards
ICEA S-105-692
600 V Single Layer Thermoset Insulated Utility Underground Distribution Cable.
UL 854
Service-Entrance Cables.
Specifications
Maximum operating voltage: ? 600 volts
Maximum conductor operation temperatures: ? 90 °C wet and dry

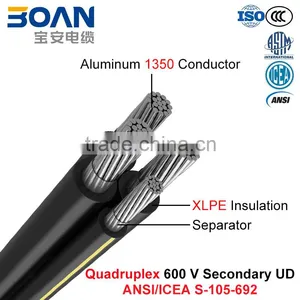

Engineering Information
1. Conductor: Aluminum alloy 1350-H19, compressed Class B stranding, or unilay-compressed per ASTM B231. On request, AA-8000 series aluminum alloy per ASTM B800 and B801 or copper conductors.
2. Separator: A suitable opaque tape, as required.
3. Insulation:
Phase conductor: Black thermoset cross-linked polyethylene (XLPE).
Neutral conductor: Black thermoset cross-linked polyethylene (XLPE), with three yellow extruded stripes.

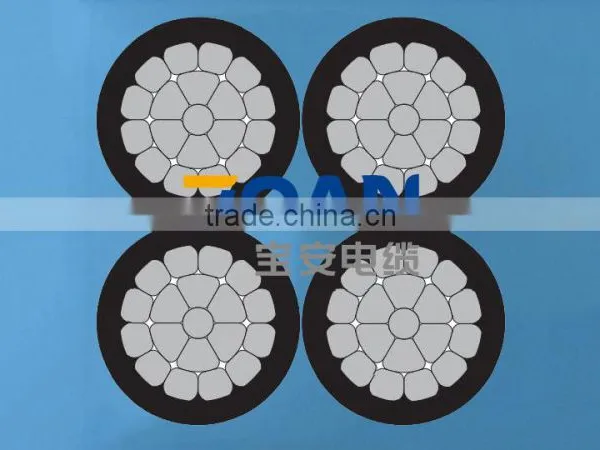

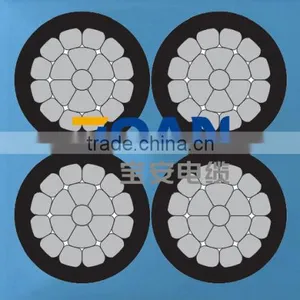

Quadruplex: Three black phase insulated conductors (A, B & C) and one neutral insulated conductor cabled together
|
Phase Conductor |
Neutral Conductor | Cable OD | XLPE Insulation | ||||||
| Code Word | Size | Number of Stands | Insulation Thickness | Size | Number of Stands | Insulation Thickness | Single Phase | Complete Cable | Net Weight |
| AWG or kcmil | mil | AWG or kcmil | mil | in | in | lb/kft | |||
| Wake Forest | 4/0 | 19 | 80 | 2/0 | 19 | 80 | 0.68 | 1.64 | 1014 |
| lippery Rock | 350 | 37 | 95 | 4/0 | 19 | 80 | 0.86 | 2.08 | 1596 |
