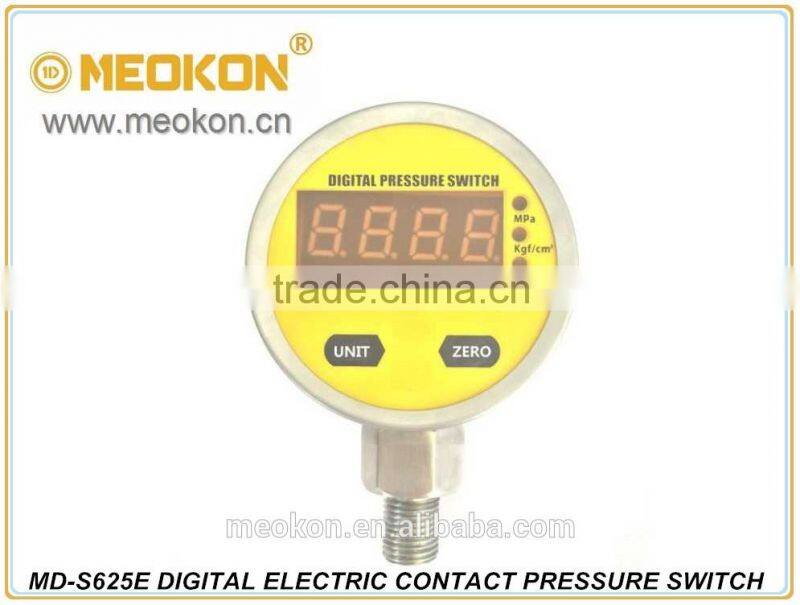

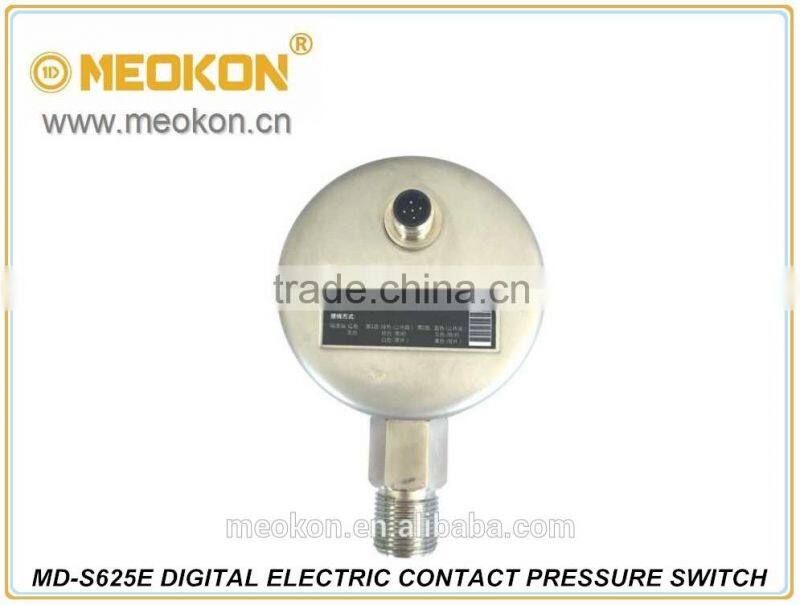

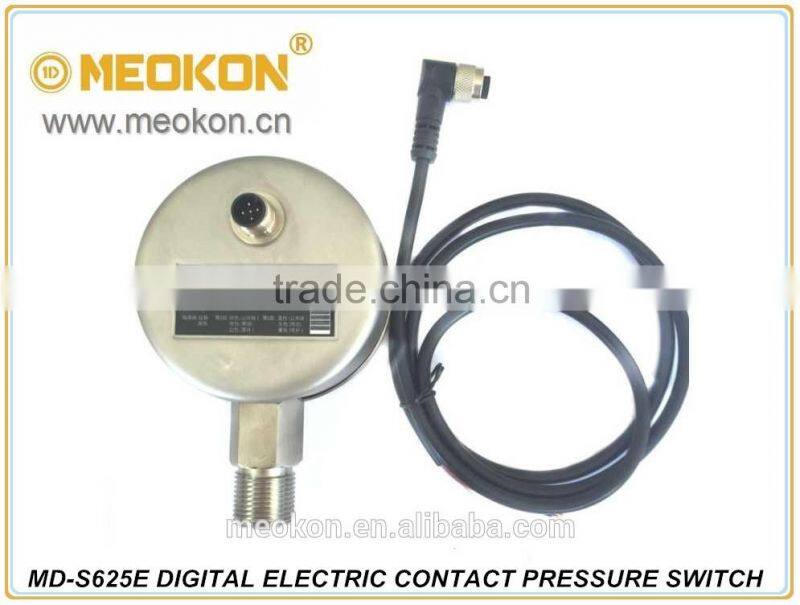

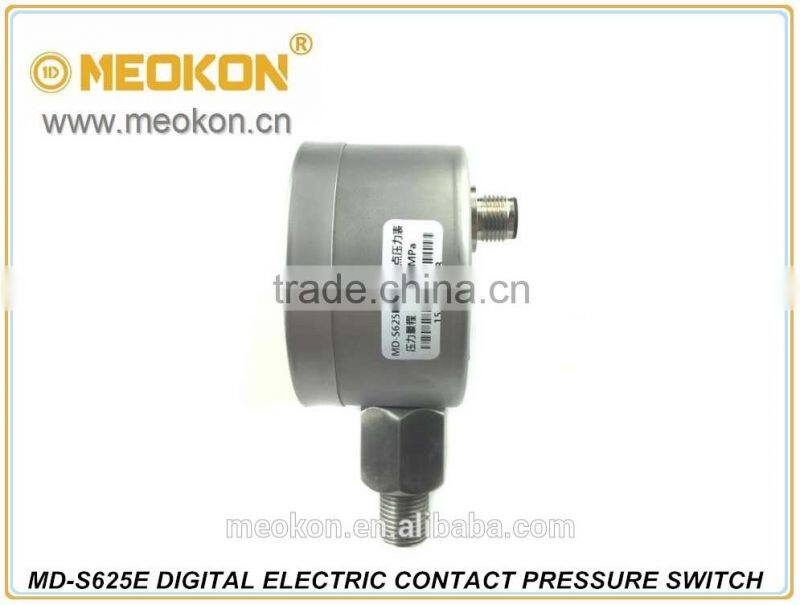

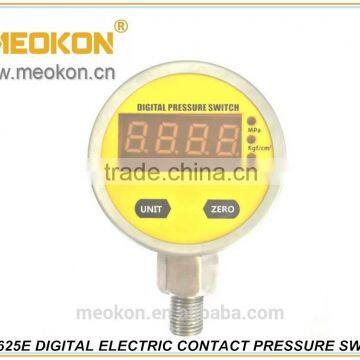

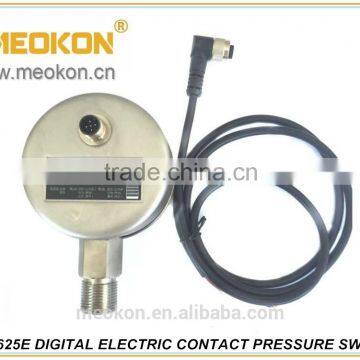

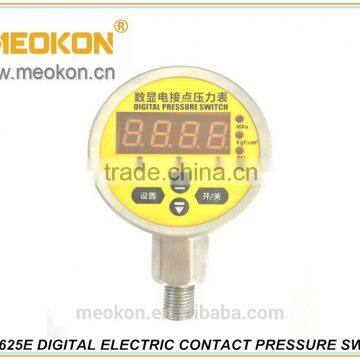

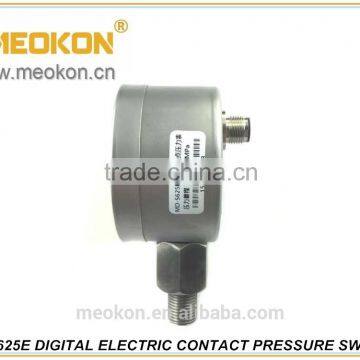

Help CenterMD-S625E High Precision Water, Oil, Gas Intelligent Digital Electric Contact Pressure Switch Most Popular
Related Products
-
MD-S800E Radial Direction Mounting Series Water, Oil, Gas Intelligent Digital Pressure SwitchUS$ 1 - 100MOQ: 1 Piece -
MD-S900E Radial Mounting High Precision Water, Oil, Gas Intelligent Digital Pressure SwitchUS$ 1 - 100MOQ: 1 Piece
-
MD-S910 High Precision Water, Oil, Gas Intelligent Digital Pressure SwitchUS$ 1 - 100MOQ: 1 Piece
-
MD-S800Z Axial Direction Mounting Water, Oil, Gas Intelligent Digital Pressure SwitchUS$ 1 - 100MOQ: 1 Piece
-
MD-S900Z Axial Mounting High Precision Water, Oil, Gas Intelligent Digital Pressure SwitchUS$ 1 - 100MOQ: 1 Piece

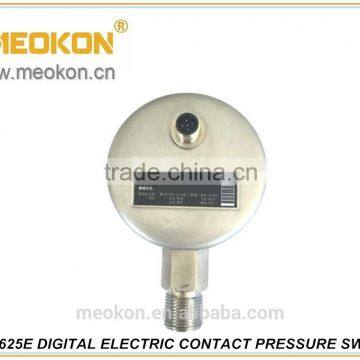

MD-S625E are high precision digital electro connecting pressure gauges, setting pressure measurement, pressure display, control in one professional unit. “one key to zero clearing”and “Three pressure units switchable”are available.
We pay more attention to the circuit stability because of considering the operation environments with strong anti-interference capacity, electronic protection, surge protection.The series electro connecting pressure gauge will replace the mechanical electro connecting pressure gauge to adapt to pressure sharp variation, frequently use, strong vibration occasion. It has followed features: display clearly, long serving time, easy operation, good shock resistance.
FEATURES:
- 4 digit LED showing pressure in real time
- Three pressure units available, one key to zero clearing
- High precision; long serving time; good shock and impact resistance
- Connecting mode the same as mechanical electro connecting pressure gauge
SPECIFICATION
| Range |
General Range: 0-0.2...1...1.6...5...10...25...40...60...160Mpa Micro Range:0-5...10...25...40...60...100Kpa Negative Range:-100 ~0Kpa(-0.1 ~0Mpa) |
| Over Pressure | Range≥10Mpa 150%; Range<10Mpa 200% |
| Acc. | ±0.5%FS |
| Alarm Point | Alarm point be set discretionarily within the range. |
Alarm Type |
Double relays output signal(NO/NC) |
| Operating Temperature | -20~ 80℃ |
| Compensation Temperature | -10 ~70 ℃ |
| Electric Protection | Reverse protection, anti-electromagnetic interference |
| Sampling Frequency | 5 times/sec |
| Measurement Medium | Gas, water, oil |
| Pressure Connection | M20*1.5, G1/4, G1/2, NPT1/2, NPT1/4 |
| Connector Material | 304SS |
| Shell | 304SS |
| Supply | 24VDC, 220VAC, 380VAC |
| Weight | 0.35Kg |
APPLICATION
Medical equipment
Machine automation
Source and water treatment system
- Testing jig
Hydraumatic and pneumatic system
Agricultural machinery
Pump&compressor
Engineering machinery

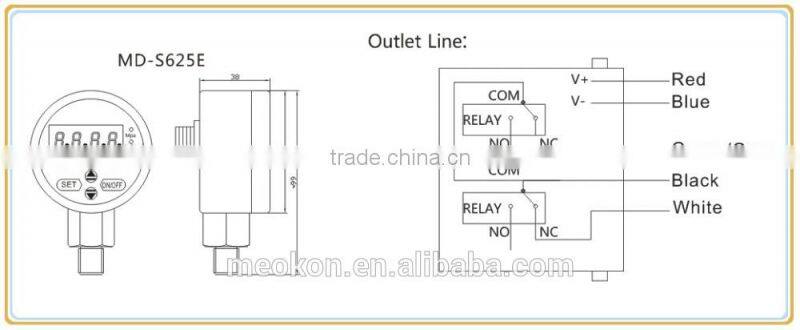

DIMENSION
Standard pressure indicator transmitter export packing or follow the customer' requirements
SHIPPING:
- We will provide considerate and comprehensive pre-sales services and after-sales services .
- OEM service, customer's logo are available.
- We can accept consumers order with special requirements.
- All the products have one year warranty.
- We have a specialized team of engineers with sophisticate knowledge and professional skills engaged in presale and after sale services. 24 hours technicial support by e-mail.
MEOKON Sensing Technology (Shanghai) Co., Ltd is a high and new technology enterprise. The leading products: digital pressure gauge, digital pressure switch, intelligent pressure controller, pressure sensor, pressure transmitter, the transmitting instrument. It is a set R&D, design, production and sale in one professional unit.
We have more than 100 types specifications of sensors and transmitting instruments. According to customers' requirements, different kinds of sensors, display control appliances and measuring control systems can be customized. MEOKON' products are mainly used in these fields: air compressor, automobile professions, spurt & hydraulic pressure, water supply system, devoting to a wide range of sensor, transmitting instrument, measuring and controlling appliance, the date acquisition system.
Quality control is rigorously carried out through the whole production process. Our products are qualified for industrial standards, such as CE,CPA. Others, we have a good staff group and enterprise culture: sports meeting, cultural shows, parties, tourism and other activities.
MEOKON Sensing Technology (Shanghai) Co, Ltd sincerely look forward to your cooperation!
