Help CenterMD-S800E Radial Direction Mounting Series Water, Oil, Gas Intelligent Digital Pressure Switch
Related Products
-
MD-S900E Radial Mounting High Precision Water, Oil, Gas Intelligent Digital Pressure SwitchUS$ 1 - 100MOQ: 1 Piece -
MD-S910 High Precision Water, Oil, Gas Intelligent Digital Pressure SwitchUS$ 1 - 100MOQ: 1 Piece
-
MD-S800Z Axial Direction Mounting Water, Oil, Gas Intelligent Digital Pressure SwitchUS$ 1 - 100MOQ: 1 Piece
-
MD-S900Z Axial Mounting High Precision Water, Oil, Gas Intelligent Digital Pressure SwitchUS$ 1 - 100MOQ: 1 Piece
-
MD-S800V Negative, Vacuum Water, Oil, Gas Intelligent Digital Pressure Switch Quality ChoiceUS$ 1 - 100MOQ: 1 Piece

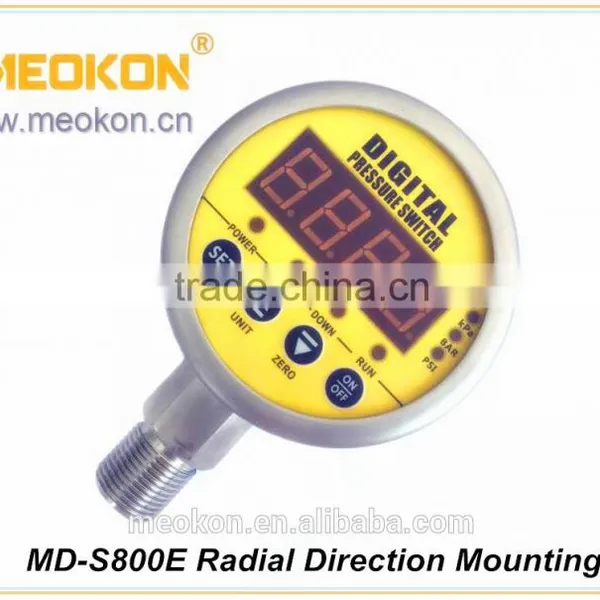

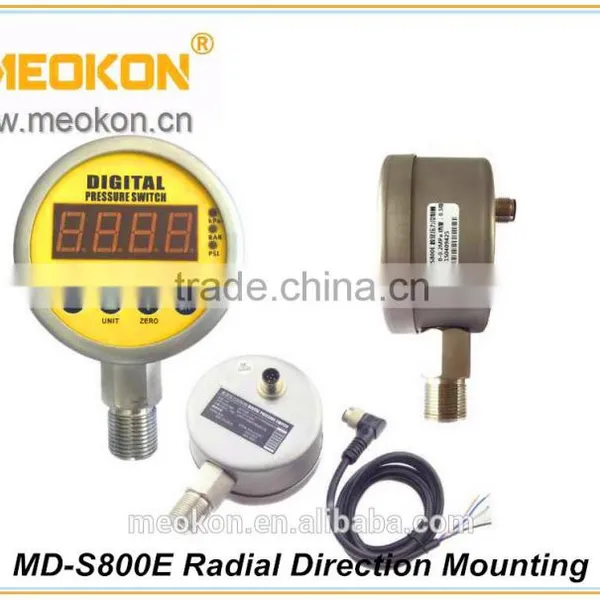

MD-S800E is a intelligent digital pressure controller setting pressure measurement, pressure display, control in one professional unit. It has followed features: easy operation, good shock resistance, high precision, control range adjustable, long-term stability.
MD-S800 has the followed functions: delay control, reverse control, three pressure units to change, one key to error clearing. It is widely used in hydraumatic and pneumatic system, electromechanical integration equipment, engineering machinery, automated machinery.

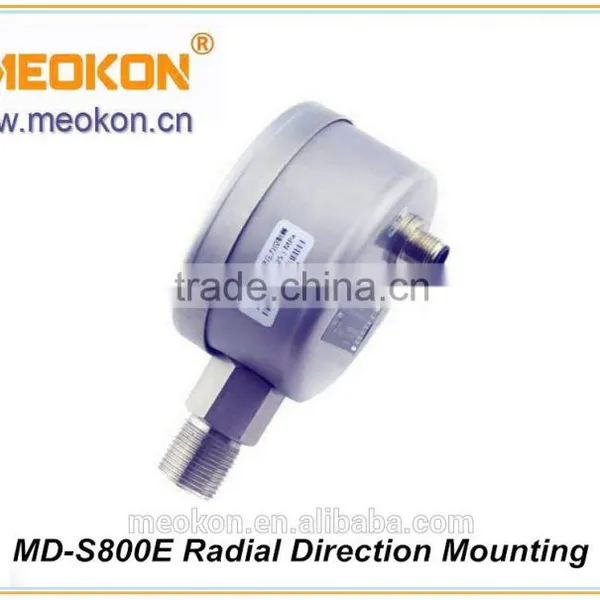

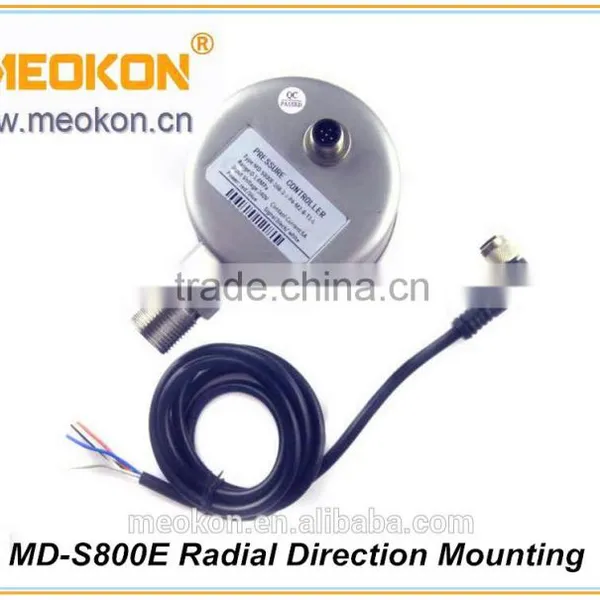

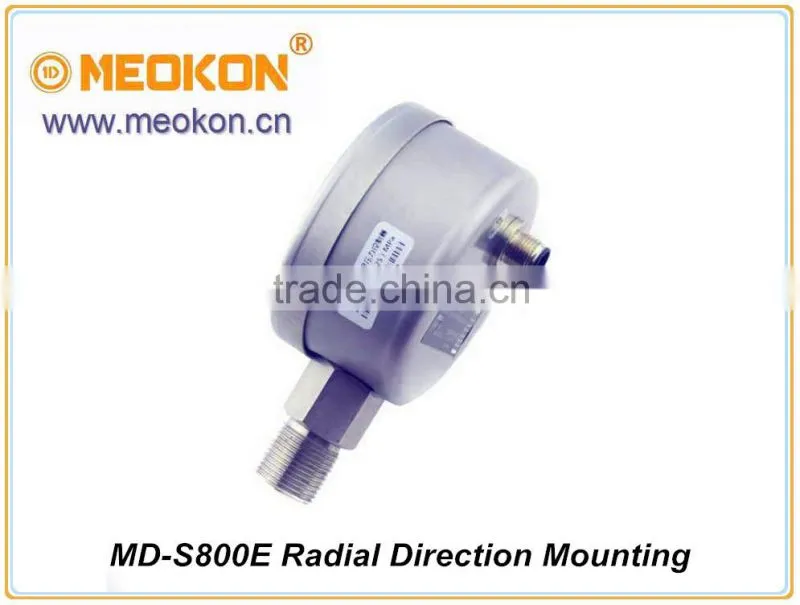

The shell and the connector use stainless steel. The sensor uses stainless steel chips. The product is widely used in high pressure , hydraulic pressure situations.
FEATURES:

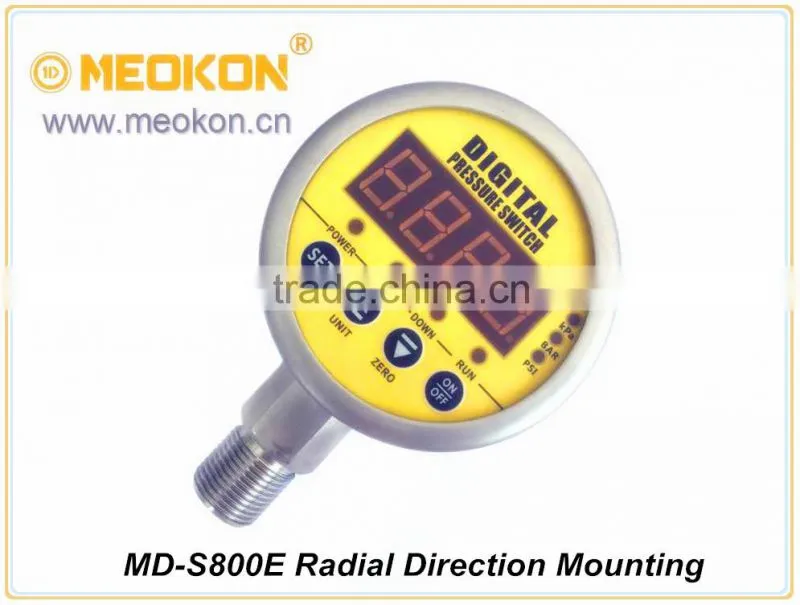

- 4 digital LED showing the pressure accurately in real time
- Three pressure units available ( Psi, Kg/cm2 , Mpa)
- Relay signal output, bounds can be adjusted
- Delay control, password protection, reverse control
SPECIFICATION
| Range | 0 ~1...10...16...25...50...100...250...400...600...1000Bar |
| Over Pressure | Range≥100Bar 150%; Range<100Bar 200% |
| Acc. | ±0.5%FS |
| Alarm Point | Alarm point be set discretionarily within the range. |
Alarm Type |
relay signal |
| Long-term Stability | Typical: ±0.2%FS/year |
| Operating Temperature | -20~ 80℃ |
| Compensation Temperature | -10 ~60 ℃ |
| Electric Protection | Short-circuit protection, reverse protection, anti-electromagnetic interference |
| Sampling Frequency | 5 times/sec |
| Measurement Medium | Gas, water, oil |
| Pressure Connection | M20*1.5, G1/4, G1/2, NPT1/2, NPT1/4 |
| Connector Material | 304SS |
| Shell | 304SS |
| Supply | 12VDC, 24VDC, 220VAC, 380VAC |
| Weight | 0.35Kg |
APPLICATION
- Machine Automation
- Engineering Machinery
- Electromechanical Integration Equipment
- Hydraulic System

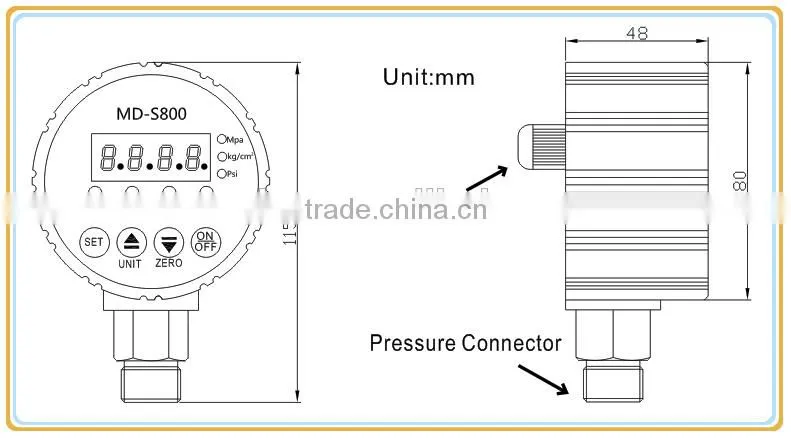

DIMENSION
Standard pressure indicator transmitter export packing or follow the customer' requirements
SHIPPING:
- We will provide considerate and comprehensive pre-sales services and after-sales services .
- OEM service, customer's logo are available.
- We can accept consumers order with special requirements.
- All the products have one year warranty.
- We have a specialized team of engineers with sophisticate knowledge and professional skills engaged in presale and after sale services. 24 hours technicial support by e-mail.
MEOKON Sensing Technology (Shanghai) Co., Ltd is a high and new technology enterprise. The leading products: digital pressure gauge, digital pressure switch, intelligent pressure controller, pressure sensor, pressure transmitter, the transmitting instrument. It is a set R&D, design, production and sale in one professional unit.
We have more than 100 types specifications of sensors and transmitting instruments. According to customers' requirements, different kinds of sensors, display control appliances and measuring control systems can be customized. MEOKON' products are mainly used in these fields: air compressor, automobile professions, spurt & hydraulic pressure, water supply system, devoting to a wide range of sensor, transmitting instrument, measuring and controlling appliance, the date acquisition system.
Quality control is rigorously carried out through the whole production process. Our products are qualified for industrial standards, such as CE,CPA. Others, we have a good staff group and enterprise culture: sports meeting, cultural shows, parties, tourism and other activities.
MEOKON Sensing Technology (Shanghai) Co, Ltd sincerely look forward to your cooperation!
