Help CenterMD-S900Z Axial Mounting High Precision Water, Oil, Gas Intelligent Digital Pressure Switch
Related Products
-
MD-S800V Negative, Vacuum Water, Oil, Gas Intelligent Digital Pressure Switch Quality ChoiceUS$ 1 - 100MOQ: 1 Piece -
MD-SW 0-6Bar 0-10Bar 220V AUTOMATIC DIGITAL WATER-PUMP SWITCHUS$ 1 - 100MOQ: 10 Pieces
-
MD-S800E Radial Direction Mounting Series Water, Oil, Gas Intelligent Digital Pressure SwitchUS$ 1 - 100MOQ: 1 Piece
-
MD-S900E Radial Mounting High Precision Water, Oil, Gas Intelligent Digital Pressure SwitchUS$ 1 - 100MOQ: 1 Piece
-
MD-S910 High Precision Water, Oil, Gas Intelligent Digital Pressure SwitchUS$ 1 - 100MOQ: 1 Piece

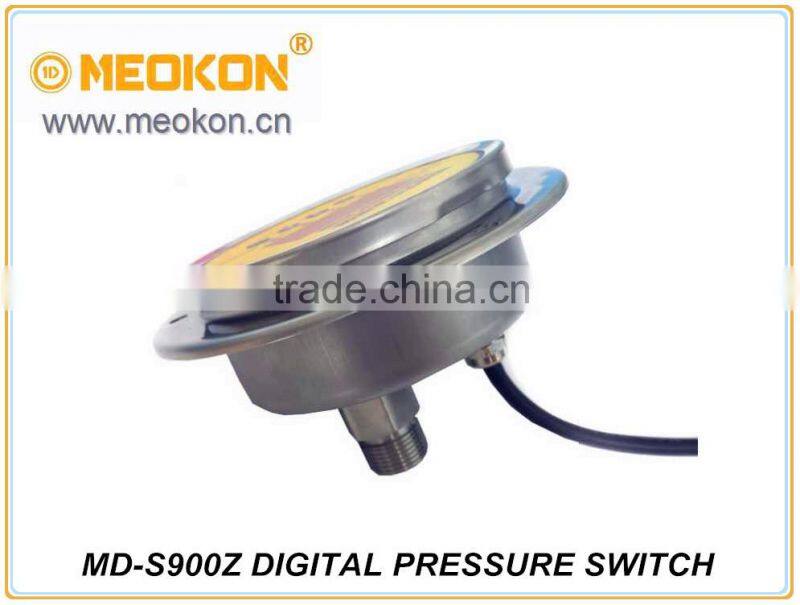

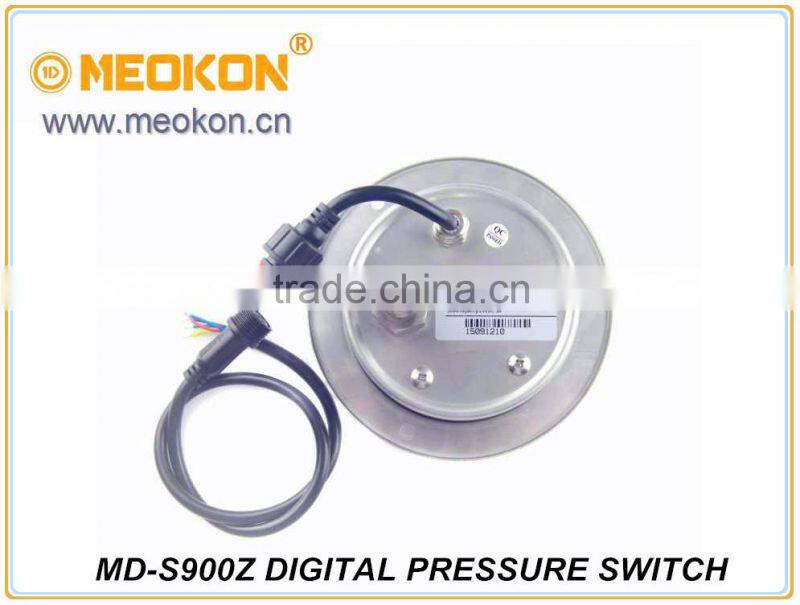

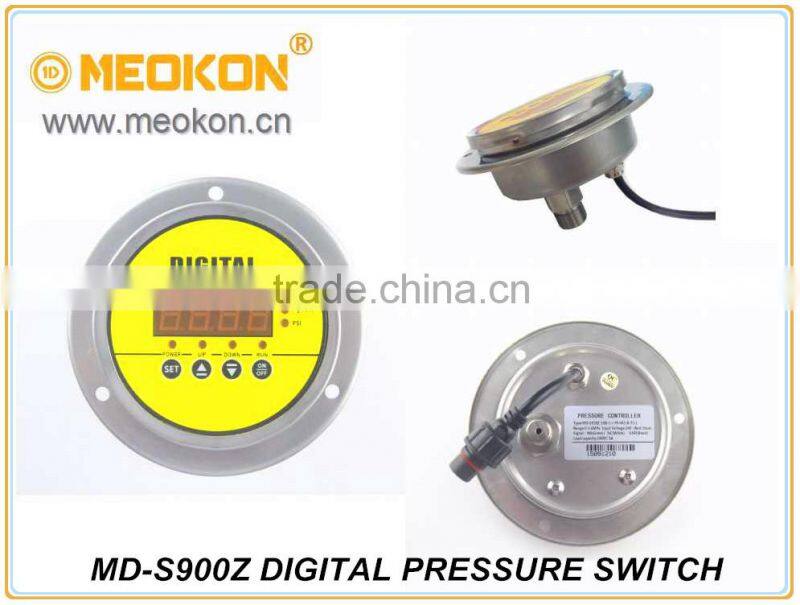

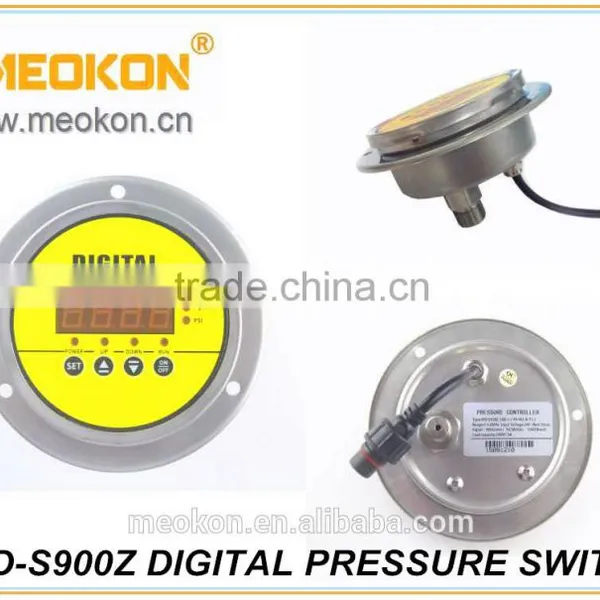

MD-S900Z is a intelligent digital pressure controller setting pressure measurement, pressure display, control in one professional unit. It has followed features: easy operation, good shock resistance, high precision, control range adjustable, long-term stability.
MD-S900Z has the followed functions: delay control, reverse control, three pressure units to change, one key to error clearing. It is widely used in water supply of building, air compressor, automatic machinery.

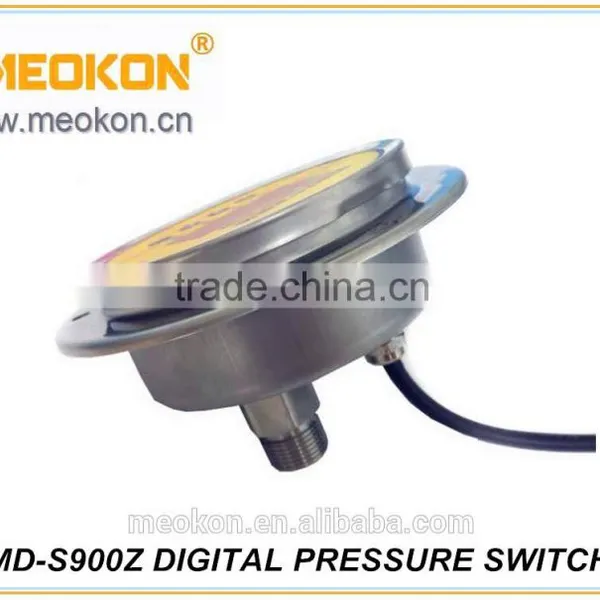

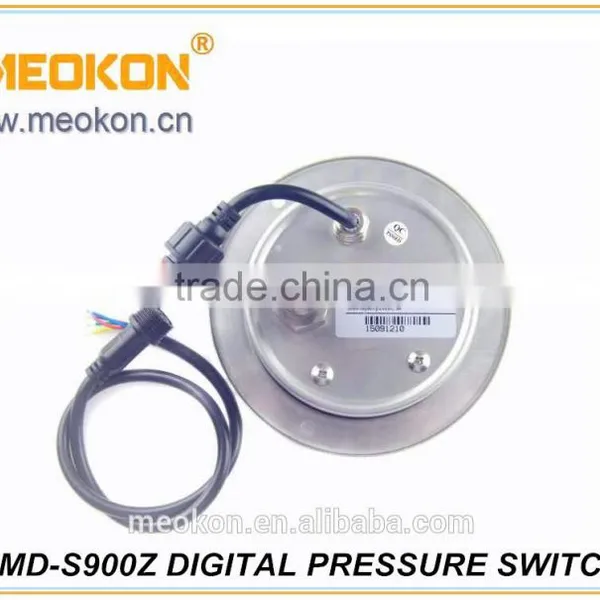

The shell uses 100mm stainless steel. The pressure connector is stainless steel. Radial and axial mounting are available. The product uses imported sensor to keep it good quality.
FEATURES:

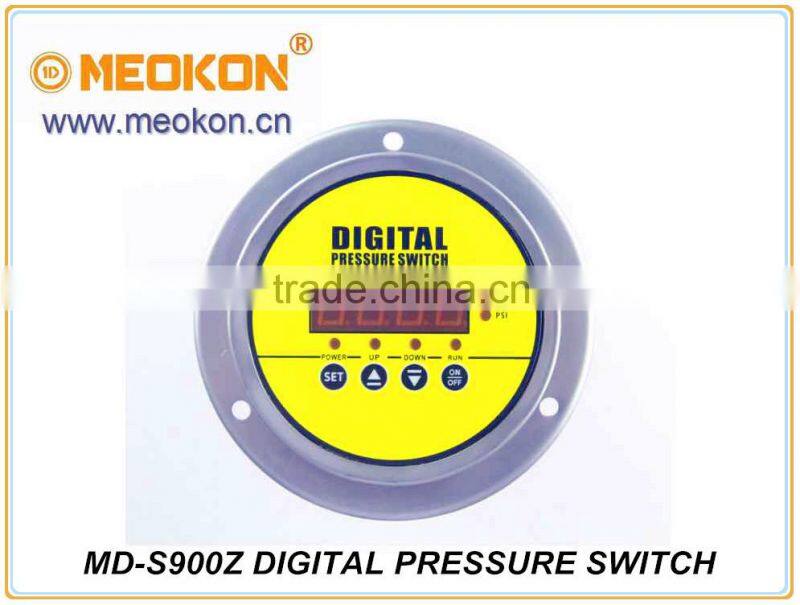

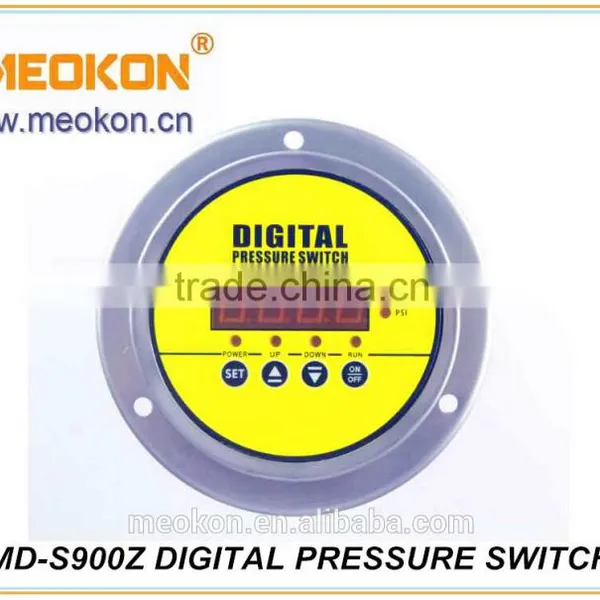

- 100mm stainless steel dial, 4 digit LED
- Three pressure units available ( Psi, Kg/cm2 , Mpa)
- Radial mounting and axial mounting are available.

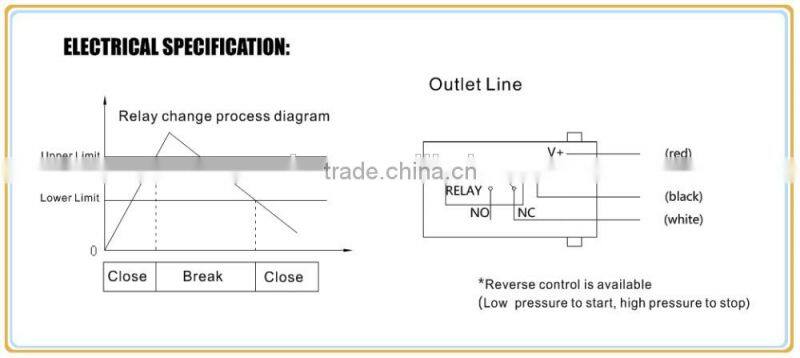

- Delay control, reverse control, pressure leakage protection, passwords protection
SPECIFICATION
| Range | 0 ~0.2...0.6...1.0...1.6...5...10...25...40...60Mpa |
| Over Pressure | 150% |
| Acc. | ±0.5%FS |
| Alarm Point | Alarm point be set discretionarily within the range. |
Alarm Type |
Relay signal |
| Long-term Stability | Typical: ±0.5%FS/year |
| Operating Temperature | -20~ 80℃ |
| Compensation Temperature | -10 ~60 ℃ |
| Electric Protection | Short-circuit protection, reverse protection, anti-electromagnetic interference |
| Sampling Frequency | 5 times/sec |
| Measurement Medium | Gas, water, oil |
| Pressure Connection | M20*1.5, G1/4, G1/2, NPT1/2, NPT1/4 |
| Connector Material | 304SS |
| Shell | 304SS |
| Supply | 24VDC, 220VAC, 380VAC |
| Weight | 0.35Kg |
APPLICATION
- Pump Control
- Air Compressor
- Automatic Machinery

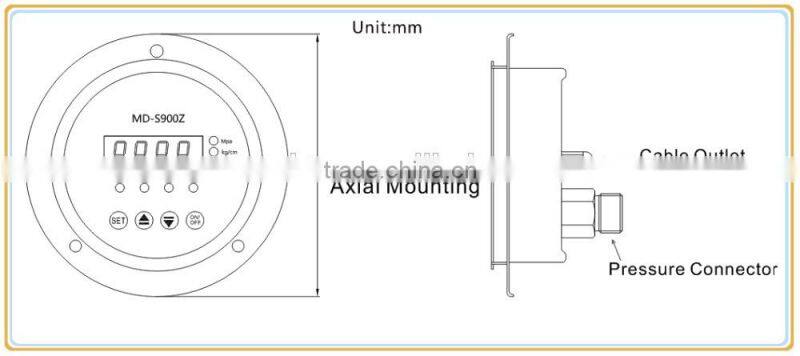

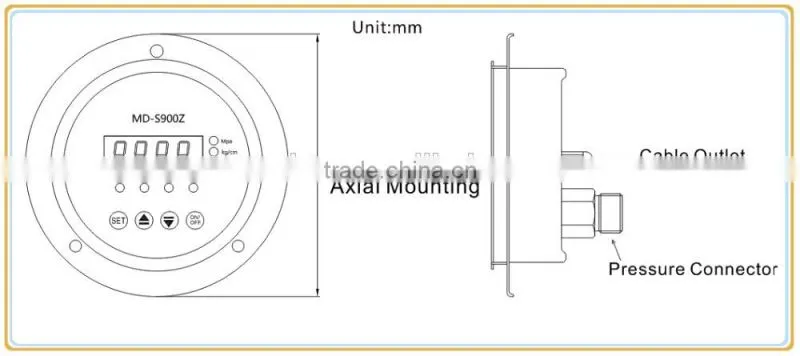

DIMENSION
Standard pressure indicator transmitter export packing or follow the customer' requirements
SHIPPING:
- We will provide considerate and comprehensive pre-sales services and after-sales services .
- OEM service, customer's logo are available.
- We can accept consumers order with special requirements.
- All the products have one year warranty.
- We have a specialized team of engineers with sophisticate knowledge and professional skills engaged in presale and after sale services. 24 hours technicial support by e-mail.
MEOKON Sensing Technology (Shanghai) Co., Ltd is a high and new technology enterprise. The leading products: digital pressure gauge, digital pressure switch, intelligent pressure controller, pressure sensor, pressure transmitter, the transmitting instrument. It is a set R&D, design, production and sale in one professional unit.
We have more than 100 types specifications of sensors and transmitting instruments. According to customers' requirements, different kinds of sensors, display control appliances and measuring control systems can be customized. MEOKON' products are mainly used in these fields: air compressor, automobile professions, spurt & hydraulic pressure, water supply system, devoting to a wide range of sensor, transmitting instrument, measuring and controlling appliance, the date acquisition system.
Quality control is rigorously carried out through the whole production process. Our products are qualified for industrial standards, such as CE,CPA. Others, we have a good staff group and enterprise culture: sports meeting, cultural shows, parties, tourism and other activities.
MEOKON Sensing Technology (Shanghai) Co, Ltd sincerely look forward to your cooperation!

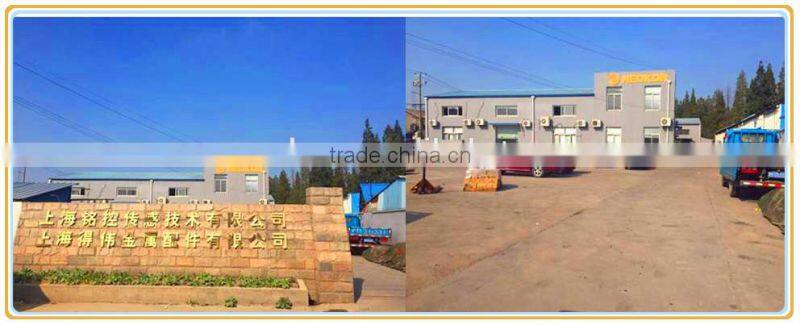

COMPANY LOCATION

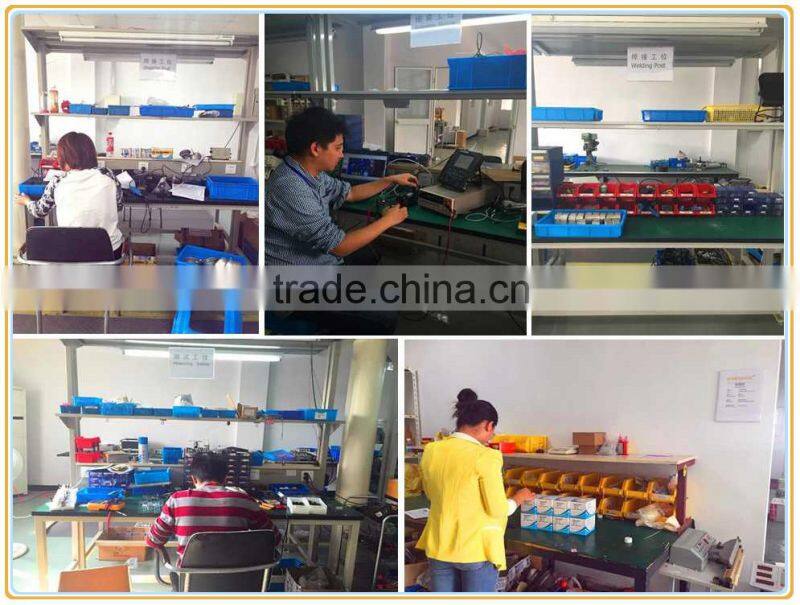

PRODUCTION WORKSHOP

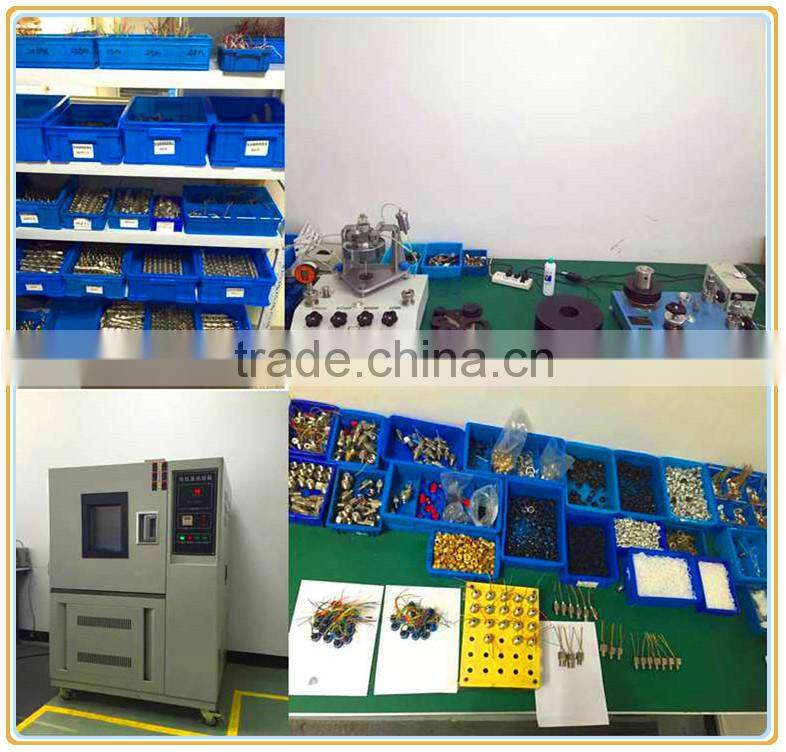

LABORATORY

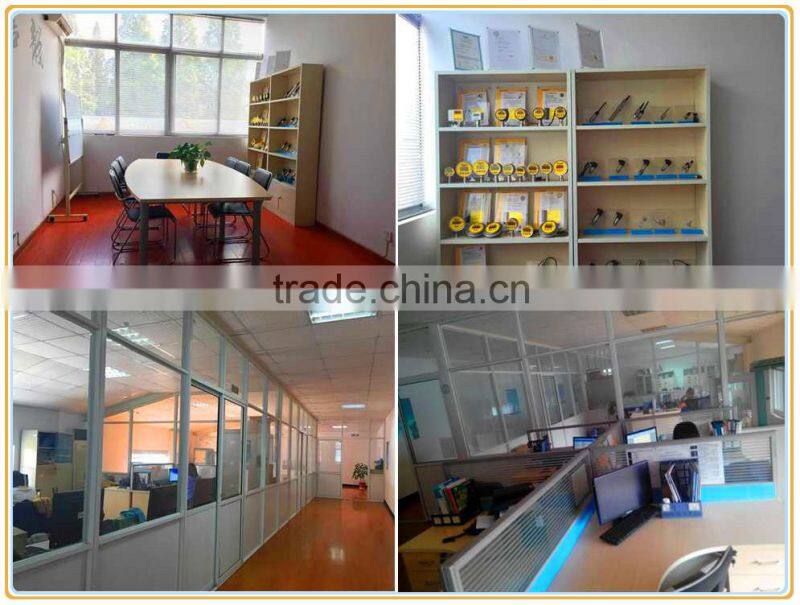

CONFERENCE ROOM & OFFICE AREA

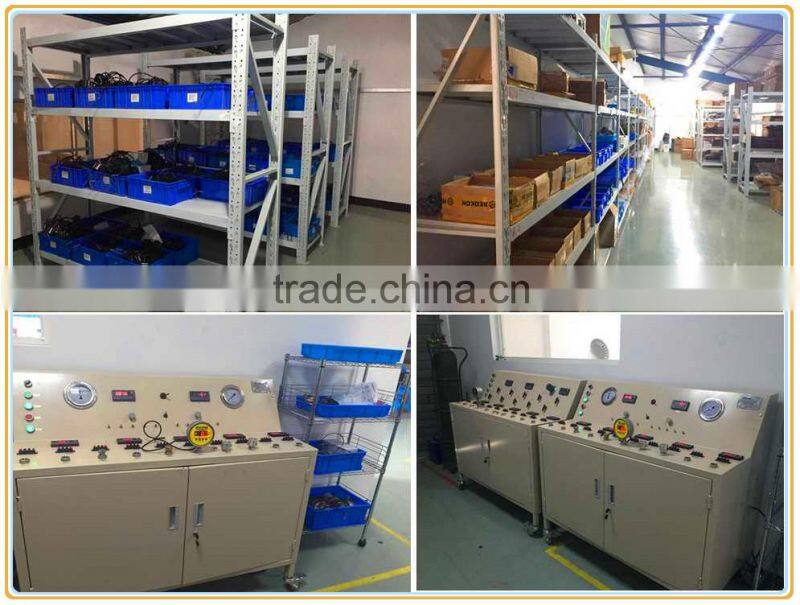

WAREHOUSE & QUALITY INSPECTION AREA
Certificate
