Specifications
Magnetic separator1.Simple structure and easy to maintain
2.Short magnetic circuit
3.Little magnetic flux leakage

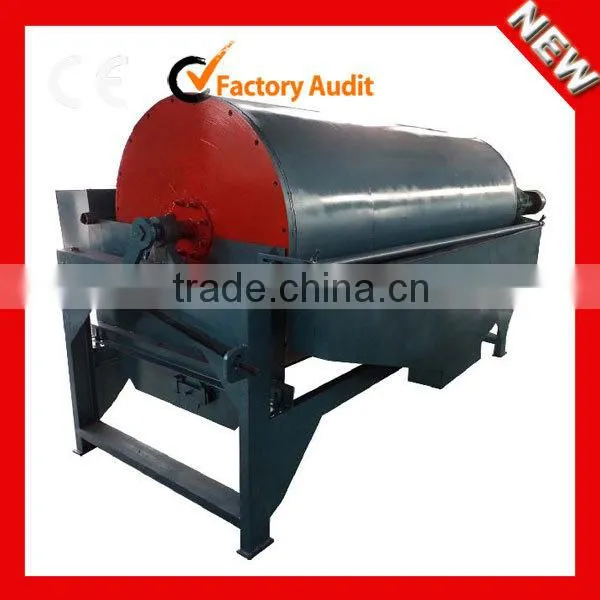

Hot sale mineral magnetic separator
Introduction of Magnetic Separator:
The Magnetic Separator is used for separating crude mineral by different magnetic rigidities. The machine works under the magnetic force and machine force. Magnetic Separators are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications. The heart of each separator is the magnetic system with its unique design, which has a proven record of high efficiency. The Magnetic Separators are available in cyclic design with process vessel Φ220 ~Φ3050 mm.
Application of Magnetic Separator:
Magnetic Separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, limonite, and tantalum-niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nepheline. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix.
Features of Magnetic Separator:
Simple structure and easy to maintain
Short magnetic circuit
Little magnetic flux leakage
High magnetic intensity, low energy consumption
Fine beneficiating results
Specification
|
Model |
Shell Diameter (mm) |
Shell Length (mm) |
Shell Rotation Speed(r/min) |
Feeding Size (mm) |
Capacity (t/h) |
Power (kw) |
CTB6012 |
600 |
1200 |
Less than 35 |
2-0 |
10-20 |
1.5 |
CTB6018 |
600 |
1800 |
Less than 35 |
2-0 |
15-30 |
2.2 |
CTB7518 |
750 |
1800 |
Less than 35 |
2-0 |
20-45 |
2.2 |
CTB9018 |
900 |
1800 |
Less than 35 |
3-0 |
40-60 |
3 |
CTB9021 |
900 |
2100 |
Less than 35 |
3-0 |
45-60 |
3 |
CTB9024 |
900 |
2400 |
Less than 28 |
3-0 |
45-70 |
4 |
CTB1018 |
1050 |
1800 |
Less than 20 |
3-0 |
50-75 |
5.5 |
CTB1021 |
1050 |
2100 |
Less than 20 |
3-0 |
50-100 |
5.5 |
CTB1024 |
1050 |
2400 |
Less than 20 |
3-0 |
60-120 |
5.5 |
CTB1218 |
1200 |
1800 |
Less than 18 |
3-0 |
80-140 |
5.5 |
CTB1224 |
1200 |
2400 |
Less than 18 |
3-0 |
85-180 |
7.5 |
CTB1230 |
1200 |
3000 |
Less than 18 |
3-0 |
100-180 |
7.5 |
