GSW, Guy Wire, Stay Wire, Zinc-Coated Steel Wire (IEC 60888)
US$ 0.1 - 5
MOQ: 5000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Boan or OEM
Model Number:
GSW
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ACAR, Aluminum Conductor Aluminum Reinforced (ASTM B 524)US$ 1.19 - 11MOQ: 1000 Meters -
AAC Conductor, All Aluminium Conductor (JIS C 3109)US$ 0.15 - 11MOQ: 500 Meters
-
AAAC Conductor, All Aluminium Alloy Conductor (DIN 48201-6)US$ 0.25 - 15MOQ: 1000 Meters
-
ACSR, Aluminium Conductors Steel Reinforced (JIS C 3110)US$ 1 - 5MOQ: 500 Meters
-
AAC Conductor, Type A Wire, All Aluminium Conductor (GOST 839-80)US$ 0.3 - 20MOQ: 500 Meters
Place of Origin
Jiangsu, China
Brand Name
Boan or OEM
Model Number
GSW
Insulation Material
Other, Bare cable
Type
Low Voltage
Application
Overhead
Conductor Material
Other
Jacket
Other, Bare cable
Product Description

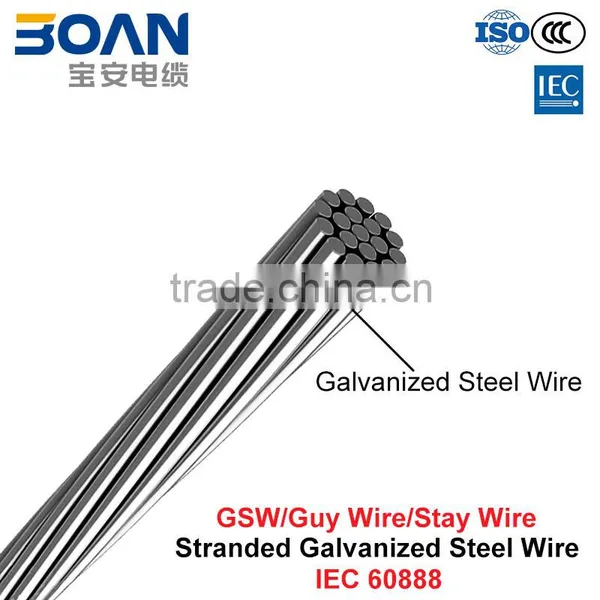

Gsw, Zinc-Coated/Galvanized Steel Wire Stranded Conductor (IEC 60888)
1. Standard
ASTM A475: Standard Specification for Zinc-Coated Steel Wire Strand ASTM B 498: Standard Specification for Zinc-Coated (Galvanized) Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR) BS183: Specification for General Purpose Galvanized Steel Wire Strand BS 50189: Conductors ofr overhead lines-Zinc coated steel wires IEC 60888: Zinc-coated steel wires for stranded conductors DIN 48200: Wires for stranded conductors JIS G 3537: Zinc-coated steel wire strands AS 1222.1: Steel conductors and stays—Bare overhead
2. Application
Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable, fields and pastures division, animal containment.
3. Specification:
See the table below.
| Nominal wire diameter(mm) | Diameter tolerance(mm) | Minimum stress at 1% extension(MPa) | Minimum ultimate tensile stress (MPa) | Minimum ultimate elongation(%)* | Mandrel diameter for wrapping test(X× OD) | ||
| Over | Up to and including | ||||||
| Regular Strength Steel Wire | Class 1 zinc coating | ||||||
| 1.24 | 2.25 | ±0.03 | 1170 | 1340 | 3,0 | 1 | |
| 2.25 | 2.75 | ±0.04 | 1140 | 1310 | 3.0 | 1 | |
| 2.75 | 3.00 | ±0,05 | 1140 | 1310 | 3.5 | 1 | |
| 3.00 | 3.50 | ±0.05 | 1100 | 1290 | 3.5 | 1 | |
| 3.50 | 4,25 | ±0.06 | 1100 | 1290 | 4.0 | 1 | |
| 4.25 | 4.75 | ±0.06 | 1100 | 1290 | 4.0 | 1 | |
| 4.75 | 5.50 | ±0.07 | 1100 | 1290 | 4,0 | 1 | |
| Class 2 zinc coating | |||||||
| 1.24 | 2.25 | ±0.05 | 1100 | 1240 | 4,0 | 1 | |
| 2.25 | 2.75 | ±0.06 | 1070 | 1210 | 4.0 | 1 | |
| 2.75 | 3.00 | ±0.06 | 1070 | 1210 | 4,0 | 1 | |
| 3.00 | 3.50 | ±0.07 | 1000 | 1190 | 4,0 | 1 | |
| 3.50 | 4.25 | ±0.09 | 1000 | 1190 | 4.0 | 1 | |
| 4.25 | 4.75 | ±0.10 | 1000 | 1190 | 4.0 | 1 | |
| 4.75 | 5.50 | ±0.11 | 1000 | 1190 | 4.0 | 1 | |
| High Steel Wire | Class 1 zinc coating | ||||||
| 1.24 | 2.25 | ±0.03 | 1310 | 1450 | 2.50 | 3 | |
| 2.25 | 2.75 | ±0.04 | 1280 | 1410 | 2.50 | 3 | |
| 2.75 | 3.00 | ±0,05 | 1280 | 1410 | 3.00 | 4 | |
| 3.00 | 3.50 | ±0.05 | 1240 | 1410 | 3.00 | 4 | |
| 3.50 | 4,25 | ±0.06 | 1170 | 1380 | 3.00 | 4 | |
| 4.25 | 4.75 | ±0.06 | 1170 | 1380 | 3.00 | 4 | |
| 4.75 | 5.50 | ±0.07 | 1170 | 1380 | 3.00 | 4 | |
| Class 2 zinc coating | |||||||
| 1.24 | 2.25 | ±0.05 | 1240 | 1380 | 2.50 | 3 | |
| 2.25 | 2.75 | ±0.06 | 1210 | 1340 | 2.50 | 3 | |
| 2.75 | 3.00 | ±0.06 | 1210 | 1340 | 3.00 | 4 | |
| 3.00 | 3.50 | ±0.07 | 1170 | 1340 | 3.00 | 4 | |
| 3.50 | 4.25 | ±0.09 | 1100 | 1280 | 3.00 | 4 | |
| 4.25 | 4.75 | ±0.10 | 1100 | 1280 | 3.00 | 4 | |
| 4.75 | 5.50 | ±0.11 | 1100 | 1280 | 3.00 | 4 | |
| Extra-high Steel Wire | Class 1 zinc coating | ||||||
| 1.24 | 2.25 | ±0.03 | 1450 | 1620 | 2.0 | 4 | |
| 2.25 | 2.75 | ±0.04 | 1410 | 1590 | 2.0 | 4 | |
| 2.75 | 3.00 | ±0,05 | 1410 | 1590 | 2.5 | 5 | |
| 3.00 | 3.50 | ±0.05 | 1380 | 1550 | 2.5 | 5 | |
| 3.50 | 4,25 | ±0.06 | 1340 | 1520 | 2.5 | 5 | |
| 4.25 | 4.75 | ±0.06 | 1340 | 1520 | 2.5 | 5 | |
| 4.75 | 5.50 | ±0.07 | 1270 | 1500 | 2.5 | 5 | |
