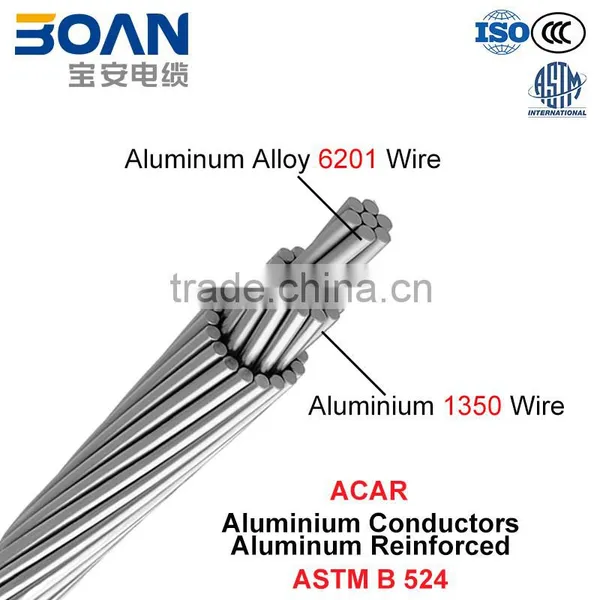

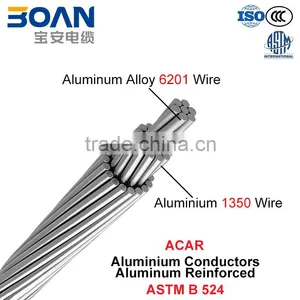

  ACAR, Aluminum Conductor Aluminum Reinforced (ASTM B 524)
Boan Cable offers ACAR concentric-lay-stranded conductors in single and multi-layer conductor designs to optimize the strength and the current carrying capacity for transmission and distribution projects for which AAC conductors do not provide the required strength and AAAC or ACSR conductors are either not required or suitable.

Construction
ACAR is a concentric-laystranded conductor made from round aluminum 1350-H19 (extra
Hard) wires and round aluminum 6201-T81 wires. ACAR conductors are available in single and multi-layer constructions. These choices provide the necessary strength and the current carrying capacity for given applications. For equal weight, ACAR conductors offer higher strength and ampacity than ACSR conductors.
Typically, 1350-H19 wires are stranded around a core of 6201- T81 wires. However, in some designs 1350-H19 and 6201-T81 wires are stranded in the same layer.

Specifications
ACAR conductors are manufactured in accordance with the ASTM specifications B230, B398 and B524.

Features
The high strength to weight ratio provided by the 6201-T81 alloy makes ACAR conductors a preferred choice for transmission and distribution projects where:
Conductor with more strength than AAC is required;
Conductor with high current capability is preferred over ACSR or AAAC;
Conductor with lower weight than ACSR is desired;
Conductor with higher corrosion resistance than ACSR is essential.

Size of Conductor Stranding in. Area Wire Diameter Overall Diameter of Conductor Linear Weight Maximum DC Resistance at 20
AWG or Kcmil 1350-H19 6201- T81 mm2 mm mm Kg/km Ω /km
30.6 4 3 15.5 1.679 5.03 43 1.983
4 4 3 21.2 1.961 5.89 59 1.454
48.7 4 3 24.7 2.118 6.35 68 1.246
2 4 3 33.6 2.474 7.42 93 0.913
77.5 4 3 39.3 2.672 8.03 109 0,721
1/0 4 3 53.5 3.119 9.35 148 0.575
123.3 4 3 62.5 3.371 10.11 173 0.492
2/0 4 3 67.4 3.503 10.52 187 0.455
155.4 4 3 78.7 3.785 11.35 218 0.390
3/0 4 3 85 3.932 11.80 235 0.361
195.7 4 3 99.1 4.247 12.74 274 0.310
4/0 4 3 107 4.417 13.25 297 0.286
246.9 4 3 125 4.770 14.31 346 0.245
250 15 4 127 2.913 14.56 350 0.235
250 12 7 127 2.913 14.56 350 0.240
300 15 4 152 3.193 15.96 420 0.195
300 12 7 152 3.193 15.96 420 0.200
350 15 4 177 3.447 17.24 490 0.168
350 12 7 177 3.447 17.24 490 0.172
400 15 4 203 3.685 18.44 560 0.147
400 12 7 203 3.685 18.44 560 0.135
450 15 4 228 3.909 19.55 630 0.130
450 12 7 228 3.909 19.55 630 0.133
500 15 4 253 4.120 20.60 700 0.117
500 12 7 253 4.120 20.60 700 0.120
500 33 4 253 2.951 20.65 700 0.116
500 30 7 253 2.951 20.65 700 0.117
500 24 13 253 2.951 20.65 700 0.120
500 18 19 253 2.951 20.65 700 0.123
550 15 4 279 4.321 21.66 770 0.107
550 12 7 279 4.321 21.66 770 0.110
550 33 4 279 2.951 21.66 770 0.105
550 30 7 279 2.951 21.66 770 0.106
550 24 13 279 2.951 21.66 770 0.109
550 18 19 279 2.951 21.66 770 0.111
600 15 4 304 4.513 22.58 840 0.097
600 12 7 304 4.513 22.58 840 0.100
600 33 4 304 3.230 22.63 840 0.096
600 30 7 304 3,230 22.63 840 0.097
600 24 13 304 3.230 22.63 840 0.100
600 18 19 304 3.230 22.63 840 0.102
650 33 4 329 3.360 23.57 910 0.089
650 30 7 329 3.360 23.57 910 0.090
650 24 13 329 3.360 23.57 910 0.092
650 18 19 329 3.360 23.57 910 0.095
700 33 4 355 3.490 24.46 980 0.083
700 30 7 355 3.490 24.46 980 0.084
700 24 13 355 3.490 24.46 980 0.086
700 18 19 355 3.490 24.46 980 0.088
750 33 4 380 3.620 25.32 1050 0.077
750 30 7 380 3.620 25.32 1050 0.078
750 24 13 380 3.620 25.32 1050 0.080
750 18 19 380 3,620 25.32 1050 0.082
800 33 4 405 3.730 26.15 1120 0.072
800 30 7 405 3.730 26.15 1120 0.073
800 24 13 405 3.730 26.15 1120 0.075
800 18 19 405 3.730 26.15 1120 0.077
850 33 4 431 3.850 26.95 1190 0.068
850 30 7 431 3.850 26.95 1190 0.069
850 24 13 431 3.850 26.95 1190 0.071
850 18 19 431 3.850 26.95 1190 0.072
900 33 4 456 3.960 27.75 1260 0.064
900 30 7 456 3.960 27.75 1260 0.065
900 24 13 456 3.960 27.75 1260 0.067
900 18 19 456 3.960 27.75 1260 0.068
950 33 4 481 4.07 28.50 1330 0.061
950 30 7 481 4.07 28.50 1330 0.062
950 24 13 481 4.07 28.50 1330 0.063
950 18 19 481 4.07 28.50 1330 0.065
1000 33 4 507 4.17 29.30 1400 0.058
1000 30 7 507 4.17 29.30 1400 0.059
1000 24 13 507 4.17 29.30 1400 0.060
1000 18 19 507 4.17 29.30 1400 0.061
1000 54 7 507 3.25 29.32 1397 0.058
1000 48 13 507 3.25 29.32 1397 0.059
1000 42 19 507 3.25 29.32 1397 0.060
1000 33 28 507 3.25 29.32 1397 0.061
1100 33 4 557 4.38 30.65 1540 0.053
1100 30 7 557 4.38 30.65 1540 0.053
1100 24 13 557 4.38 30.65 1540 0.054
1100 18 19 557 4.38 30.65 1540 0.056
1100 54 7 557 3.41 30.70 1540 0.053
1100 48 13 557 3.41 30.70 1540 0.054
1100 42 19 557 3.41 30.70 1540 0.055
1100 33 28 557 3.41 30.70 1540 0.055
1200 33 4 608 4.57 32-00 1680 0.048
1200 30 7 608 4.57 32.00 1680 0.049
1200 24 13 608 4.57 32.00 1680 0.050
1200 18 19 608 4.57 32.00 1680 0.051
1200 54 7 608 3.56 32.10 1680 0.048
1200 48 13 608 3.56 32.10 1680 0.049
1200 42 19 608 3.56 32.10 1680 0.050
1200 33 28 608 3.56 32.10 1680 0.051
1250 33 4 633 4.67 32.70 1750 0.046
1250 30 7 633 4.67 32.70 1750 0.047
1250 24 13 633 4.67 32.70 1750 0.048
1250 18 19 633 4.67 32.70 1750 0.049
1250 54 7 633 3.63 32.72 1750 0.046
1250 48 13 633 3.63 32.72 1750 0.047
1250 42 19 633 3.63 32.72 1750 0.048
1250 33 28 633 3.63 32.72 1750 0.049
1300 33 4 659 4.76 33.33 1820 0.044
1300 30 7 659 4.76 33.33 1820 0.045
1300 24 13 659 4.76 33.33 1820 0.046
1300 18 19 659 4.76 33.33 1820 0.047
1300 54 7 659 3.71 33.38 1825 0.044
1300 48 13 659 3.71 33.38 1825 0,045
1300 42 19 659 3.71 33.38 1825 0.046
1300 33 28 659 3.71 33.38 1825 0.047
1400 54 7 709 3.85 34.65 1960 0.041
1400 48 13 709 3.85 34.65 1960 0.042
1400 42 19 709 3.85 34.65 1960 0.043
1400 33 28 709 3.85 34.65 1960 0.044
1500 54 7 760 3.98 35.85 2100 0.039
1500 48 13 760 3.98 35.85 2100 0.0395
1500 42 19 760 3.98 35.85 2100 0.040
1500 33 28 760 3.98 35.85 2100 0.041
1600 54 7 811 4.11 37.05 2240 0.036
1600 48 13 811 4.11 37.05 2240 0.037
1600 42 19 811 4.11 37.05 2240 0.037
1600 33 28 811 4.11 37.05 2240 0.038
1700 54 7 861 4.24 38.15 2380 0.034
1700 48 13 861 4.24 38.15 2380 0.0345
1700 42 19 861 4.24 38.15 2380 0.035
1700 33 28 861 4.24 38.15 2380 0.036
1750 54 7 887 4.30 38.75 2450 0.033
1750 48 13 887 4.30 38.75 2450 0.0335
1750 42 19 887 4.30 38.75 2450 0.034
1750 33 28 887 4.30 38.75 2450 0.035
1800 54 7 912 4.36 39.30 2520 0.032
1800 48 13 912 4.36 39.30 2520 0.0325
1800 42 19 912 4.36 39.30 2520 0.033
1800 33 28 912 4.36 39.30 2520 0.034
1900 54 7 963 4.48 40.35 2660 0.0305
1900 48 13 963 4.48 40.35 2660 0.031
1900 42 19 963 4.48 40.35 2660 0.0315
1900 33 28 963 4.48 40.35 2660 0.032
