GPRS GSM FCT1. support voice&GPRS
2. CE & RoHS compliant
3. GSM900/1800/850/1900MHz

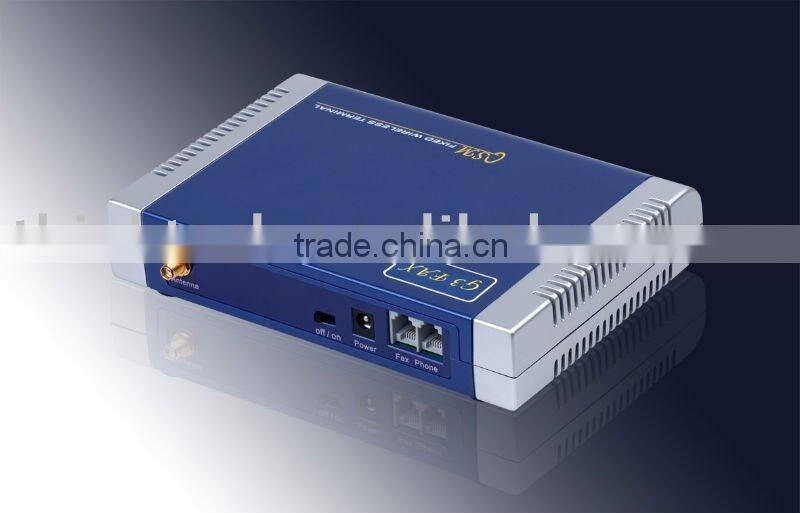

GPRS GSM FCT
Features:
1. Based on GSM900/1800/850/1900MHz
2. Support reverse polarity
3. Can connect to PBX
4.Support GPRS
Main Functions:
1. Making & answering calls after connecting to telephone set
2. Available to connect with telephone set, PBX, billing machine, etc
3. Available to connect with backup battery, and the stand-by time can reach 24 hours in case when the power is cut off.
4. Built-in PIN code protection featured with locking device/card/network
5. Caller ID
6. Optional to match with various high-gain antennas, featured with signal intensity indicator, Working status indicator, breakdown indicator, etc
7. Supports the functions of redialing and hands-free
8. Can proceed with setting up and modification of parameters through the phone set.
Technique Parameters:
* Working Frequency
Rx (EGSM 900): 925~960MHz
Tx (EGSM 900): 800~915MHz
Rx (DCS 1800): 1805~1880MH
Tx (DCS 1800): 1710~1785MHz
* Radio Frequency Power: 1W
* Rx Sensitivity: <-104dBm
* Antenna Gain: >1.5Db
* Power supply voltage: 15V
