High Efficient Small Coal Grinding Ball Mill
- 1000 Set / Sets per Month
- Qingdao or China Main Port
- T/T Credit Card
Product Details
Condition: | New | Type: | Ball Mill | Motor Type: | AC Motor |
Power(W): | 95kw | Capacity(t/h): | 6.1-3.1 | Place of Origin: | Henan, China |
Brand Name: | Zoonye | Model Number: | MQ1530 | Dimension(L*W*H): | 1500x3000mm |
Certification: | CE, ISO | Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Coal Grinding Ball Mill1. For cement, silicate, gypsum, limestone etc.
2. Wet or dry ball mill;
High Efficient Small Coal Grinding Ball Mill for Sale
Introduction of Coal Grinding Ball Mill
Ball mill is mainly used for grinding materials in such production industries as cement, silicate product, new building materials, chemical engineering, nonferrous and black metal, mineral processing, glass and ceramic, etc. It is used for grinding various ore and other grindable materials dry or wet.
Structural Feature of Coal Grinding Ball Mill
Ball mill is a principle and cylindrical revolving device, and belongs to external gear-driving ball mill. The materials are transported by feeder, and gets into mill chamber through hollow screw axis equably, and there is lining plate and steel balls in the chamber. When the cylinder body goes round and round, the steel ball is taken to certain height, then falls down, and the materials are struck and grinded heavily. The above action repeats constantly till the size of materials reaches the required fineness. The powdery materials are discharged through discharge grate plate, and the milling work is over.
Ball mill mainly consists of feeding part, discharging part, gyre part, transmission part (decelerated machine, small transmission gear, motor, electric control) and so on. The hollow axis adopts cast steel, the lining plate can be replaced, the big gyre gear is made of forging rolling gear, and there is lining plate in the cylinder body, which has favorable abrasion resistance. The ball mill has the features of stable running and reliable working.
Working Principle of Coal Grinding Ball Mill
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials.
Specification of Coal Grinding Ball Mill
Type | Model | drum (mm) | volume (m3) | revolution (r/min) | motor (KW) | discharging size (mm) | Output (t/h) |
Wet-Grate Ball Mills | MQ1530 | 1500×3000 | 4.5 | 26.5-29.8 | 95 | 0.3-0.074 | 6.1-3.1 |
MQ2130 | 2100×3000 | 9.2 | 22.2-25.2 | 210 | 0.3-0.074 | 14-6.4 | |
MQ2430 | 2400×3000 | 12.2 | 20.8-23.5 | 240 | 0.3-0.074 | 18.5-8.7 | |
MQ2736 | 2700×3600 | 18.4 | 19.6-22.2 | 400 | 0.3-0.074 | 28-13 | |
MQ3245 | 3200×4500 | 32.8 | 18-20.4 | 800 | 0.3-0.074 | 49-24 | |
MQ3660 | 3600×6000 | 54.4 | 17-19.2 | 1600 | 0.3-0.074 | 82-38 | |
Dry-Grate Ball Mills
| MQG1515 | 1500×1500 | 2.2 | 26.5-29.8 | 60 | 0.4-0.074 | 5.2-1.9 |
MQG1522 | 1500×2250 | 3.4 | 26.5-29.8 | 75 | 0.4-0.074 | 10.2-2.7 | |
MQG1530 | 1500×3000 | 4.5 | 26.5-29.8 | 95 | 0.4-0.074 | 14-3.6 | |
MQG2122 | 2100×2200 | 6.7 | 22.2-25.2 | 155 | 0.4-0.074 | 25-5 | |
MQG2424 | 2400×2400 | 9.8 | 20.8-23.5 | 210 | 0.4-0.074 | 29-7.5 | |
MQG2430 | 2400×3000 | 12.2 | 20.8-23.5 | 240 | 0.4-0.074 | 38-9.5 | |
Over-flow Ball Mills
| MQY1530 | 1500×3000 | 4.5 | 26.5-29.8 | 95 | 0.3-0.074 | 6-2.8 |
MQY2136 | 2100×3600 | 11 | 19-25.2 | 210 | 0.3-0.074 | 12.8-6 | |
MQY2430 | 2400×3000 | 12.2 | 17.8-23.5 | 240 | 0.3-0.074 | 16.6-7.8 | |
MQY2740 | 2700×4000 | 20.4 | 16.8-22.2 | 400 | 0.3-0.074 | 27.7-13 | |
MQY3254 | 3200×5400 | 39.4 | 15.5-20.4 | 1000 | 0.3-0.074 | 52.8-25.9 | |
MQY3660 | 3600×6000 | 54.4 | 14.5-19.2 | 1250 | 0.3-0.074 | 74.1-32.4 |

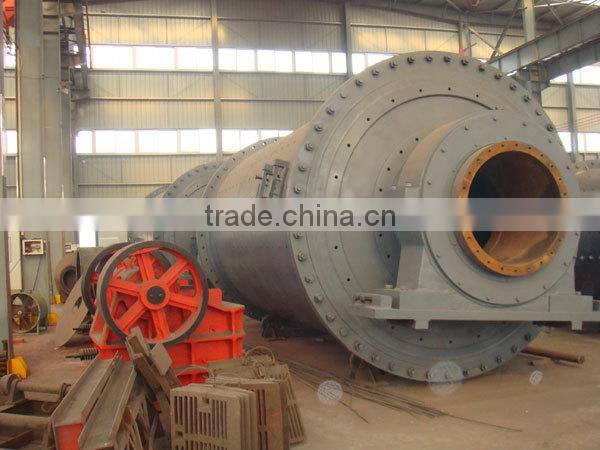

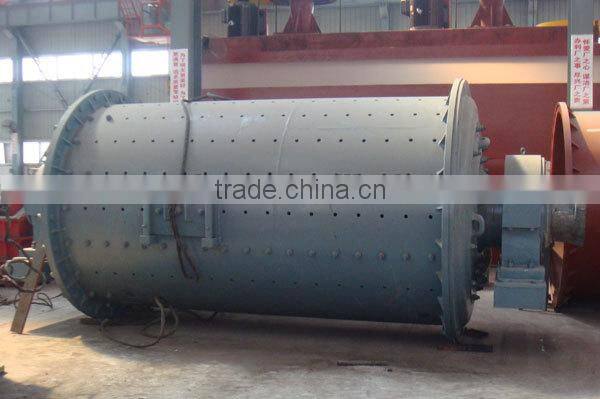

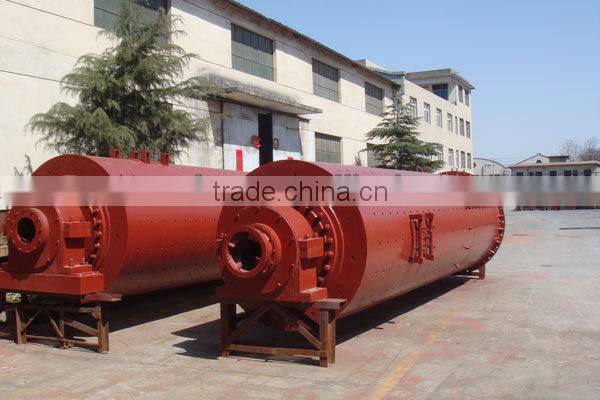

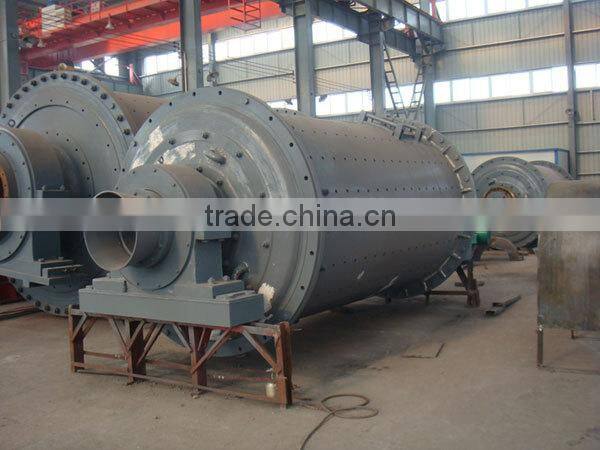

Pictures of our Coal Grinding Ball Mill
Zhengzhou ZOONYE Industial Equipment Co., Ltd is a reliable and professional manufacturer of small coal grinding ball mill.
