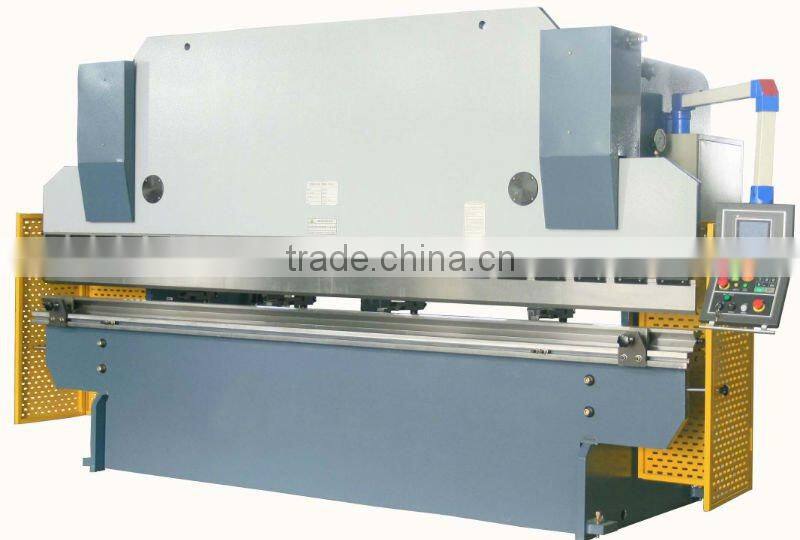

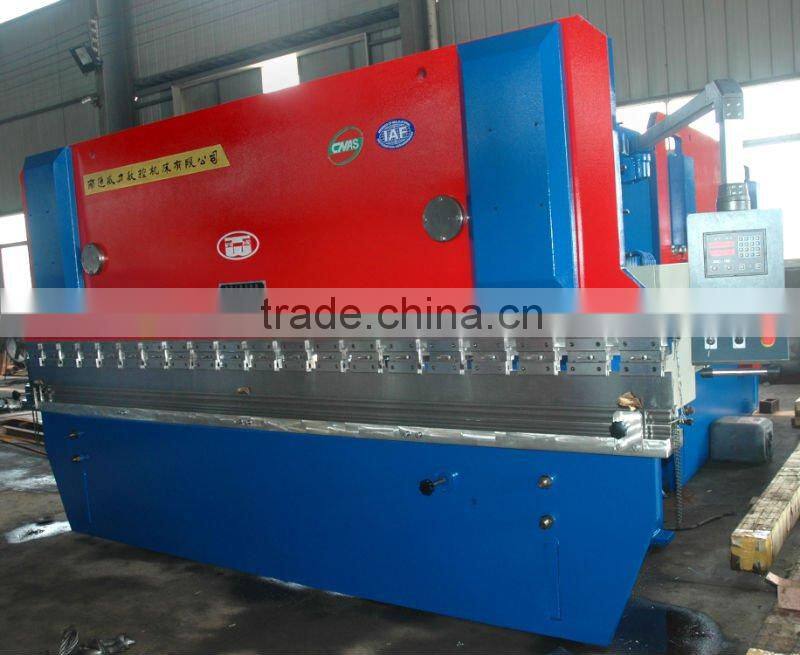

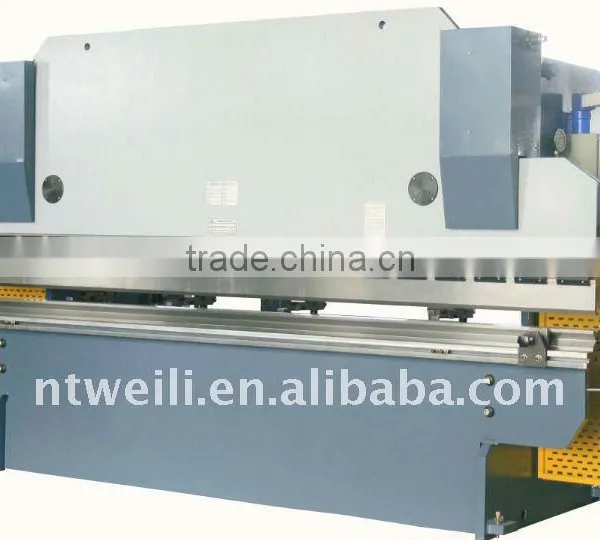

Help CenterWC67K-2000/10000 Hydraulic Bending Machine
Related Products
-
WC67K-700T/4000 Mechanical Bending MachineNegotiableMOQ: 1 Set -
WC67K-200T/6000 Cnc Plate Bending MachineNegotiableMOQ: 1 Set
-
WC67K-125/3200 Cnc Hydraulic Press Brake MachineUS$ 11,000 - 15,000MOQ: 1 Set
-
WC67K-200T/3200 Metal Press Brake MachineUS$ 20,000 - 25,000MOQ: 1 Set
-
WC67K-80/2500 Cnc Press Brake MachineryNegotiableMOQ: 1 Set
Specifications
hydraulic bending machinestandard upper/down dies
foot pedal control
atos valves
best priceCE, ISO certification
WC67K-100/3200 hydraulic press brake
1, The frame is the whole welded structure, the whole tempered by the fireplace, the machine to maintain good accuracy.
2, Hydraulic pressure on the acting, stepless voltage regulation, the use of imported high-quality seals to ensure the reliability of the machine.
3, Mechanical synchronization, down complex compensation structure to improve the machining accuracy.
4, The machine has jog, single, continuous practices, commutation, dwell time can be controlled by time relay.
5, The machine equipped with a safety fence and door power equipment, improved safety in operation.
6,Cylinder with synchronous control servo valve, hydraulic concave automatic compensation system organizations can control the back gauge mutipe-axis back gauge, welded steel plate body, the whole by tempering.
Specification |
Nominal pressure (KN) |
Length of working table (mm) |
The distance between column (mm) |
Open heigh (mm) |
The depth of throat (mm)
|
Ram Stroat (mm)
|
Motor power (KW) |
Overall Dimensions (mm) |
WC67K-2000T/10000 |
20000 |
10000 |
7800 |
920 |
600 |
400 |
2×55 |
10100×4800×7200 |
