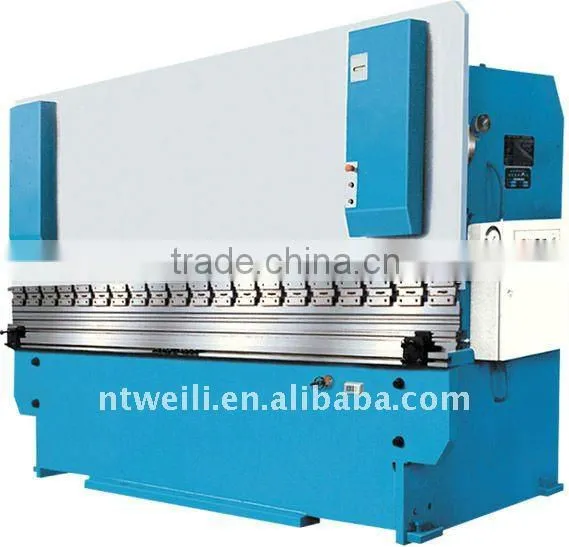

WC67K-80/2500 Cnc Press Brake Machinery

WC67K-80/2500 Cnc Press Brake Machinery thumbnail-1
WC67K-80/2500 Cnc Press Brake Machinery photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
TONGWEI
Model Number:
WC67K-80/2500
Contact Supplier Request Quote Chat Now
Nantong Weili CNC Machine Tool Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name TONGWEI
Model Number WC67K-80/2500
Machine Type Beading Machine
Raw Material Sheet / Plate Rolling
Material / Metal Processed Stainless Steel
Power Cnc
Automation Automatic
Extra Services Machining
Certification CE

Specifications

1.With high strength and good rinidity.
2.Hydraulic top-drive.
3.Guarding with safety interlocker.
c press brake



1.S-teel-welded construction, vibration to eliminate stress, with high strength and good rigidity.

2.hydraulic top-drive, steadiness and reliability.

chanical stop, steel torsion bar to maintain synchronization, high precision.

4.Motorzed-adjusing device if back gauge and rams stroke, fine adjusting by handwheel, numerical display.

5.deflection compensation unit installed on the top die. Manual crowned bottom die holder is adopted for the machine above 250ton stength4000mm. travel limit protection. Full machine guarding with safety interlocker.

     Hydraulic press brake (Series WC67Y)
Model Pressure
KN		 Worktable length
mm		 Distance between columns mm Depth of throat mm Stroke
mm		 Max height between
worktable and ram    mm		 Main motor  KW Weight
KG		 Dimension
(LxWxH)
mm
WC67Y-40/2500 400 2500 1925 220 80 300 4 3000 2650x1100x1950
WC67Y-50/2500 500 2500 2015 220 100 340 4 3750 2650x1250x2100
WC67Y-63/2500 630 2500 2015 250 100 340 5.5 4300 2650x1300x2200
WC67Y-80/2500 800 2500 2010 250 120 380 5.5 5200 2560x1350x2250
WC67Y-80/3200 800 3200 2510 250 120 380 5.5 6000 3260x1350x2280
WC67Y-100/2500 1000 2500 2050 320 150 420 7.5 6700 2550x1360x2270
WC67Y-100/3200 1000 3200 2550 320 150 420 7.5 7200 3260x1365x2520
WC67Y-100/4000 1000 4000 3050 320 150 420 7.5 8500 4060x1365x2720
WC67Y-125/3200 1250 3200 2550 320 150 420 7.5 7800 3260x1465x2600
WC67Y-125/4000 1250 4000 3050 320 150 420 7.5 9000 4060x1460x2800
WC67Y-160/3200 1600 3200 2590 320 200 475 11 10500 3260x1580x2775
WC67Y-160/4000 1600 4000 3040 320 200 475 11 12500 4060x1580x2925
WC67Y-160/6000 1600 6000 4800 320 200 480 11 19500 6060x1580x3480
WC67Y-200/3200 2000 3200 2580 320 200 475 18.5 13200 3260x1650x2800
WC67Y-250/4000 2500 4000 3130 400 250 530 18.5 19000 4060x1840x3150
WC67Y-250/5000 2500 5000 3930 400 250 530 18.5 24000 5060x1840x3450
WC67Y-300/3200 3000 3200 2530 400 250 580 18.5 18000 3300x2100x2980
WC67Y-300/4000 3000 4000 3200 400 250 580 18.5 22000 4060x2040x3330
WC67Y-400/4000 4000 4000 3180 400 320 630 30 30000 4060x2220x3630
WC67Y-400/6000 4000 6000 4700 400 320 630 30 45000 60602x2203x980
WC67Y-500/6000 5000 6000 4600 500 320 70 30 55000 6080x2760x4000
WC67Y-800/6000 8000 6000 4600 500 400 900 37 72000 6100x3250x4300

                 CNC press brake

WC67K-80/2500 cnc press brake machinery
