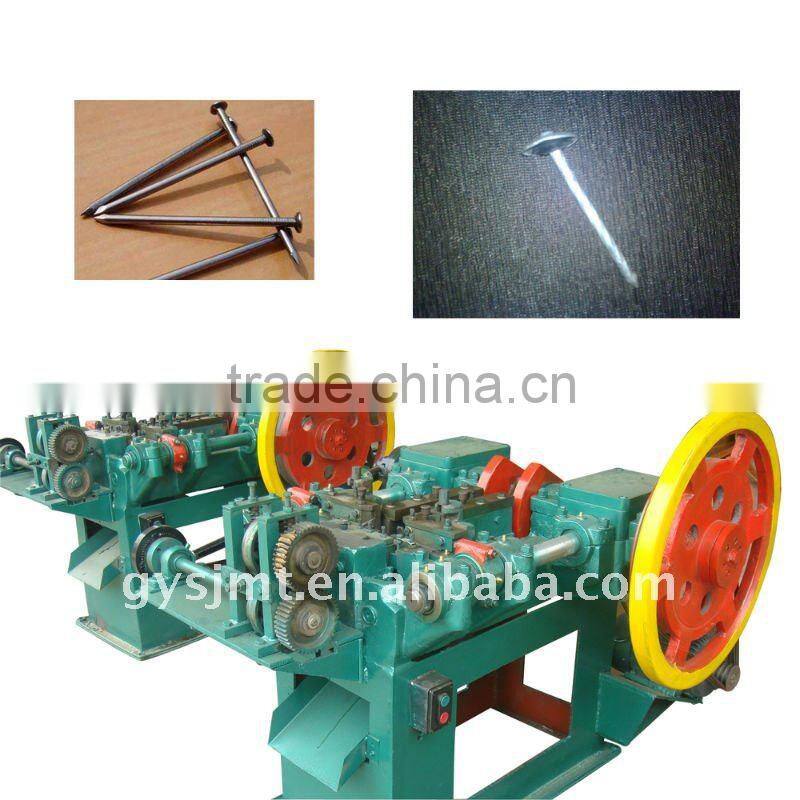

Z94C Automatic Nail Making Machine

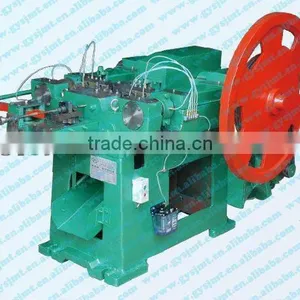

Z94C Automatic Nail Making Machine photo-1
US$ 1,000 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
sanjin machine
Model Number:
z94-1c,2c,3c,4c,5.5c
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or any port in china
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name sanjin machine
Model Number z94-1c,2c,3c,4c,5.5c

Specifications

Z94C automatic nail making machine
1.high speed:200-450pcs/min
2.low noise and automatic
3.mould, cutter, punch

Z94C automatic nail  making machine



1.Usage and feature

The Z94C automatic  nail making machine adopts plunger and oil pipe lubricating structure so as to ensure the features such as high speed, low noise and less impact. Especially, it can make the high quality of asphalt felt nails and other special nail used for high speed coil nail welder and coil nailer.



The type of nails machine can produce Normal Nail.



Availability of Raw Material: normal wire, new metal wire,waste rebar,scrap steel bar, hard-drawn wire,  Waste electrode, and other kind of waste steel,



Supply relative spare parts: mould, cutter, punch pin.

2.Technical data





Technical data

Unit

Z94 -5.5C

Z94 -4C

Z94 -3C

Z94 -2C

Z94 -1C

Dia of nail max

mm

5.5

4.5

3.4

2.8

1.6

Dia of nail min

mm

3.7

2.8

1.8

1.2

0.9

Length of nail max

mm

150

100

75

50

25

Length of nail min

mm

80

50

30

16

9

Designed capacity

pcs/min

200

280

320

350

450

Motor power

kw

5.5

4

3

2.2

1.5

Weight(approx)

kg

2500

2000

1600

1400

1200

 Overall dimension

mm

2400*1800*1700

2200*1600*1650

2000*1400*1400

1700*1300*1400

1500*1300*1200

cessing  flow:

wire-rod__ wires-drawing__nail-making__polishing___ packing__ delivery

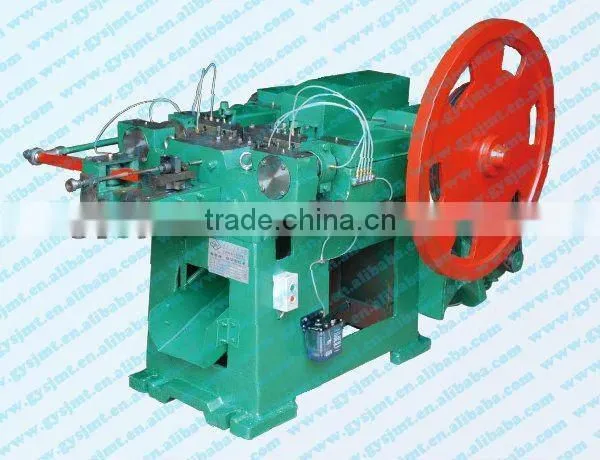

 Z94C automatic nail making machine



 Z94C automatic nail making machine
