(Muban of ap) high power custom gift usb wifi decoder adapter
2.4GHz 533MHz Atheros9341 Chipset
64MB DDR RAM,8MB-16MB SPIBuilt-in 5dBi Omni-Directional MIMO2x2 Antenna
50 Users,Cover 100~300m Without Block
Support 12V POE,1*RJ45 Interface
1*Reset Button,1*Power DC Jack,2*LED
AP Bridge/Client Bridge/WAN Gateway Mode Supported
Support AC Software Centralized Management

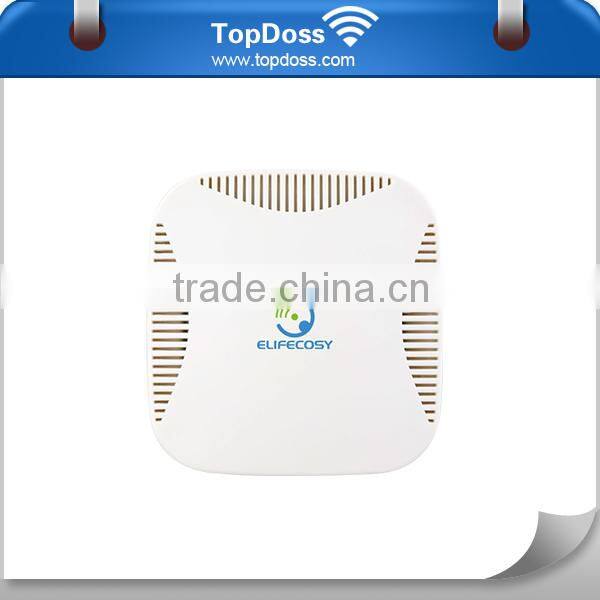

MIMO2x2 ceiling usb wifi decoder adapter
Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards
Support 2.4GHz LAN networks. Provides up to 300Mbps transmission rates
Support Wireless Auto-channel selection
Supports WiFI Protection Setup function (WPS) WEP, WPA, and WPA2 to ensure network security from unauthorized access
2.4GHz MIMO Built-in omni-directional 5 dBi antenna,easily cover the dead zone of the room.
Supports AP Bridge/Client Bridge/WAN Gateway modes,adjustable modes according your needs.
Adjustable transmit power,you can control your wireless cover range according different requirement.
Hardware | ||||
Product type |
wireless transmitter outdoor wireless access point |
|||
Chipset |
Atheros AR9341 |
|||
Memory |
64MB DDR RAM |
|||
Flash |
8MB-16MB SPI |
|||
Interface |
1*RJ-45 for 100 Mbps WAN/LAN Port(Support 12V POE) |
|||
1*Reset Button(Reset&Factory Default) | ||||
1*Power DC Jack | ||||
Antenna |
Built-in 5dBi Omni-Directional |
|||
Power |
12V(POE 12V/24V)/1A |
|||
RF Parameters | ||||
Standards |
IEEE802.11b/g/n |
|||
Speed |
300Mpbs |
|||
Modulation Mode |
OFDM=BPSK,QPSK,16-QAM,64-QAM |
|||
DSSS=SBPSK,DQPSK,CCK | ||||
Frequency |
2.4~2.4835GHz |
|||
Sensitivity |
802.11n(2.4GHz) |
802.11g |
802.11b |
|
-90dBm*MCSO |
-90dBm*6Mbps |
-95dBm*1Mbps |
||
-70dBm*MCS7 |
-72dBm*54Mbps |
-90dBm*11Mbps |
||
-90dBm*MCS8 |
|
|
||
-68dBm*MCS15 |
|
|
||
Transmit power |
Adjustable 17dBm-23dBm 100-200mw |
|||
Software | ||||
Mode |
AP Bridge/Client Bridge/WAN Gateway |
|||
Standards |
IEEE 802.3(Ethernet) |
|||
IEEE 802.3u(Fast Ethernet) | ||||
IEEE 802.11b/g/n(2.4G WLAN) | ||||
Wireless Setup |
Support Multi SSID Channel Selection(1-14 Channel) |
|||
Switch of SSID Broadcasting | ||||
Support Multi-country Channel | ||||
Security |
Support 64/128/152Bit WEP Encryption |
|||
WPA / WPA2,WPA-PSK / WPA2-PSK Security Mechanism | ||||
SSID Hiding;MAC Address Filtering | ||||
Physical Characteristics | ||||
Temperature Characteristics |
Working temperature: 0 ℃ ~ 55 ℃ |
|||
Storage temperature: -40 ℃ ~70 ℃ | ||||
Humidity |
5%~95%(Typical) |
|||
Order now!
Ms Anna Skype ID: Topdoss9 Whatsapp & Phone :0086-15815561656
Ms Sweetly Skype ID: Topdoss6 Whatsapp & Phone :0086-15815561003
Mr Eric Skype ID: Topdoss66 Whatsapp & Phone :0086-13631563050 Tel:0086-755-23284958
1.We provide 1 year warranty for the product you bought,and help you solve some technical problem you can not handle with a one to one senior engineer.
2.Technical Support 7x24 Hours
3.Flexible Payment & Shipment
4.Huge Inventory in Stock
5.Making a fast delivery
6.Quality Guarantee
1.What kind of payment do you usually use?
We usually use Western Union,T/T for mass production,and use PayPal for sample.
2.How long will you deliver the goods after pay?
We usually deliver the goods at the same day when stock enough.
3.How many days i can get the goods?
Our client feedback they usually receive the goods within 7 days after they paid.So the delivery time usually at 5~7 days.
4.What kind of certificate your product pass?
Certificate:CE,RoHS,FCC.
5.Can you OEM?
Yes,our company`s predecessor was a wireless devices factory,which focus on producing and selling wireless product such as wireless CPE/bridge,access point,wifi repeater,network adapter,and smart routers over 7 years.So,you make requests,we meet them.
6.What about OEM MOQ?
The OEM MOQ is 500pcs.
