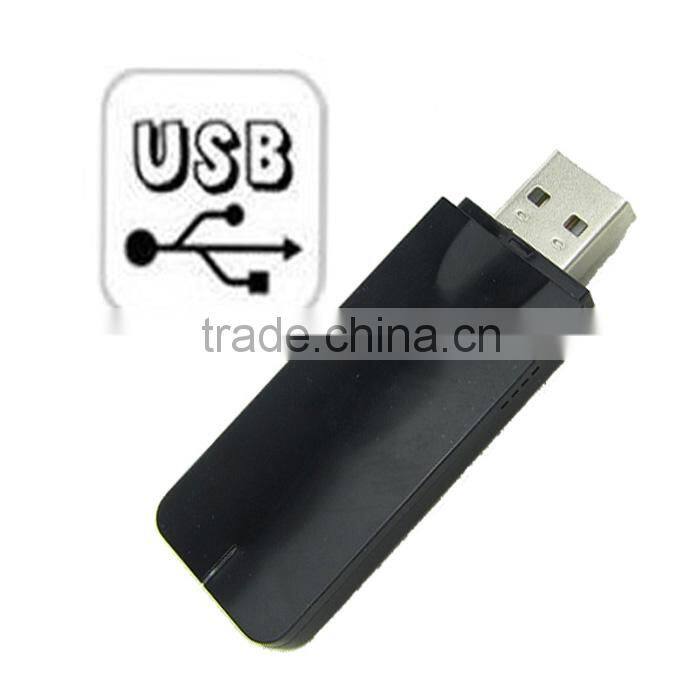

2.4ghz 2.5ghz Antenna Nano Ralink Chipset Usb Wifi Adapter

Name: 2.4ghz 2.5ghz Antenna Nano Ralink Chipset Usb Wifi Adapter
Brand: topdoss
SKU: 116443885
Availability: InStock

Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

topdoss

Model Number:

TD-USB300

Shenzhen TopDoss Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name topdoss

Model Number TD-USB300

Specifications

1.2.4ghz 2.5ghz antenna nano ralink chipset usb wifi adapter
2.ralink chipset usb wifi adapter
3.wifi adapter long range

2.4ghz 2.5ghz antenna nano ralink chipset usb wifi adapter

1.2T2R mode, built-in on board PCB antennas
2. With 20/40MHz bandwidth

3. Chipset: Ralink RT5572

4. Complies with IEEE 802.11 a/b/g/n

5. Dual Frequency: 2.4/5GHz

6. Antenna: 2*5dBi antennas

7. Clearer signal with 5GHz frequency, low disturbance

8.Higher speed of internet access under Dual Band

9. High speed USB 2.0 interface

10. Security: 64/128bit WEP, WPA and WPA2

11 Supports software update

12. Wireless N protocol 300Mbps throughput

13. 5GHz low disturbance, super stable, super speed

14. Downward compatible with 802.11 a/b/g/n

15. Supports WSP Wi-Fi fast security solution

16. Support Windows 2000/XP/Win CE/Vista/Win 7/Win 8/Linux/MAC OS

Standard	802.11 a/b/g/n
Chipset	Ralink 5572
Operating Frequency	802.11a ISM Band: 5.1 ~ 5.8GHz 802.11g ISM Band: 2.4 ~ 2.4835GHz
Modulation	802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11a/g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
Output Power	802.11a: 11dBm ± 1.5dBm@54Mbps 802.11b: 16dBm ± 1.5dBm@11Mbps 802.11g: 13dBm ± 1.5dBm@54Mbps 802.11an HT20: 10dBm ± 1.5dBm@MCS7 802.11an HT40: 10dBm ± 1.5dBm@MCS7 802.11gn HT20: 12dBm ± 1.5dBm@MCS7 80.211gn HT20: 12dBm ± 1.5dBm@MCS7
Receiver Sensitivity	802.11a: -72dBm ±2dBm@54Mbps 802.11b: -86dBm ±2dBm@11Mbps 802.11g: -72dBm ±2dBm@54Mbps 802.11an HT20: -68dBm ±2dBm@MCS7 802.11an HT40 : -65dBm ±2dBm@MCS7 802.11gn HT20: -68dBm ±2dBm@MCS7 802.11gn HT40 : -65dBm ±2dBm@MCS7
Power consumption	Continue TX Max 400mA@2TX Continue RX Max 250mA@2RX
Operating Voltage	DC 5V ± 10%
Environmental	Temperature Range: 0 ~ 60°C (Operating) -20 ~ 70°C (Storing) Humidity (Non-Condensing): 5 ~ 90% (Operating) 5 ~ 95% (Storing)
Support Operating System	Windows 2000/XP/Win CE/Vista/Win 7/Win 8/Linux/MAC
