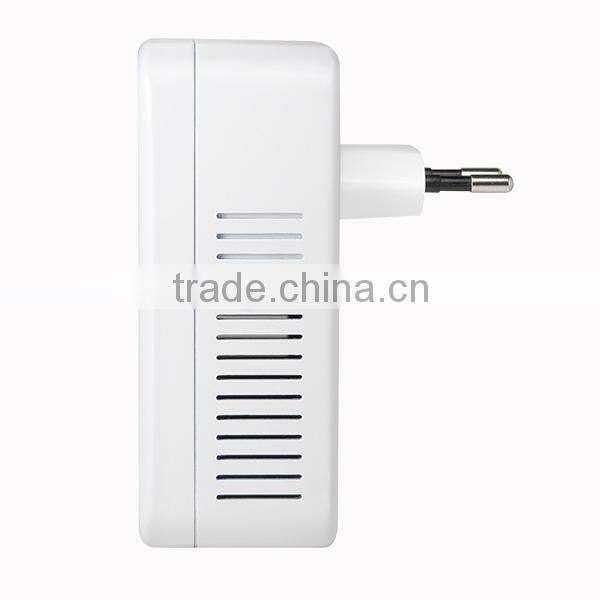

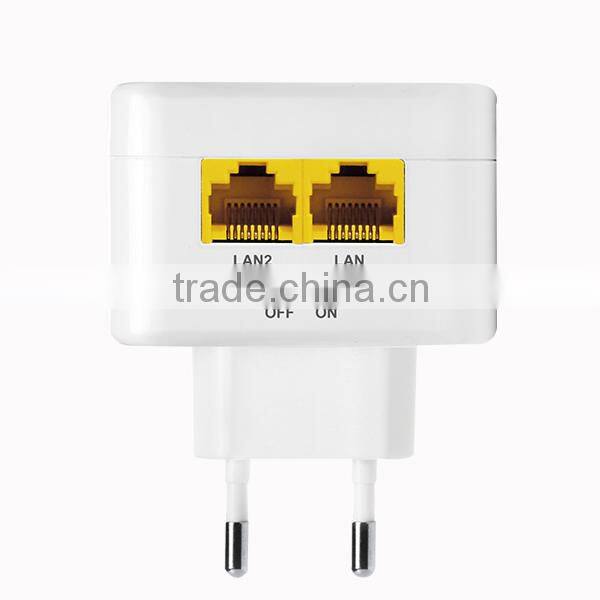

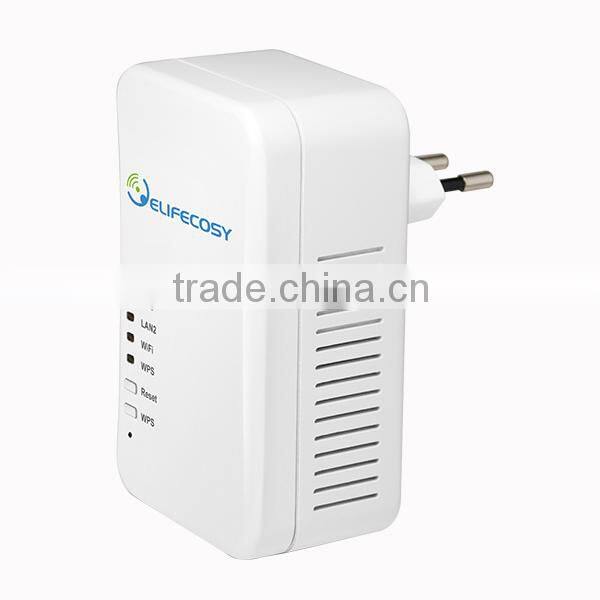

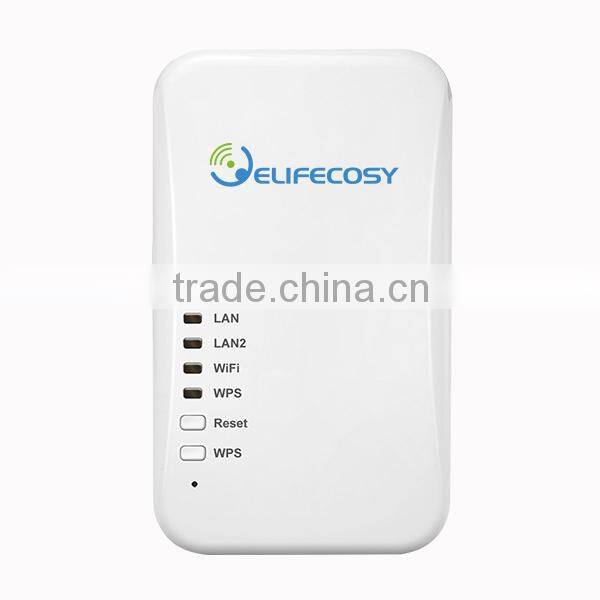

Dual-Band MT7620A+MT7620E wireless wifi repeater

specification

Model

EC-RPD7620

PROTOCOL/STANDARDS

IEEE802.11ac, IEEE802.11n, IEEE802.11g

IEEE802.11b, IEEE802.11a, IEEE802.3, IEEE802.3u

WIRELESS SIGNAL RATES

11b: 1/2/5.5/11Mbps

11a/g: 6/9/12/18/24/36/48/54Mbps

11n: Up to 300Mbps

11ac: Up to433Mbps

WIRELESS MODE

2.4G mode options: 802.11b only, 802.11g only, 802.11n only,

802.11b/g mixed, 802.11b/g/n mixed

5G mode options: 802.11a/n mixed, 802.11ac/n/a mixed

MODULATION TECHNOLOGY

11 a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM for OFDM

11b: CCK, BPSK, QPSK

ANTENNA

2.4G: 2*2.5dBi internal Antennas

5G: 1*2.5dbi internal Antenna

FLASH/DDR2

Flash: 8MB

DDR2: 64MB

WIRELESS TRANSMIT POWER

2.4GHz(Max): 17dBm

5GHz(Max): 15dBm

FREQUENCY RANGE

2.4~2.4835GHz

5.180~5.825GHz

POWER SUPPLY

100~240 VAC, 50/60Hz

POWER SOCKET

EU, UK, US, CN, AUS

SECURITY

Wireless MAC address filter;

64/128/152-BIT WEP WPA-PSK/WPA2-PSK, WPA/WPA

ENVIRONMENT REQUIREMENT

Operating Temperature

0℃~40℃

Storage Temperature

-40℃~70℃

Operating Humidity

10% to 90% Relative Humidity (Non-Condensing)

Storage Humidity

5% to 90% Relative Humidity (Non-Condensing)

ACCESSORIES

1 x Ethernet Cable

1 x Setup Wizard
