Cement Ball Mill, Cement Mill

Cement Ball Mill, Cement Mill thumbnail-1
Cement Ball Mill, Cement Mill thumbnail-2
Cement Ball Mill, Cement Mill thumbnail-3
Cement Ball Mill, Cement Mill thumbnail-4
Cement Ball Mill, Cement Mill photo-1

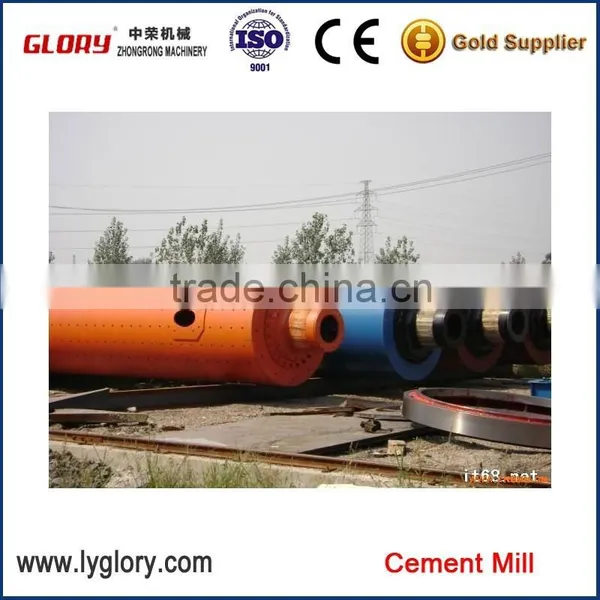

Cement Ball Mill, Cement Mill photo-2

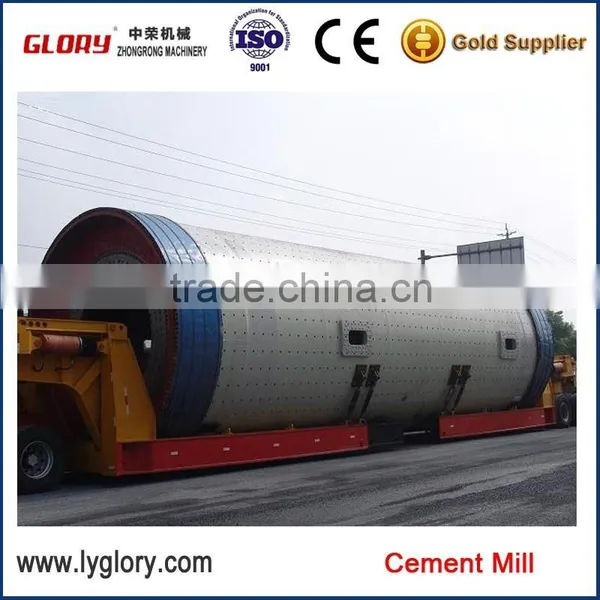

Cement Ball Mill, Cement Mill photo-3

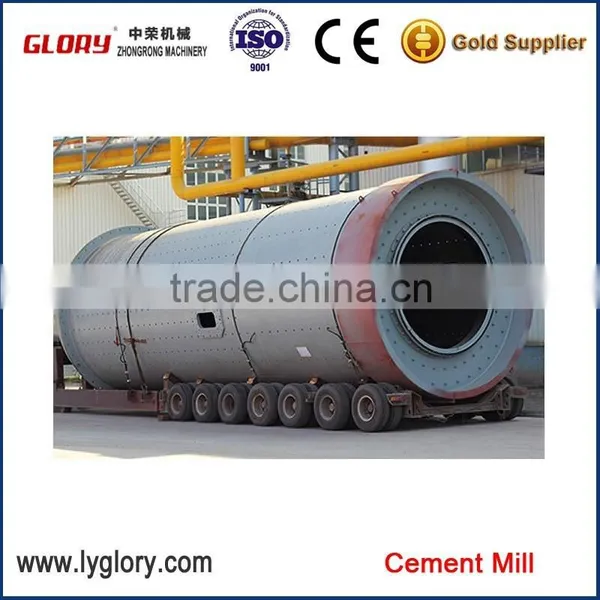

Cement Ball Mill, Cement Mill photo-4
US$ 10,000 - 99,999 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Cement mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Luoyang Zhongrong Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai or others
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Cement mill
Motor Type AC Motor
Power(W) Max 4200
Capacity(t/h) Max 120-135
Place of Origin Henan, China
Brand Name Zhongrong
Model Number cement mill as per specification
Dimension(L*W*H) As per specification
Weight As per specification
Certification ISO,CE, ISO, CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. ISO/CE approved
2.Energy Save, Flexible design structure
3. High quality and wearing spare parts
4. High product capacity



Product Description

Product Introduce of Cement mill :

Cement mill is the key equipment for re-crushing the materials after they are primarily crushed. The cement mill is a new generation high efficient and low cost ball mill which we self-developed with the introduction of the advanced European technology.



Application Range of Cement mill:

Cement mill is widely used for the dry type or wet type grinding of all kinds of ores and other grindable materials in cement, silicate product, new building material, refractory, fertilizer, black and non-ferrous metals and glass ceramic industry.



Application Materials:

 Gypsum, Cement block  Lime ston,refractories,Cement, glod ore, magnetite,Magnetic iron ore, Slag,Calcite





Working Principle of Cement mill :

Materials spirally and evenly go into the first cabin of the ball mill through the hollow shaft from the feeding device, and inside the cabin, there are ladder liners or ripple liners in which there are steel balls with different specifications. The cylinder rotates and produces centrifugal force, bring the balls to a certain height, and then the steel balls fall down to impact and grind the materials. After coarsely ground in the first cabin, the materials go into the secondary cabin through the single-layer partition board and in which there is flat liners; there are steel balls in the lining board to further grind the materials. Finally the powders will be discharged from the discharging grating bar.

Cement ball mill, Cement Mill





Technical date of Cement mill :



Product specification (m)

Milling form

Transmission form

Gear box

Motor power (kw)

Production capacity (t/h)

Total weight (t)

Model

Speed reduction ratio

Φ1.83*7

Open flow

Brim

ZD60

4.5

245

6.5-8

43.8

Φ2.2*7.5

Circle flow

Brim

ZD70

5

380

8-10

64.8

Φ2.2*11

Open flow

Central shaft

D110

35.5

630

12-13

104.6

Φ2.2*13

Open flow

Central shaft

D110

35.5

630

16-18

114

Φ2.4*13

Open flow

Central shaft

D110

35.5

800

20-23

130.6

Φ2.6*13

Open flow

Central shaft

MFY100

19.5

1000

28-32

158

Φ3*9

Circle flow

Brim

D125

41.2

1000

28-36.5

167

Φ3*11

Circle flow

Central shaft

D140

42.8

1250

36-47

180

Φ3.2*13

Open flow

Central shaft

D140

36.5

1600

45-50

225

Φ3.5*13

Circle flow

Brim

JDX1000

5.84

2000

60-65

275

Φ3.8*13

Open flow

Central shaft

MFY250

16.5

2500

60-62

320

Φ4.2*13

Open flow

Central shaft

JQS3550

15.6

3530

85-87

380

Φ4.6*14

Circle flow

Central shaft

JSI160-C

14.6

4200

120-135

485





More specification details please contact us directly.



Pictures of Cement mill

Cement ball mill, Cement Mill





Process capacity

Cement ball mill, Cement Mill





Packaging & Shipping

Packaging:  Cement mill body in bulk , motor and spare parts packed in wooden case.

Cement ball mill, Cement Mill



Customer Visit

Cement ball mill, Cement Mill



Our Services

Professional mining equipment supplier with one-site service, Supply range is as follows:



Ore Dressing Equipment: Cement Mill, Slag Mill, Rod Mill, Ball Mill

Crushing/Screening Equipment: Jaw Crusher, Cone Crusher, Impact Crusher, Hammer Crusher, Crushing Plant, Vibrating Screen

Hoisting/Conveyor Equipment: Conveyor, Hoister,

Washing Equipment: Classifier, Flotation Equipment, Magnetic Separator



Installation and commissioning:

If installation and commissioning service is requested, technical person will go to user’s working site for support. Details will be negotiated.



Quality Guarantee:  Guarantee one year from shipment date.


Technical support: Product specification, Use Manual, Technical data and etc will be provided.


Related Spare parts are serviced.
