Wall mount 2.4GHz Inwall indoor wireless wifi access point
indoor wireless wifi access point Description:
2.4GHz 533MHz Atheros9341 Chipset
300Mbps 86 Type Wall Outlet Design
64MB DDR RAM,8MB-16MB SPI
Built-in 3dBi Omni-Directional MIMO2x2 Antenna
50 Users,Cover 100~300m Without Block
2*RJ-45 for 10 / 100Mbps(WAN/LAN,WAN Support 48V POE)
1*Reset Button(Reset&Factory Defaults)
1*RJ-11 Port,1*Phone Line
AP Bridge/Client Bridge/WAN Gateway Mode Supported
Support AC Software Centralized Management
indoor wireless wifi access point Features:
1.Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards
2.Support 2.4GHz LAN networks. Provides up to 300Mbps transmission rate
3.Support Wireless Auto-channel selection
4.Supports WiFI Protection Setup function (WPS) WEP, WPA, and WPA2 to ensure network security from unauthorized access
5.200mw MIMO Built-in 2 omni-directional 3 dBi antenna,easily cover the dead zone of your room.
6.Supports AP Bridge/Client Bridge/WAN Gateway mode,adjustable modes according your needs.
7.Adjustable transmit power,you can control your wireless cover range according different requirement.
indoor wireless wifi access point Specifications:
Hardware | |
Model |
EC-IW48 |
Chipset |
Atheros AR9341 |
Memory |
64MB |
Flash |
8MB-16MB SPI |
Interface |
2*RJ-45 for 10 / 100Mbps(WAN/LAN,WAN Support 48V POE) |
1*RJ-11 Port,1*Phone Line | |
1*Reset Button(Reset&Factory Defaults) | |
Antenna |
3dBi Built-in Omni-directional Antenna |
Power |
48V/IEEE802.af |
RF Parameters | |
Standards |
IEEE802.11b/g/n |
Speed |
300Mpbs |
Modulation Mode |
OFDM:BPSK*6/9Mbps,QPSK*12/18Mbps,16-QAM*24Mbps,64-QAM*48/54Mbps |
DSSS:DBPSK*1Mbps,DQPSK*2Mbps,CCK*5.5/11Mbps | |
MIMO-OFDM : MCS 0-15 | |
Frequency |
2.4~2.483GHz |
Sensitivity |
11n:-70dBm*10% PER |
11g:-70dBm*10%PER | |
11b:-85dBm*8%PER | |
Out Power |
11n:15dBm for OFDM Mode |
11g:17dBm for OFDM Mode | |
11b:20dBm for CCK Mode | |
Software | |
Mode |
AP Bridge/Client Bridge/WAN Gateway |
Standards |
IEEE 802.3(Ethernet) |
IEEE 802.3u(Fast Ethernet) | |
IEEE 802.11b/g/n(2.4G WLAN) | |
Wireless Setup |
Support Multi SSID Channel Selection(1-14 Channel) |
Switch of SSID Broadcasting | |
Support Multi-country Channel | |
Security |
Support 64/128/152Bit WEP Encryption |
WPA / WPA2,WPA-PSK / WPA2-PSK Security Mechanism | |
SSID Hiding;MAC Address Filtering | |
Physical Characteristics | |
Temperature Characteristics |
Working Temperature: 0 ℃ ~ 55 ℃ |
Storage Temperature: -40 ℃ ~70 ℃ | |
Humidity |
5%~95%(Typical) |

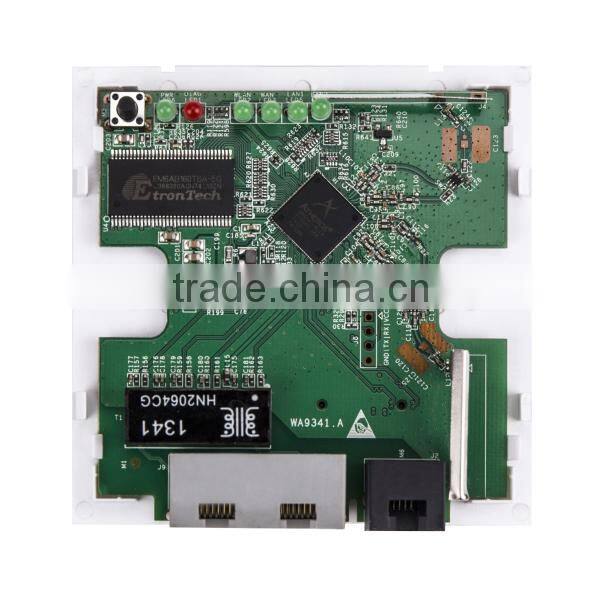

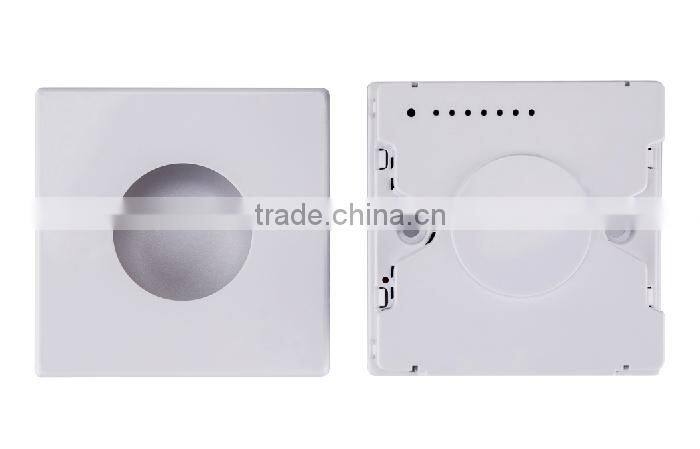

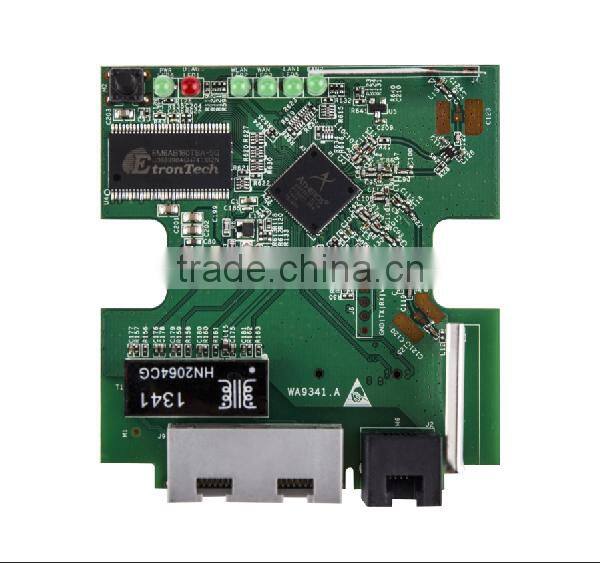

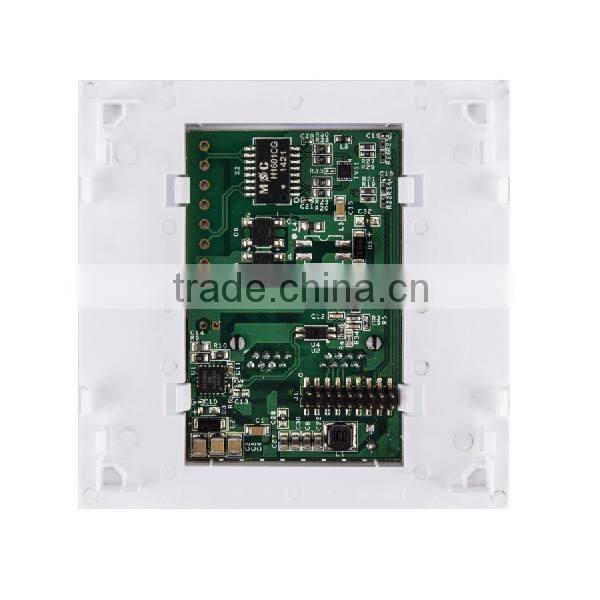

indoor wireless wifi access point`s picture show

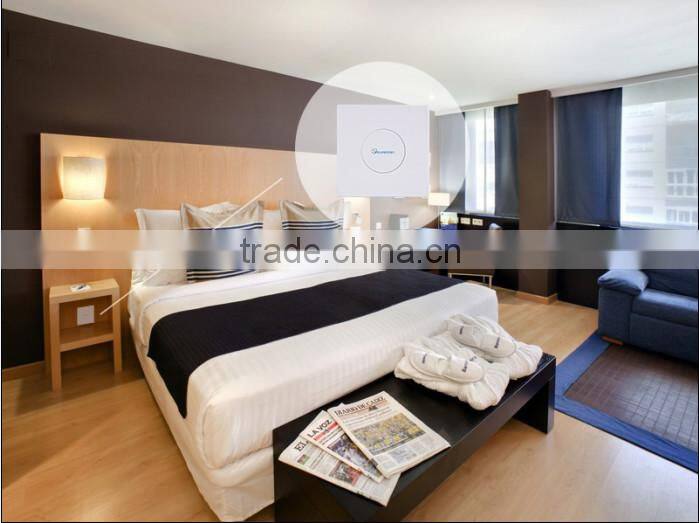

indoor wireless wifi access point`s Application

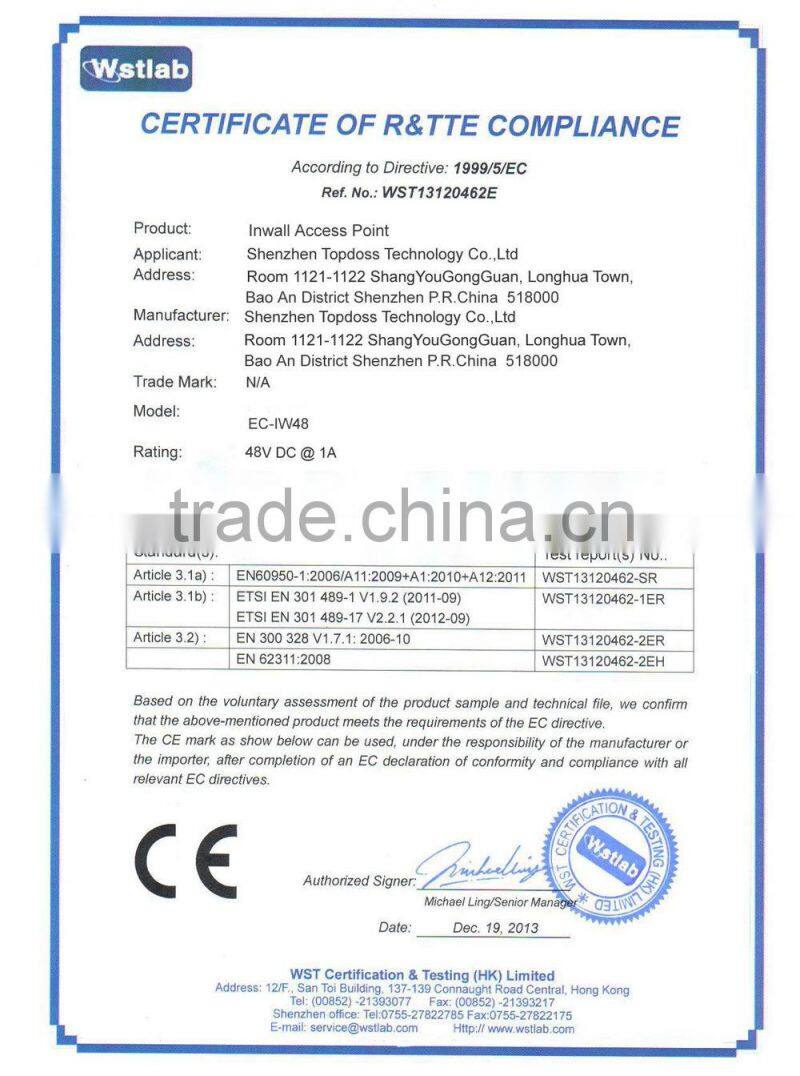

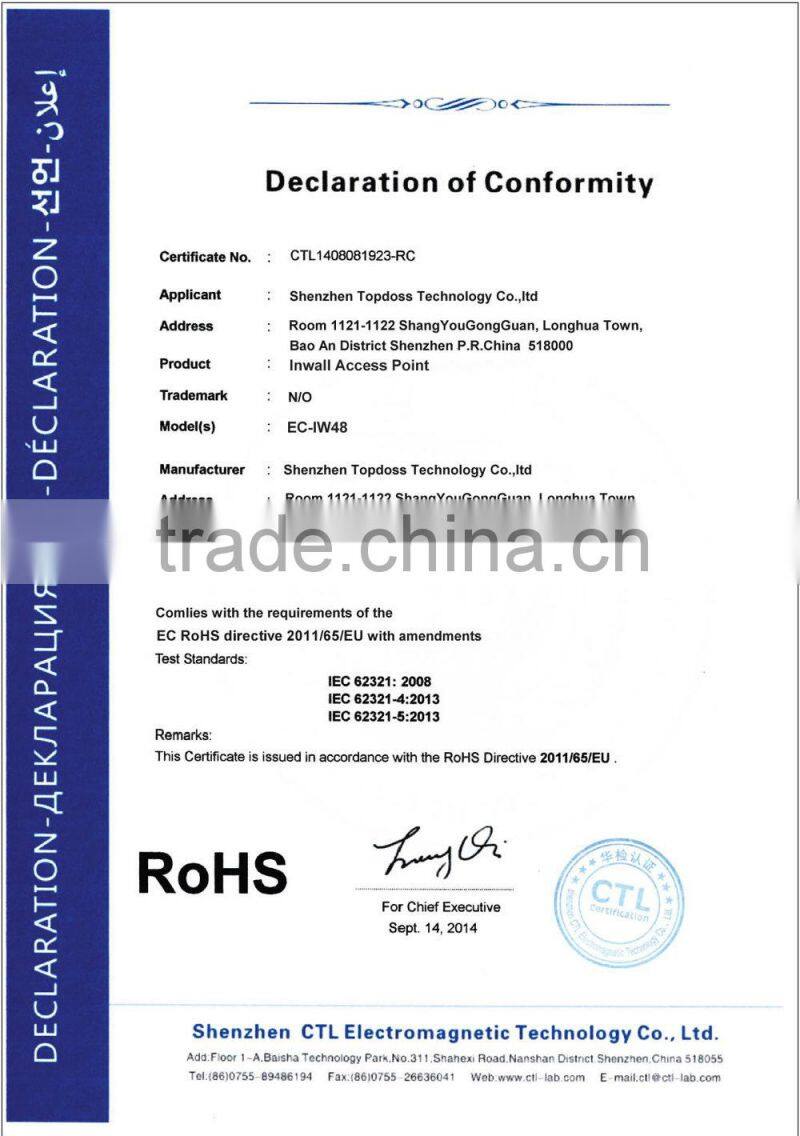

indoor wireless wifi access point`s Certificate
Factory Show
Order indoor wireless wifi access point now !
