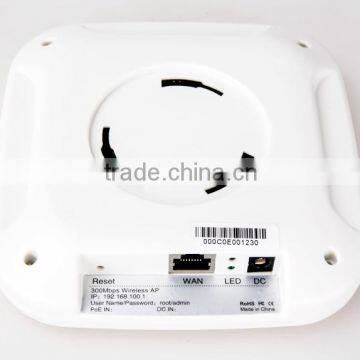

300Mbps Ceiling Mount Wireless Wifi Access Point

Name: 300Mbps Ceiling Mount Wireless Wifi Access Point
Brand: Elifecosy
SKU: 116441647
Availability: InStock

US$ 30 - 40 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Elifecosy

Model Number:

EC-CA48

Shenzhen TopDoss Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Elifecosy

Model Number EC-CA48

300Mbps ceiling mount wireless wifi access point

2.4GHz 533MHz Atheros9341 Chipset

300Mbps Ceiling Mount Design

64MB DDR RAM,8MB-16MB SPI
Built-in 5dBi Omni-Directional MIMO2x2 Antenna
50 Users,Cover 100~300m Without Block
Support 48V POE,1*RJ45 Interface

1*Reset Button,1*Power DC Jack,2*LED

AP Bridge/Client Bridge/WAN Gateway Mode Supported

Support AC Software Centralized Management

1.Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards

2.Support 2.4GHz LAN networks. Provides up to 300Mbps transmission rates

3.Support Wireless Auto-channel selection

4.Supports WiFI Protection Setup function (WPS) WEP, WPA, and WPA2 to ensure network security from unauthorized access

5.200mw MIMO Built-in 2 omni-directional high-gain 5 dBi antenna,easily cover the dead zone of the room.

6.Supports AP Bridge/Client Bridge/WAN Gateway mode,adjustable modes according your needs.

7.Adjustable transmit power,you can control your wireless cover range according different requirement.

Hardware
Model	EC-CA48
MCU	Atheros AR9341
Memory	64MB DDR RAM
Flash	8MB-16MB SPI
Interface	1*RJ-45 for 100 Mbps WAN/LAN Port(Support 48V POE)
	1*Reset Button(Reset&Factory Default)
	1Power DC Jack;2LED
Antenna	Built-in 5dBi Omni-Directional
Power	802.3af,48VPOE,110V/220V
RF Parameters
Standards	IEEE 802.11b/g/n
Speed	300Mpbs
Modulation Mode	OFDM=BPSK,QPSK,16-QAM,64-QAM
	DSSS=SBPSK,DQPSK,CCK
Frequency	2.4~2.4835GHz
Sensitivity	802.11n(2.4GHz)	802.11g	802.11b
	-90dBm*MCSO	-90dBm*6Mbps	-95dBm*1Mbps
	-70dBm*MCS7	-72dBm*54Mbps	-90dBm*11Mbps
	-90dBm*MCS8
	-68dBm*MCS15
Transmit power	Adjustable 17dBm-23dBm 100-200mw
Software
Mode	AP Bridge/Client Bridge/WAN Gateway
Standards	IEEE 802.3(Ethernet)
	IEEE 802.3u(Fast Ethernet)
	IEEE 802.11b/g/n(2.4G WLAN)
Wireless Setup	Support Multi SSID Channel Selection(1-14 Channel)
	Switch of SSID Broadcasting
	Support Multi-country Channel
Security	Support 64/128/152Bit WEP Encryption
	WPA / WPA2,WPA-PSK / WPA2-PSK Security Mechanism
	SSID Hiding;MAC Address Filtering
Physical Characteristics
Temperature Characteristics	Working Temperature: 0 ℃ ~ 55 ℃
	Storage Temperature: -40 ℃ ~70 ℃
Humidity	5%~95%(Typical)
