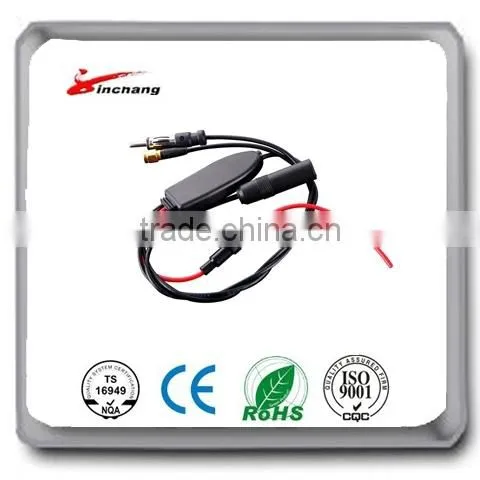

Help Center(Manufactory) High Quality Car Radio Power Antenna DAB&DVB Splitter
Related Products
-
(Manufactory) Free Sample High Quality High Dbi Outdoor Wifi Long Range Omni Antenna 10kmUS$ 0.5 - 2MOQ: 20 Pieces -
(Manufactory) Free Sample High Gain Tracker With Gps-gsm Combination AntennaUS$ 5 - 8MOQ: 100 Pieces
-
(Manufactory) Wcdma Auto/car/vehicle Antenna Gsm AntennaUS$ 3 - 6MOQ: 100 Pieces
-
(Manufactory) High Quality Free Sample Portable Standby Long Time Battery Gps Personal Equipment TrackerUS$ 1 - 4MOQ: 100 Pieces
-
(Manufactory)Free Sample High Quality Car Antenna GsmUS$ 0.5 - 2MOQ: 50 Pieces
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: jinchang
- Model Number: JCD714
- Radome Material: ABS
- type: car radio antenna amplifier
1. Electrical Characteristics
1.1 GSM Antenna
Form 1
No. |
Item |
Specifications |
1 |
Frequency(MHz) |
525~1605KHz/88~108MHz/174~237MHz
|
2 |
V.S.W.R(in BW ) |
<2.0:1 |
3 |
Gain(Zenith) |
AM/FM:10±2dB DAB:20±2dB |
4 |
Wave Band |
AM/FM/DAB BⅢ |
5 |
Impedance |
50 Ω |
6 |
Noise Figure |
<3.0 |
7 |
Supply Voltage |
9~24V DC |
8 |
Current Consumption |
26~28mA |
1.2 Mechanical
Form 2
No. |
Item |
Specification |
1 |
Cable | RG174 |
2 |
Connector |
Car Antenna Plug&Socket MCX or others |
3 |
Fus |
500mA |
4 |
PCB |
FR4 |
5 |
Plastic Housing |
ABS |
5. Environmental Specifications
Operating Temperature -40°C~+85°C
Relative Humidity Up to 75%
Vibration 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly ROHS Compliant
Advantages:

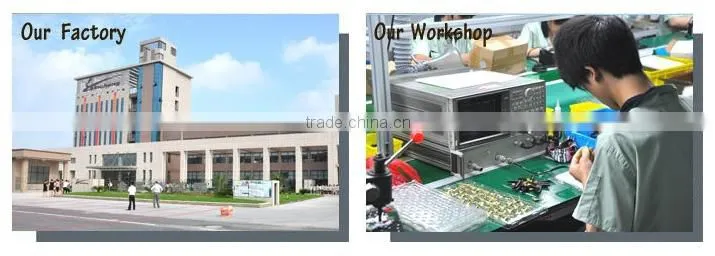

1.We have our own factory, offering dozens of antenna lines and over 20 R&D personnel.
2.We can make your own bespoke designs and samples to order.
3.We have an impressively quick reaction time to all your orders and requests, pre-production.
4. In Jinchang's R&D office, the Technical personnel to meet various requirements for you.
