Help Center(Manufactory) Free Sample High Gain Tracker With Gps-gsm Combination Antenna
Related Products
-
(Manufactory) Wcdma Auto/car/vehicle Antenna Gsm AntennaUS$ 3 - 6MOQ: 100 Pieces -
(Manufactory) High Quality Free Sample Portable Standby Long Time Battery Gps Personal Equipment TrackerUS$ 1 - 4MOQ: 100 Pieces
-
(Manufactory)Free Sample High Quality Car Antenna GsmUS$ 0.5 - 2MOQ: 50 Pieces
-
(Manufactory) GSM 3G Antenna With SMA ConnectorUS$ 1 - 2MOQ: 100 Pieces
-
(Manufactory)Free Sample 3g Frequency AntennaUS$ 0.5 - 2MOQ: 50 Pieces

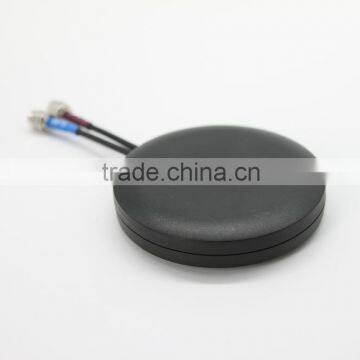

gps-gsm combination antenna
1.Electrical Characteristics
1.1 Dielectric Antenna
Form 1
No. |
Item |
Specifications |
Post Environmental Tolerance |
1 |
Center Frequency |
1575.42 MHz |
±3 MHz |
2 |
Band Width |
±5 MHz |
±1 MHz |
3 |
V.S.W.R(in BW) |
1.5:1 |
— |
4 |
Gain(Zenith) |
3 dB |
±0.5 dB |
5 |
Polarization |
RHCP |
— |
6 |
Impedance |
50 Ω |
— |
1.2 LNA/Filter
Form 2
No. |
Item |
Specifications |
Post Environmental Tolerance |
1 |
LNA Gain |
28±2 dB |
±2.5 dB |
2 |
Noise Figure |
1.5 dB |
— |
3 |
Filter Out Band Attenuation |
12dB Min f0+50MHz 16dB Min f0-50MHz |
±1.0 dB |
4 |
DC Voltage |
2.2~5 V |
|
5 |
DC Current |
5~15 mA |
|
1.3 GSM Antenna
Form 3
No. |
Item |
Specifications |
1 |
Frequency |
824~894 MHz/1710~1990 MHz 880~960 MHz/1710~1990 MHz |
2 |
V.S.W.R(5m) |
≤2.0:1 |
3 |
Gain(Zenith) |
2 dBi |
4 |
Impedance |
50 Ω |
3.4 Mechanical
Form 4
No. |
Item |
Specification |
1 |

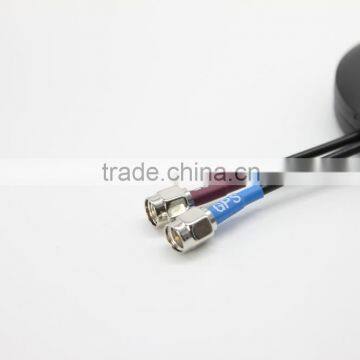

Cable |
RG174 3m/5m or others |
2 |
Connector |
SMB or others |
3 |
Plastic Housing |
Black |
4 |

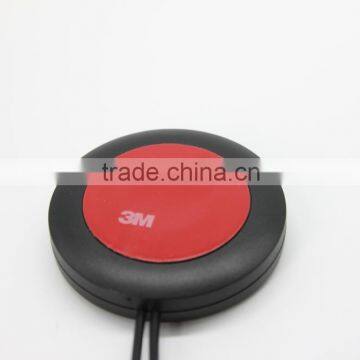

Mounting |
Magnet/Adhesive/Screw |
Advantages:

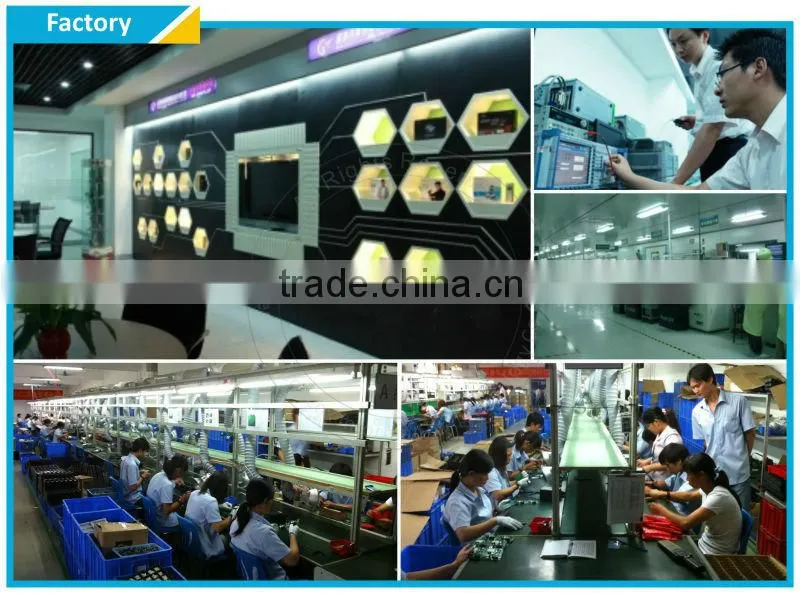

1.We have our own factory, offering dozens of antenna lines and over 20 R&D personnel.
2.We can make your own bespoke designs and samples to order.
3.We have an impressively quick reaction time to all your orders and requests, pre-production.
4. In Jinchang's R&D office, the Technical personnel to meet various requirements for you.
If you want to know more information about our products welcome to contact us in any time, And welcome to our company! We display more new products in our showroom.
