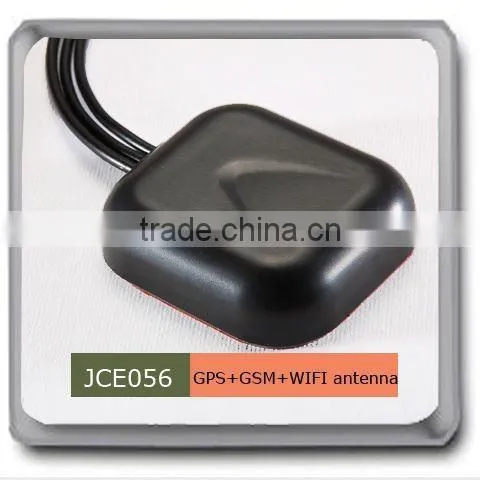

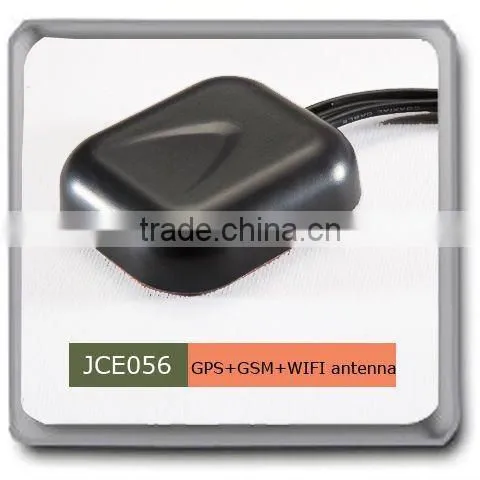

(Manufactory) high performance GPS+GSM+WIFI combination antenna
- 10000 Piece / Pieces per Month
- shanghai
- T/T Credit Card
-
Cisco Fiber Switches N9K-C93180YC-FX
-
SIERRA AR7586
-
Quectel LC29D GPS Beidou Inertial Guidance Module
-
telit 4G module LE910C4-NF
-
Acrel 4G LORA communication AWT200-1E4S1-4G/LR Intelligent data communication gateway, supports 4-way serial port
-
Acrel Wireless communication terminal Supports centralized collection of up to 10,000 points AWT200-1E8SL
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | JIASHAN JINCHANG | Model Number: | JCE056 |
Product Description
Automative antenna application
• Military
• Car navigation
• AVL/Fleet Management
• Vehicle tracking
• Weather balloon
• Security surveillance
• External antenna for handheld
• Avionics GPS antenna
• External antenna for battery operated handheld receivers
• Router and so on
PARTNERS
Electrical Characteristics
1.1 Dielectric Antenna
No. | Item | Specifications | Post Environmental Tolerance |
1 | Center Frequency | 1575.42 MHz | ±3 MHz |
2 | Band Width | ±5 MHz | ±1 MHz |
3 | V.S.W.R(in BW) | 1.5:1 | — |
4 | Gain(Zenith) | 3 dB | ±0.5 dB |
5 | Polarization | RHCP | — |
6 | Impedance | 50 Ω | — |
1.2 LNA/Filter
No. | Item | Specifications | Post Environmental Tolerance |
1 | LNA Gain | 28±2 dB | ±2.5 dB |
2 | Noise Figure | 1.5 dB | — |
3 | Filter Out Band Attenuation | 12dB Min f0+50MHz 16dB Min f0-50MHz | ±1.0 dB |
4 | DC Voltage | 2.2~5 V | |
5 | DC Current | 5~15 mA | |
1.3 GSM Antenna
No. | Item | Specifications |
1 | Frequency | 824~960 MHz/1710~1990 MHz |
2 | V.S.W.R(5m) | ≤2.0:1 |
3 | Gain(Zenith) | 2 dBi |
4 | Impedance | 50 Ω |
1.4 WiFi Antenna
No. | Item | Specifications |
1 | Frequency | 2400~2500 MHz |
2 | V.S.W.R(5m) | ≤2.:1 |
3 | Gain(Zenith) | 0 dBi |
4 | Impedance | 50 Ω |
1.5 Mechanical
No. | Item | Specification |
1 | Cable | RG174 3m/5m or others |
2 | Connector | SMA/SMB/MCX or others |
3 | Plastic Housing | Black |
4 | Mounting | Magnet/Adhesive |
Working environment
Main process
Cable striping Connector Pumping Soldering Testing
Advantage
1. Main products: GPS/GLONASS/COMPASS antenna,4G/3G/2G GSM/GPRS antenna,WIFI antenna as well as combination antennas, Various cable assemblies and connectors are also available.
2. Certification:CE,TUV,FCC,TS16949,ISO9001:2008,Reach certificated,comply to ROHS.
3. Capacity: 30,000 units daily, 25000 square meter factory area,over 200 workers.
4. QC:whole sets of Agilent test equipment to assure quality.
5. Business partners: Amphenol(China,India,Malaysia),ARC wireless solution in USA, Teltonika in Lithuania, Telit in Israel, NEC in Japan and so on.
PAQ
Q: Can I get one sample?
A: Yes, sample is for free.
Q: Have automative GPS antenna 100% assembles well in stock?
A: No, all automative GPS Antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your factory?
A: Sure, welcome any time.
Contact Us
- Jiaxing Jinchang Electron Technology Co., Ltd.
- Contact nameYuki Zheng
- Phone86-571-28290573
- AddressNorth Side(4/F, 1th Building, Wanli Petrochemical limited liability company), No. 4 bridge, Chengnan Road, Economic Development Zone Jiaxing,Zhejiang
-
