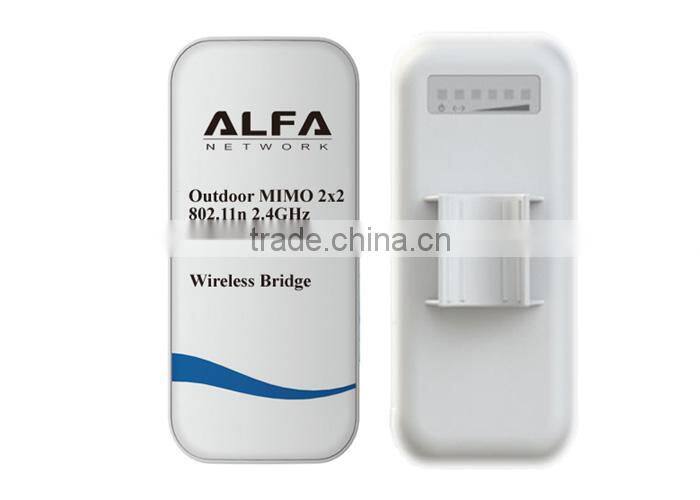

ALFA Network 2.4 Ghz Wireless Outdoor CPE Router AP/Bridge

Name: ALFA Network 2.4 Ghz Wireless Outdoor CPE Router AP/Bridge
Brand: ALFA
SKU: 116437641
Availability: InStock

US$ 1 - 50 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ALFA

Model Number:

ALFA-A2S

Shenzhen TopDoss Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ALFA

Model Number ALFA-A2S

Specifications

1:ALFA network 2.4 ghz Wireless Outdoor CPE Router AP/Bridge
2.32MB SDRAM 8MB Flash
3.Outdoor cpe
4.IEEE802.11a/n

ALFA network 2.4 ghz Wireless Outdoor CPE Router AP/Bridge

Features	TDMA
CPU	Processor Specs Atheros, MIPS 24KC, 400MHz
Flash	32MB SDRAM
Memory	8MB Flash
standard	Complete IEEE 802.11N AP
Networking Interface	1 x 10/100 Base-TX (Cat.5, RJ-45) Ethernet Interface
Integrated	2x2 Mimo Antenna
Max VSWR	1.4:1
model	AP/WDS/Client/Router
speed	150mbps
Wireless Approvals	FCC Part 15.247, IC RS210
Mimo Antenna	8.5DBi
Polarization	Dual Linear
Cross-pol Isolation	20dB minimum
H-pol Beamwidth	60°
V-pol Beamwidth	60°
Elevation Beamwidth	60°
Power Consumption	5.5Watts
Enclosure	Outdoor UV Stabilized Plastic
Power Supply	24V, 0.5 surge portection integrated POE adapter included
Power Method	Passive PoE (pairs 4,5+; 7.8 return)
Operating Temp	-30°C to +80°C
Operating Hum	5 to 95% Condensing
Wifi range	3-5km
Ferquency	2.4GHz
T×Power/RX Sen	23dBm, +/-2dB / -96dBm +/-2dB
Power supply	110-240VAC 24VDC 0.5A US-style plug 500mw outdoor CPE
weight	0.18kg
Box Includes	Base Unit poe 24v/0.5A
interface	1* RJ-45Ethernet
