Battery Voltage Capacity Checker/Balance Discharger/Servo Tester
Specifications:
Function:
Item Name: CellMeter 8
Discharge Current: 1A
Balance Current: 1A
Battery Voltage Test Precision: 0.001V

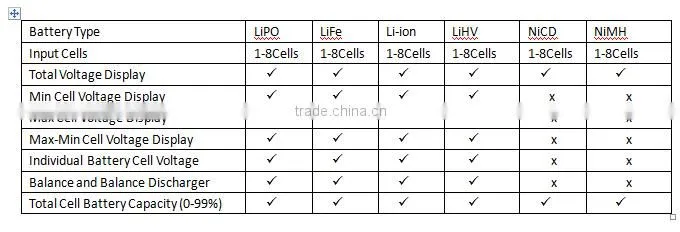

Battery Type: Can test Li-Po/Li-lon/Li-Fe/Li-HV(2-8S),NiCd/NiMH(4-8S) battery
Servo Test Range: 1000-2000us or 500-2500us
Support Battery Type; Lipo, LiFe, Li-ion, LiHV, NiCd, NiMH

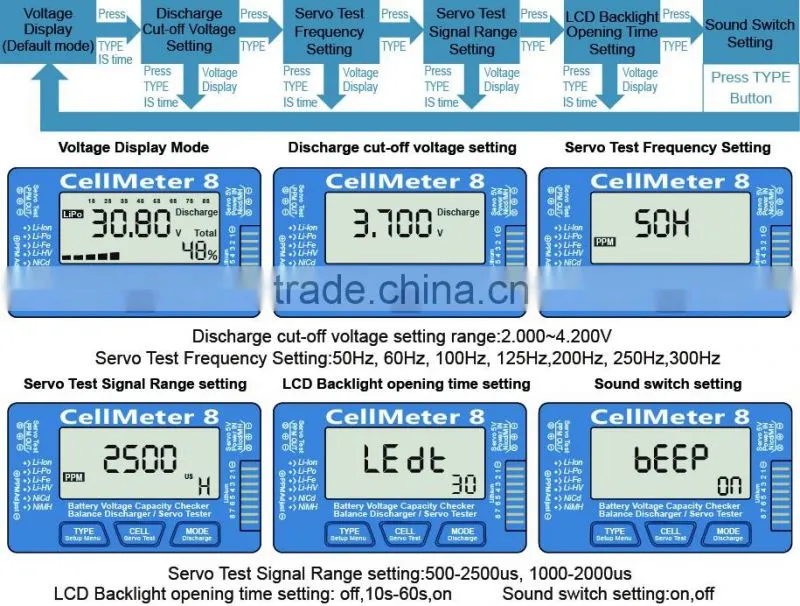

Servo Test Mode; Manual Adjustment, Automatic, Neutral
Servo Test Frequency:50Hz,60Hz,100Hz,125Hz,200Hz,250Hz,300Hz
Balance Discharge Current:90Ma x 8 Cell,(MAX@ Cell, Voltage=4.2V)
Display Mode; Battery Cell Voltage, Total voltage, Lowest cell voltage. Highest cell voltage, Voltage gap between highest cell voltage and lowest cell voltage, Remaining Battery Capacity(%)
Instruction

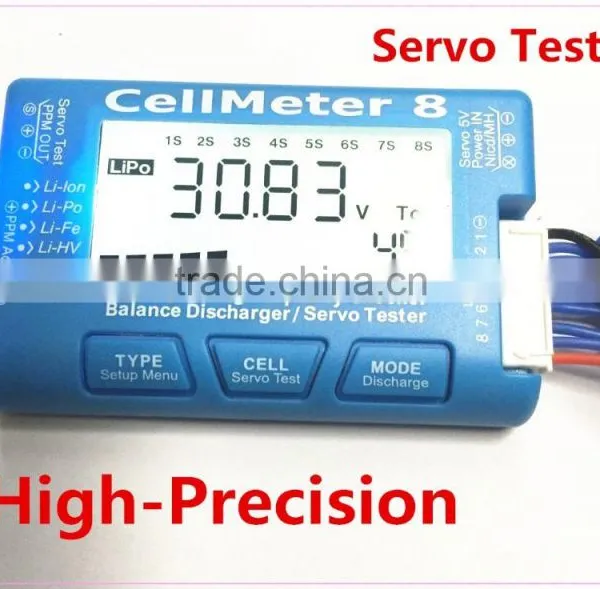

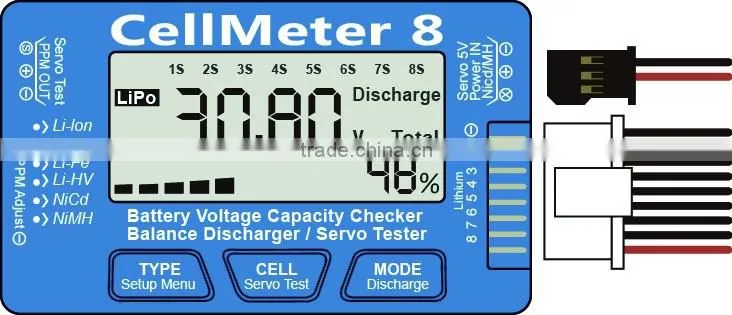

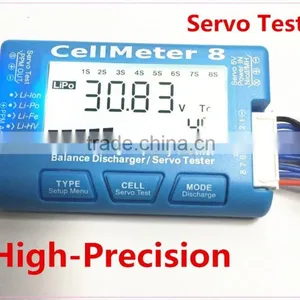

Cellmeter8 is a clever device that can show you the condition of your battery packs,
It can be used with the most common battery types used for the rc modeling namely
LiLon( Lithium lon)
LiPo(Lithium Polymer)
LiFe(Lithium Ferrite)
LiHV(High Voltage Lithium Battery)
NiCd( Nickel Cadmium)
NiMH(Nickel Metal Hydrate)
Lithium Battery Types( Lipo.Li-Ion,LiFe, LiHV ) without the need for the additional power supply, CellMeter 8 can support 2S-8S,Test 1S Lithium battery, you need to access more than 3S of Nickel Batteries, or 5V UBEC to NiCd/MH port for the Cellmeter8 to provide working power
Nickel Battery type ( NiCd or NiMH) without the need for additional power supply of cellmeter8 can support 4-8S , such as the need to test less than 4S of Nickel Batteries, you need to access2-8S Lithium Battery to the Lithium port for CellMeter8 to provide working power
(Can simultaneously connect Lithium battery and Nickel battery)
