Specifications
pp yarn string wound filter cartridge machine1.High production
2.Less electric consumption
3.Approved CE
PP String wound filter making machine
Factory Introduction:
Wuxi Hongteng Plastic Machinery Factory built at 1989, is a leading manufacturer and inventor of pp melt blown filter cartridge machine ,pp winding filter cartridge machine and cto actived carbon filter cartridge machine .
Machine application
The cotton water filter cartridge making machine(PP yarn winding filter cartridge machine,PP string wound filter cartridgemachine,pp water cartridge filter making machine,pp and cotton string wound cartridge filter making machine)
is mainly used in the fields of water purification, Beverage, foodstuff, chemical, grases, pharmaced utical, electronics, environmental protection etc, it’s a dedicated machine for the winding of different yarms. This sinding machine features noveddsign, high speed, low noise, high productivity, and good yarnforming ability. When the yarn full buzzer alarms, the machine will stop automatically. This machine has many advantage as such as easy operation; convenient and puick yearn change ,low energy consumption.

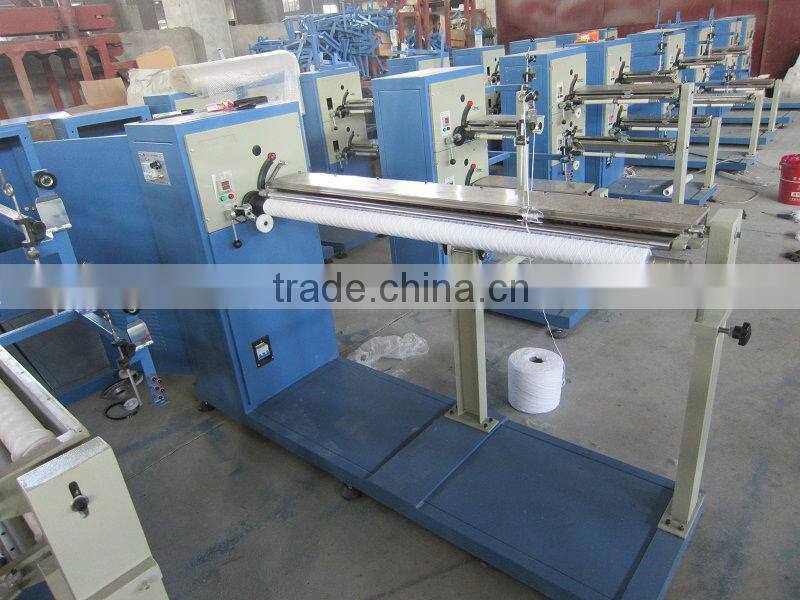

PP yarn winding filter cartridge machine
PP winding filter machine is mainly used in the fields of water purification, beverages, foodstuff, chemical, greases, pharmaceutical, electron, environmental protection etc. it’s a dedicated machine for the winding of different yarns, threads on
filter cores,characterized by high speed, good yarn/ thread shape, automatic stop at yarn/thread’s fullness, prompt yarn/thread replacing and low energy consumption etc.
Technical parameters
Winding speed of winder:60-320m/min
Max. diameter of winding:200mm(limited range of diameter larger than 200mm is available subject to the order of customer).
Power supply: AC380/220V,50Hz
Power of motor:180w/spindle
Speed of motor:2800r/min
Winding Frame Material: Polypropylene, stainless steel etc., on client’s request.
Winding Frame Inside Dia: 26,28,29,30,32,40,65mm etc.
Winding Reciprocation Stoke: It’s generally:
5″(125+2mm),10″(250+4mm),20″(500+8mm),
30″(750+12mm),40″(1000 +16mm),50″(1250 +20mm),
60″(1500+24mm),70″(1750 +28mm),80″(2000 +32mm),
(Limited range of other reciprocation stroke is available subject to the order of customer).
Dimension of single panel: (W×H)390×308mm
PP winding filter cartridge machine ,high speed,good yarn/thead shape,automatic stop at yarn/thread's fulness,prompt yarn
/thread replacing amd low power consumption etc.is suitable for the winding of different yarms,threads on filter cores.PP winding filter can effectively filter suspended matter,particle in liquid.
| Model | Length can be done | Production capacity can be done |
| 1 | 10''&20'' | 80pcs of 10'' per hour,50~60pcs of 20'' per hour |
| 2 | 30''&40''.......100'' | 30~40pcs of 30'' per hour and 20~25pcs of 40'' per hour |

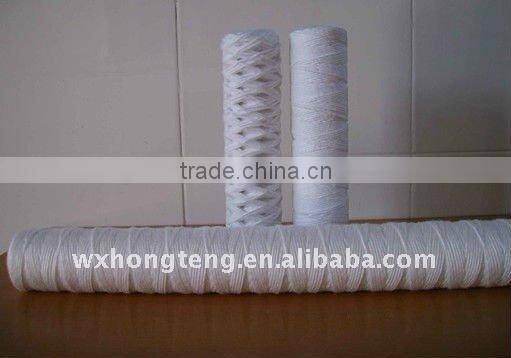

Products display
After sale service
We provide one year after sale service,We will provide new parts if yours is broken without human factor.

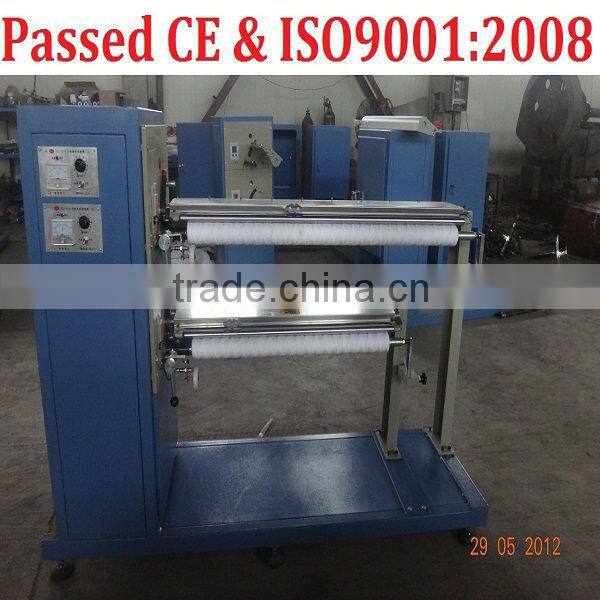

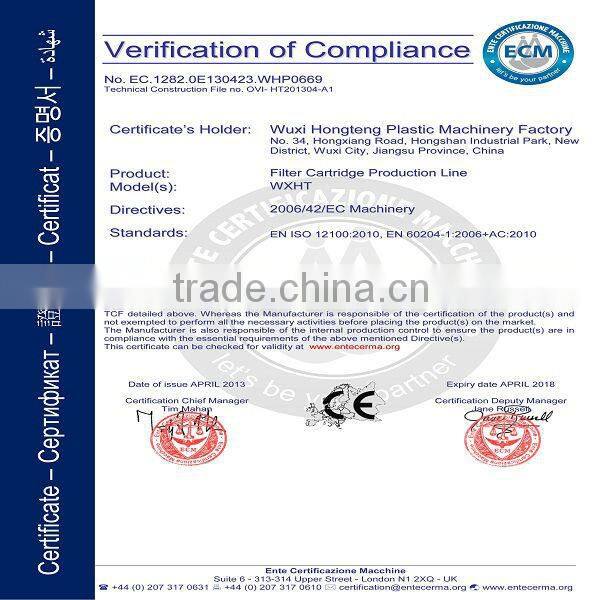

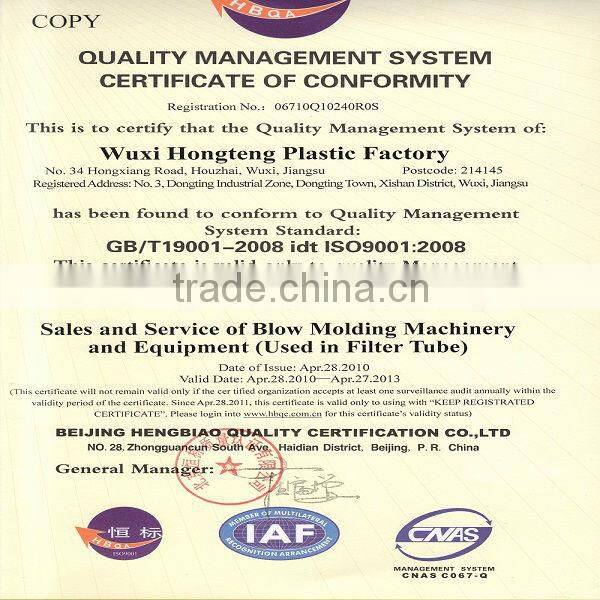

CE certificate and ISO 9001:2001

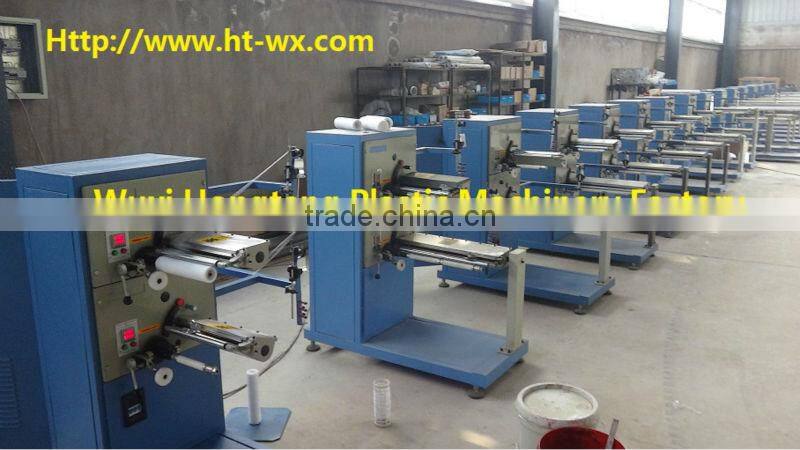

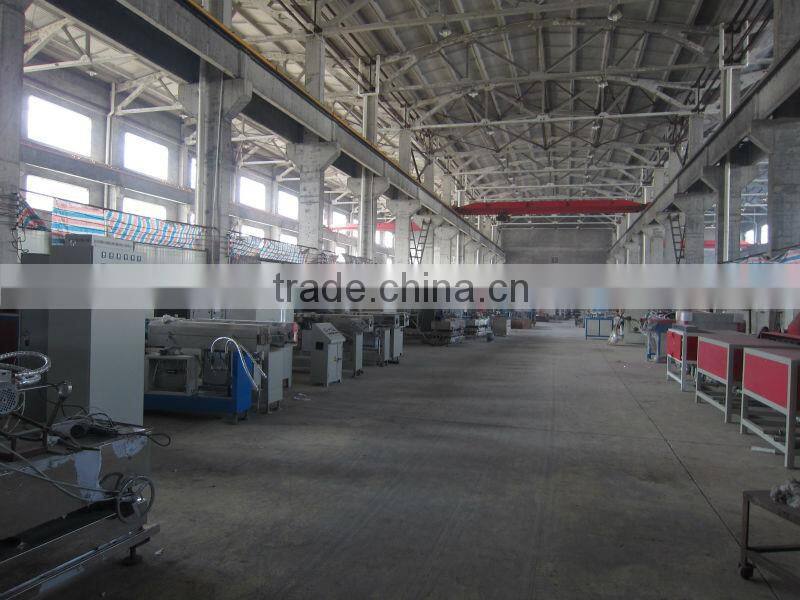

Workshop

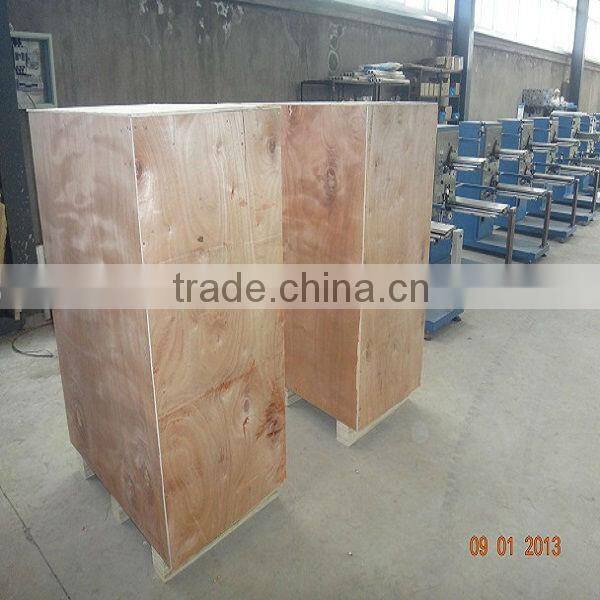

Package
International water exhibition we attended in Shanghai and India
Pls contact us if you are interested in our machines. We could supply best support to you.
