Jiangsu Hongteng Manufacture Supply string winding machine

Specifications

PP winding filter making machine

Factory Introduction:

Wuxi Hongteng Plastic Machinery Factory built at 1989, is a leading manufacturer and inventor of pp melt blown filter cartridge machine ,pp winding filter cartridge machine and cto actived carbon filter cartridge machine .

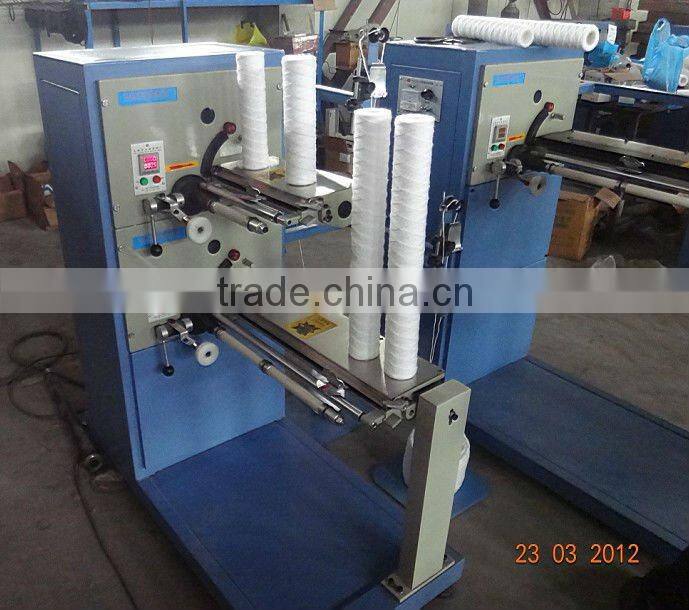

PP yarn winding filter cartridge machine

PP winding filter machine is mainly used in the fields of water purification, beverages, foodstuff, chemical, greases, pharmaceutical, electron, environmental protection etc. it’s a dedicated machine for the winding of different yarns, threads on

filter cores,characterized by high speed, good yarn/ thread shape, automatic stop at yarn/thread’s fullness, prompt yarn/thread replacing and low energy consumption etc.

Brief Introduction to the structure

1 The equipment is generally assembied into a screen with 2 spindles or 1 spindle.

thread-divding winder of this company can be sorted by its winding length into:

5″(125+2mm),10″(250+4mm),20″(500+8mm),

30″(750+12mm),40″(1000 +16mm),50″(1250 +20mm),

60″(1500+24mm),70″(1750 +28mm),80″(2000 +32mm),

The machine is attached with thread clamp and other parts for production upon delivery.

2 Each spindle wider has a motor driving winding, and can be solely controlled for on/off.

3 To-and –fro pole's moving in guide slot makes thread-guiding device bace-and –forth moving, and makes thread winding to-and-fro on the tube.

4 Drop tube organism

Technical parameters

Winding speed of winder:60-320m/min

Max. diameter of winding:200mm(limited range of diameter larger than 200mm is available subject to the order of customer).

Power supply: AC380/220V,50Hz

Power of motor:180w/spindle

Speed of motor:2800r/min

Winding Frame Material: Polypropylene, stainless steel etc., on client’s request.

Winding Frame Inside Dia: 26,28,29,30,32,40,65mm etc.

Winding Reciprocation Stoke: It’s generally: 5″(125+2mm),10″(250+4mm),20″(500+8mm),

30″(750+12mm),40″(1000 +16mm)

(Limited range of other reciprocation stroke is available subject to the order of customer).

Dimension of single panel: (W×H)390×308mm

PP winding filter cartridge machine ,high speed,good yarn/thead shape,automatic stop at yarn/thread's fulness,prompt yarn

/thread replacing amd low power consumption etc.is suitable for the winding of different yarms,threads on filter cores.PP winding filter can effectively filter suspended matter,particle in liquid.

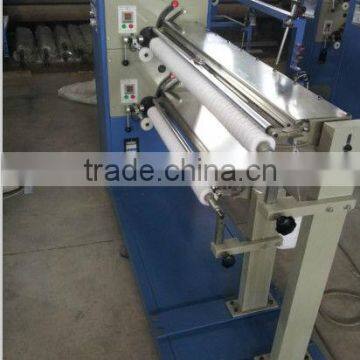

Products display

After sale service

We provide one year after sale service,We will provide new parts if yours is broken without human factor.

CE certificate and ISO 9001:2001

Workshop

Package

 International water exhibition we attended in Shanghai and India

Pls contact us if you are interested in our machines. We could supply best support to you.
