Specifications
1.hotel card key system lock2.lock lifespan 15 years,1 year warranty
3.Battery life 1 year
4.hotel card key system lock
hotel card key system lock with free software
1. hotel key lock advantages:
1)hotel electric lock system luxurious and elegant humanization design bring your guests fabulous unique visual enjoyment
2)hotel electric lock system made of pure copper,ensure durable quality and colour eternally not change
3)hotel electric lock system are very popularly used all over the world, and have huge market.
4)hotel electric lock system have more than 10 years life span
5)hotel electric lock system chips adopt from brand like Philips,Atmel,the sealed process enable preventions from moisture,mould,bacteria
6)4pcs AA NO.5 battery can use one year
7)intelligent electric lock system
2. intelligent hotel key lock system
components:Hotel Door Lock,encoder,cards,software,recorder,energy saving switch
card ncoder can issue different kinds of card,eg. guest card,master card,loss card etc, to execute rank management.
RFID card
3. hotel key lock Packing:
One piece per box(293mm*175*154, G.W.:3.4kg. ).
10 boxes per carton(654mm*335mm*330mm,G.W.:34kg. )
Delivery:Within 10 working days after we received 100% down payment.
Payment Terms: 100% by T/T in advance
warranty : one year.
4. hotel key lock parameter
| intelligent lock system | |
| A. System Construction | ONLENSE set of locks, computer, management software, Encoder, RF card, energy saving switch |
| B. working theory | install software to computer, card encoder can issue different kinds of card,eg. guest card,master card,loss card etc, to execute rank management. |
| C. Multiple functions | |
| 1. Five levels of control | General control, building control, floor control, area control and room control. |
| 2. Password control | System password and operating password together to ensure security. |
| 3. Cipher coding to key card | Each card has a different code that cannot be copied. Compulsory decoding will destroy the card automatically. |
| 4. Area control | Cards of different types and levels can open different locks in different locations. |
| 5. Timing control | Working clock is set inside locks to control the effective time limit of card keys. |
| 6. File record | All issued card keys have records including each opening(also mechanical key opening). |
| 7. Loss reporting | Open function can be cancelled when the card is missed |
| D.Basic Technical Functional Index | |
| 1. Power Supply | DC6V, use of 4 pieces of No. 5 (or No. 7) AA batteries, with lack of voltage indications. |
| 2. Static Power Supply | <1u A> |
| 3. Dynamic Power Supply | About 200mA |
| 4. Lifetime of battery | For the allowed door open times, it normally can exceed 10, 000 |
| 5. Inductive Distance | 3-10cm |
| 6. Record inside the lock | 976 lines for standard type |
| 7. Setting Requirement | Working temperature -20'C~70º C, humidity: 98%max |
| 8. Anti-static Electricity | Totally closing status, the problem of static electricity is resolved |
5. detail features of hotel key lock
|
Philip brand chip.
World famous Philip chip, make sure the lock stable, reliable, and safety. |
|
|

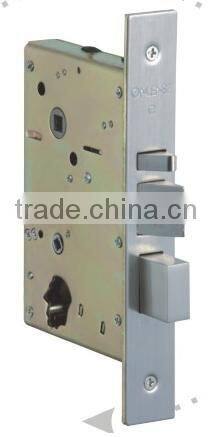

Two different mortises.Two kinds of mortises available, A for European standard and C for American standard, made by stainless steel high quality.
Mortise C |
|
| Morstise A : European Standard for deadbolt automatically. Door thickness should be 30~60mm and door side deep distance(Distance from door side to the center of door hole) should be 80mm.If the door is with decorative bar, the distance from door side to the decorative bar should be over 90mm. |
|
| Stainless steel key part axis.The key part axis, take over all forces when open the door,so the stainless steel material enable it can be used over1 million times. |
|
| Warning function.A warning tone, indicate when batteries are low or the door is not shut properly or any unormal actions to the lock. | |
6. hotel key lock certificates: CE

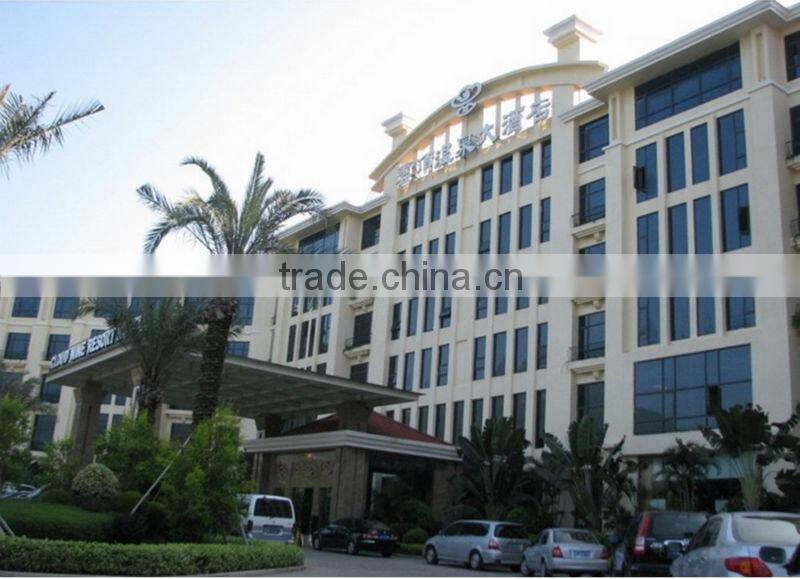

7. hotel key lock suitable for 4 or 5 star hotels
