Item No.: S200RF | |
Name |
school smart card lock |
Meterial |
zinc alloy |
Colors |
silver and golden |
Software |
no need software and software control for choice |
Inductive distance |
3-10MM |
Unlocking way |
Smart card and key |
Application |
hotel,apartment,school,business office |
Durable zinc alloy material of school smart card lock
Easy installation of school smart card lock
Standard single latch, adjustable for 60/70mm backset. Just remove the existing knob lock, no need drill hole.
Two unlocking ways of school smart card lock
Smart card and Mechanical key (Override in case of out of battery power)

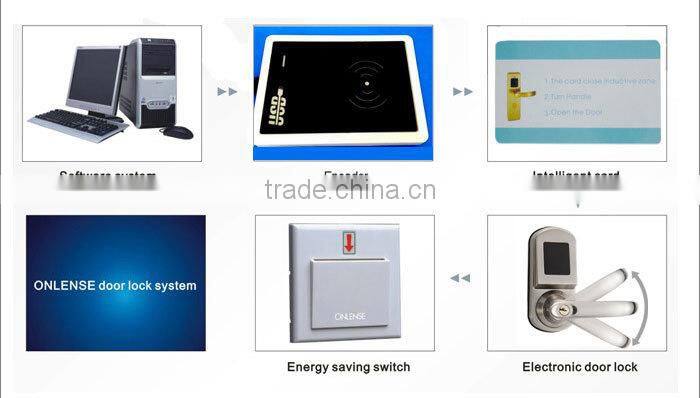

System components of school smart card lock
1. Standlone type: no need software management and system components
2. Hotel system: Hotel door lock, encoder, cards,software, recorder,energy saving switch
Card encoder can issue different kinds of cards, e.g. guest card, mater card,loss card etc, to excute rank management.
Anti-moist and anti-dust function of school smart card lock
ANSI single latch or European mortise E for choice of school smart card lock
| Morstise E : | |
| European Standard with deadbolt by hand |
Door thickness should be 30-58mm and door side deep distance(Distance from door side to the center of door hole) should be 80mm.If the door is with decorative bar, the distance from door side to the decorative bar should be over 90mm. |
| Single latch |
Latch is made of 304 stainless steel with adjustable 60-70mm |
Extra power supply for school smart card lock
In case the lock out of battery

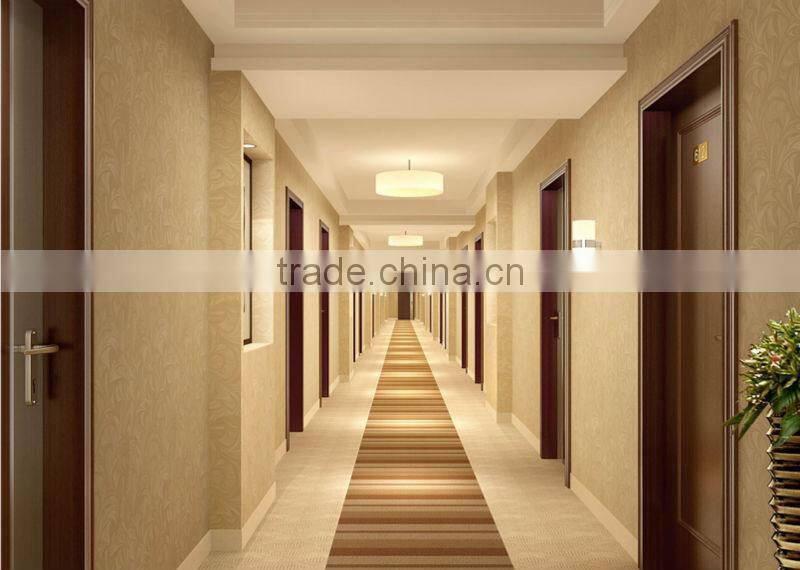

Application for school smart card lock
Hotel, apartment, school, factory and so on.
Dissociative structure of school smart card lock

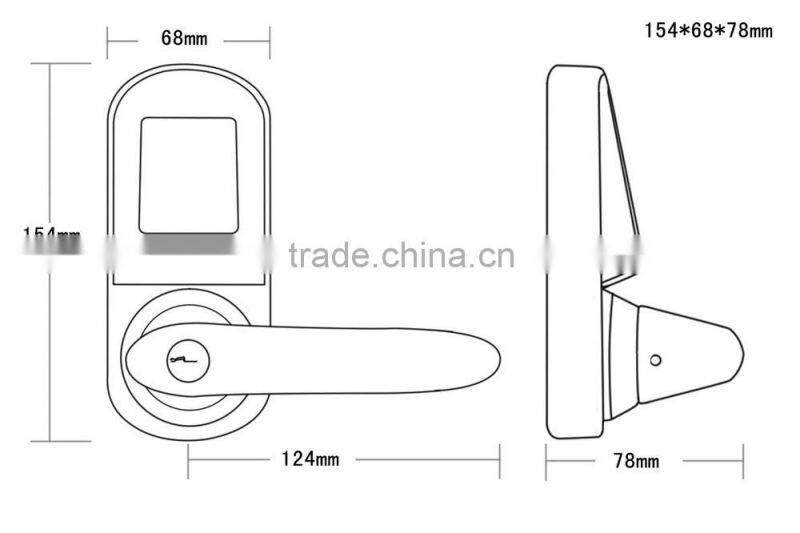

Size of school smart card lock (mm
Safe individual inner packing box for school smart card lock
One piece per box(293mm*175*154, G.W.:2.5kg. ).
10 boxes per carton(654mm*335mm*330mm,G.W.:25kg. ).
Qualification of school smart card lock
High quality with certificates of CE, FCC, RoHS: durable and stable, could be used more than 10 years
Two colors for school smart card lock
Silver and Golden
Technical index of school smart card lock
Power Supply: |
DC6V,use of 4pcs of AA batteries. |
Supply Voltage: |
DC4.5v-6.5v, normal status, blue light flashes and it sound for 1 time; when the voltage is below DV4.5v, the red light flashes after the blue light flashes, sounds twice, in this situation, the lock can be used for more 200 times. |
Static Power Supply: |
<10 u A. |
Dynamic Power Suppy: |
<150m A |
Inductive Distance: |
10-30mm |
Open time: |
It will automatically lock inside after open it for 1 time, or lock again if the door is not opened in 3 seconds. |
Lifetime of battery: |
Under normal situation, the lock can keep working last 1 year, be opened more than 20000 times |
Record inside the lock: |
1000 records for standard type|(include open by mechanical key) |
Setting Requirement: |
Working temperature: 0'C-70'C, humidity:15-92%max. |
Onlense is a manufacturer who researchs and produces high technology electronic locks for security since 2001, our products and systems are widely used in guesthouses, hotels, flats and office intelligent estates, and the quality and service are widely acknowledged by our users.
After Sales Service
Shipment and sample quality tracking includes lifetime. Any small problem happening in our products
will be solved at the most prompt time. We always offer relative technical support. Quick response, all your inquire will be replied within 24 hours.
Quality control
1)Before the order can be confirmed finally,we would strictly check the material ,color ,dimension of the sample step by step
2)We salesman ,also as a order follower,would trace every phase of production from the beginning
3)We have a QC team ,every product would be checked by them before packed
4)We would try our best to help clients solve problems when they occurred
