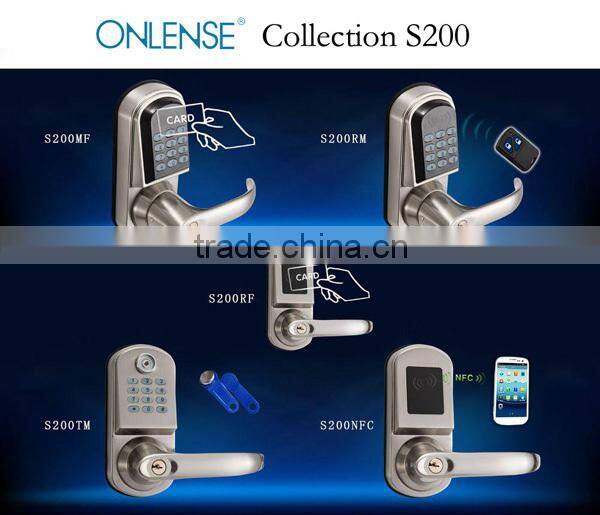

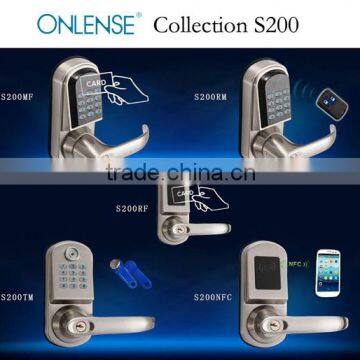

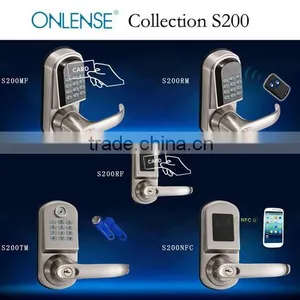

Item No.: S200NFC | |
Name |
NFC smart lock |
Meterial |
zinc alloy |
Colors |
silver and golden |
Software |
no need software and software control for choice |
Inductive distance |
3-10MM |
Unlocking way |
Smart card / cell phone |
Application |
hotel,apartment,school,business office |
Durable zinc alloy material of NFC smart lock
Multi-functional specification of NFC smart lock
| Convenient : | No need key,no need to remember password,only a NFC android smartphone |
| Safety : | Open the lock by most safety authorized Code |
| Emergency use : | your friend or family members can open the lock even if you are tens of thousands kms away,only need to send a message or email |
| Authority management : | different authority lever controls different functions |
| Passage mode : | if you are taking a party, you can set the lock into passage mode |
| *Valid period : | invite your friend for a specific time. Encrypted code can’t unlock when the specific time is over. |

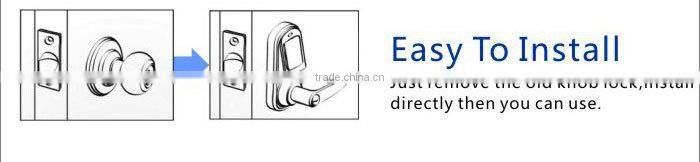

Easy installation of NFC smart lock
Standard single latch, adjustable for 60/70mm backset. Just remove the existing knob lock, no need drill hole.

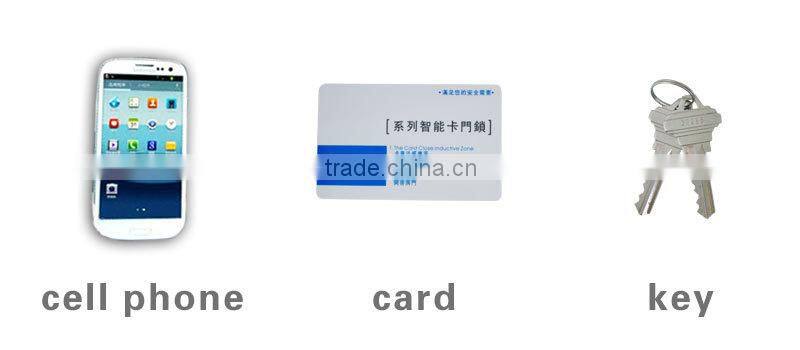

Three unlocking ways of NFC smart lock
Smart card , cell phone and Mechanical key (Override in case of out of battery power)

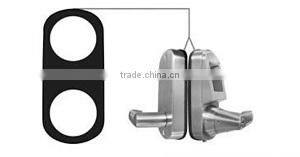

Anti-moist and anti-dust function of NFC smart lock

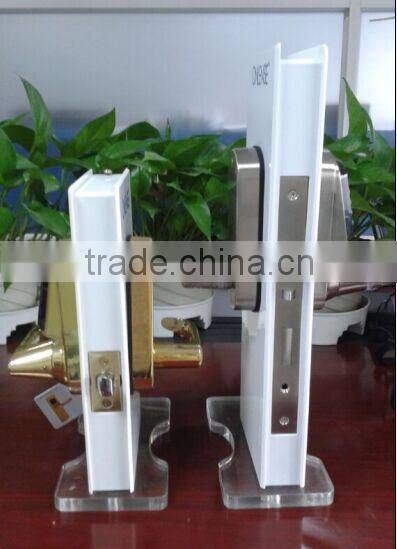

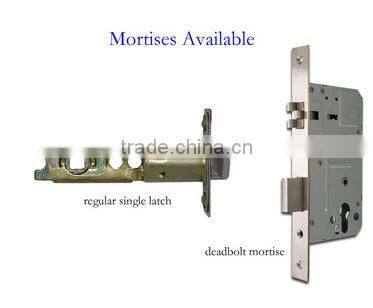

ANSI single latch or European mortise E for choice of NFC smart lock
| Morstise E : | |
| European Standard with deadbolt by hand |
Door thickness should be 30-58mm and door side deep distance(Distance from door side to the center of door hole) should be 80mm.If the door is with decorative bar, the distance from door side to the decorative bar should be over 90mm. |
| Single latch |
Latch is made of zinc alloy with adjustable 60-70mm |
Application for NFC smart lock
Hotel, apartment, office, school, factory and so on.

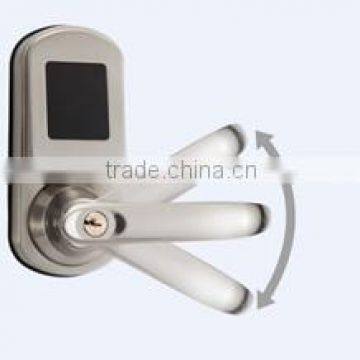

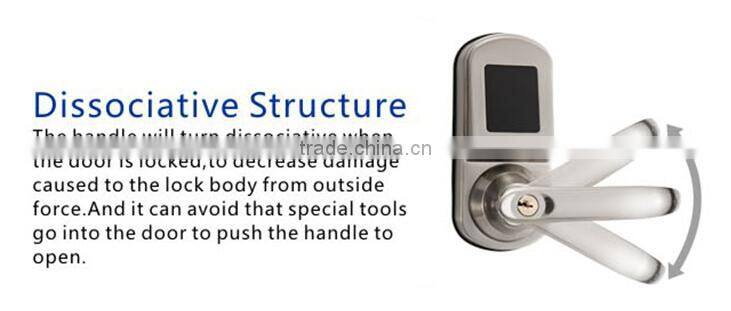

Dissociative structure of NFC smart lock
Size of NFC smart lock (mm)
Safe individual inner packing box for NFC smart lock
One piece per box(293mm*175*154, G.W.:2.5kg. ).
10 boxes per carton(654mm*335mm*330mm,G.W.:25kg. ).
Two colors for NFC smart lock
Silver and Golden
Qualification of NFC smart lock
High quality with certificates of CE, FCC, RoHS: durable and stable, could be used more than 10 years
Technical index of NFC smart lock
Power Supply: |
DC6V,use of 4pcs of AA batteries. |
Supply Voltage: |
DC4.5v-6.5v, normal status, blue light flashes and it sound for 1 time; when the voltage is below DV4.5v, the red light flashes after the blue light flashes, sounds twice, in this situation, the lock can be used for more 200 times. |
Static Power Supply: |
<10 u A. |
Dynamic Power Suppy: |
<150m A |
Inductive Distance: |
10-30mm |
Open time: |
It will automatically lock inside after open it for 1 time, or lock again if the door is not opened in 9 seconds. |
Lifetime of battery: |
Under normal situation, the lock can keep working last 6 months, be opened more than 10000 times |
Setting Requirement: |
Working temperature: 0'C-70'C, humidity:15-92%max. |
Core value of NFC smart lock
Onlense is a manufacturer who researchs and produces high technology electronic locks for security since 2001, our products and systems are widely used in guesthouses, hotels, flats and office intelligent estates, and the quality and service are widely acknowledged by our users.
After Sales Service
Shipment and sample quality tracking includes lifetime. Any small problem happening in our products
will be solved at the most prompt time. We always offer relative technical support. Quick response, all your inquire will be replied within 24 hours.
Quality control
1)Before the order can be confirmed finally,we would strictly check the material ,color ,dimension of the sample step by step
2)We salesman ,also as a order follower,would trace every phase of production from the beginning
3)We have a QC team ,every product would be checked by them before packed
4)We would try our best to help clients solve problems when they occurred
