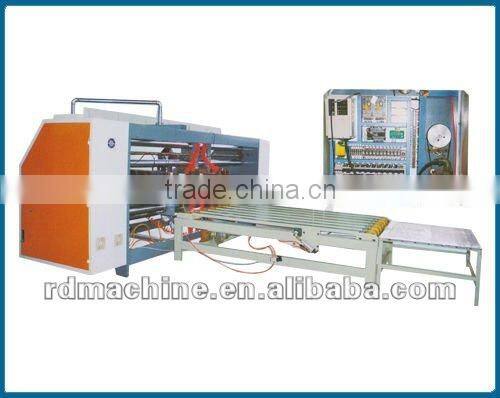

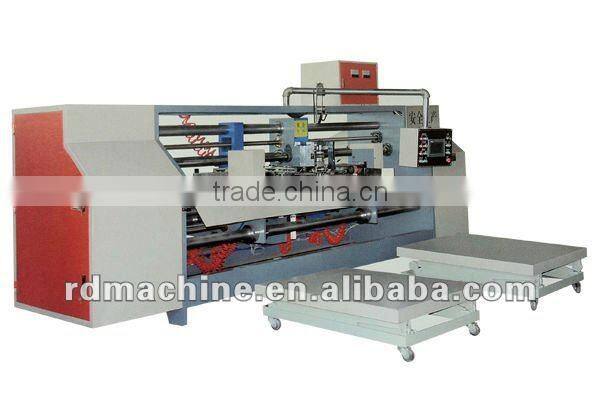

SDJ-3000 Corrugated Carton Semi-auto Twin Piece Stitcher Machine

SDJ-3000 Corrugated Carton Semi-auto Twin Piece Stitcher Machine thumbnail-1
SDJ-3000 Corrugated Carton Semi-auto Twin Piece Stitcher Machine photo-1
US$ 10000.00 - 10000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, stitcher machine
Processing Type:
Other, stitcher machine
Contact Supplier Request Quote Chat Now
Pujiang Ruida Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Product Type Other, stitcher machine
Processing Type Other, stitcher machine
Place of Origin Zhejiang, China
Brand Name ruida
Model Number RD-SDJ2400
Voltage 380V
Power(W) 3kw
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Specifications



- Semi auto twin piece stitcher
- High quality and best service
- Competitive price
- Easy operation and maintenance



Features:

  • The dual- purpose stitcher machine is able to nail monolithic carton, twin piece forming carton, and irregular carton.
  • Available for large carton stitching, the nail-feeding is convenient and quick with high efficiency.
  • The size adjustment is fully electric controlled, it could be changed within 2-3mins.
  • The strengthened nail, single nail, and double nail can be accomplished in a lump.
  • Equipped with auto counting function in the feeding unit, which is dedicated to the strapping of finished product.
  • Nail pitch is free adjusted and set by the screen between 30-120mm.
  • It's available to stitching the special carton without cover.
  • It's available to display the machine fault and fault cause on the screen.

Specification:

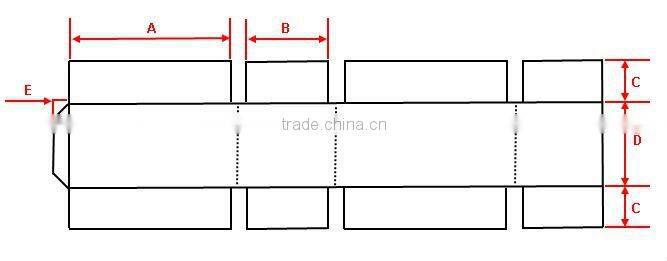

Model Unit RD-SDJ2400 RD-SDJ2700 RD-SDJ3000
Paper size(A+B)*2 Max mm 4800 5400 6000
Min mm 1060 1060 1060
Paper Length(A) Max mm 2250 2550 2850
Min mm 350 350 350
Paper width(B) Max mm 1200 1350 1500
Min mm 180 180 180
Paper height(C+D+C) Max mm 1800 1800 1800
Min mm 400 400 400
Min first stitching pitch(D) mm 25 25 25
Max TS width(E) mm 40 40 40
Stitching pitch mm 30-120 30-120 30-120
Qty. of stitching pcs 1-99 1-99 1-99
Speed stitch/min 350 350 350
Horsepower HP 18 18 18
Weight T 4 4 4.2
Overall dimension(L*W*H) mm 6000*3550*1800 6000*3550*1800 6000*4150*1800
