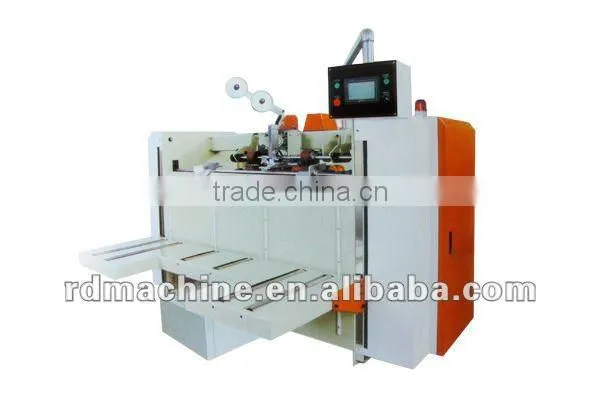

[RD-BDJ2400A]Semi Automatic High Speed Servo Driven Single Piece Carton Stitching Machine

[RD-BDJ2400A]Semi Automatic High Speed Servo Driven Single Piece Carton Stitching Machine thumbnail-1
[RD-BDJ2400A]Semi Automatic High Speed Servo Driven Single Piece Carton Stitching Machine photo-1
US$ 12,000 - 21,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Packaging Type:
Cartons, Film, Case
Contact Supplier Request Quote Chat Now
Pujiang Ruida Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin or Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Food, Beverage, Commodity, Medical, Chemical, Other, Apparel, Textiles, Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Packaging Type Cartons, Film, Case
Packaging Material Plastic, Paper, Wood
Automatic Grade Semi-Automatic
Driven Type Electric
Voltage 380v
Power 3KW
Place of Origin Zhejiang, China
Brand Name RuiDa
Model Number RD-BDJ2400A
Weight 2t
Dimension(L*W*H) 2800*3000*2000mm
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

- Semi automatic carton stitching machine
- High quality and best service
- Competitive price
- Easy operation

[RD-BDJ2400A]Semi automatic high speed servo driven single piece carton stitching machine

Features:

  • The semi auto dual servo driven stitcher machine is able to nail monolithic carton and irregular carton.
  • Equipped with Imported dual servo driven, with high transmission precision, and reduce the mechanical transmission, which is   good for reducing the mechanical failure.
  • The machine is controlled by Siemens PLC, and equipped with a touch screen, which is convenient for setup the parameter of stitching pitch, quantity of nail, type of nail, position of backplate and so on.
  • The position of backplate is precisely controlled by the stepping motor, the position adjustment is quick and convenient.
  • The pin is made of special high quality steel, with the process of CNC precision finishing.
  • Available for large carton stitching, the nail-feeding is convenient and quick with high efficiency.
  • The size adjustment is fully electric controlled, it could be changed within 1 minute conveniently.
  • The strengthened nail, single nail, and double nail can be accomplished in a lump.
  • Equipped with auto counting function in the feeding unit and output unit, which is dedicated to the strapping of finished product.
  • Equipped with a photoelectric sensor on the feeding unit, the feeding unit will rise up automatically when the photoelectric sensor detects the carton.
  • Nail pitch is free adjusted and set by the screen between 30-120mm.
  • It's available to stitching the special carton without cover.
  • It's available to display the machine fault and fault cause on the screen.
  • The machine will alarm automatically when out of nail.



Specifications:



[RD-BDJ2400A]Semi automatic high speed servo driven single piece carton stitching machine



Model Unit RD-BDJ2400A RD-BDJ2700A RD-BDJ3000A
Paper size(A+B)*2 Max mm 2460 2800 3400
Min mm 606 606 606
Paper Length(A) Max mm 1050 1050 1050
Min mm 120 120 120
Paper width(B) Max mm 606 620 650
Min mm 180 220 300
Paper height(C+D+C) Max mm 1515 1515 1515
Min mm 300 300 300
Min first stitching pitch(D) mm 25 25 25
Max TS width(E) mm 35 35 35
Stitching pitch mm 30-120 30-120 30-120
Qty. of stitching pcs 1-99 1-99 1-99
Speed stitch/min 400 400 400
Horsepower HP 6 6 6
Weight T 2 2 2
Overall dimension(L*W*H) mm 2800*3000*2000 2800*3300*2000 2800*3600*2000



[RD-BDJ2400A]Semi automatic high speed servo driven single piece carton stitching machine



[RD-BDJ2400A]Semi automatic high speed servo driven single piece carton stitching machine
