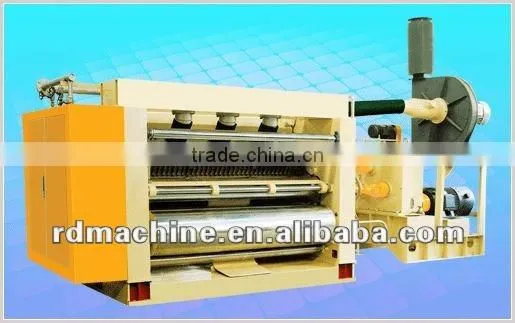

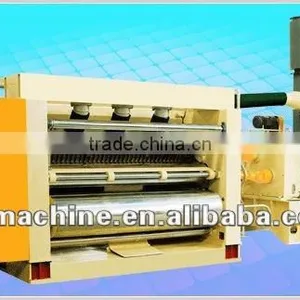

[RD-SF-380S-1800]Fingerless Type Single Facer Machine for Corrugated Cardboard Production Line
![[RD-SF-380S-1800]Fingerless Type Single Facer Machine for Corrugated Cardboard Production Line thumbnail-1](https://img13.fr-trading.com/2/1_1006_27650_515_323.jpg.webp)
![[RD-SF-380S-1800]Fingerless Type Single Facer Machine for Corrugated Cardboard Production Line photo-1](https://img13.fr-trading.com/3/1_1006_27650_515_323.jpg.webp)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Machinery & Hardware
Packaging Type:
Other, containers
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
![[RD-SF-380S-2000]Fingerless Type Single Facer Corrugated Machine](https://res.goldsupplier.com/img/env2/common/load/circle-loading.svg)
[RD-SF-380S-2000]Fingerless Type Single Facer Corrugated MachineUS$ 20,000 - 50,000MOQ: 1 Set -
[RD-SF-360S-2200]Fingerless Type Absorbed Steam Heating Single FacerUS$ 15,000 - 35,000MOQ: 1 Set
-
[RD-SF-360S-2000]Adsorb Type Corrugated Board Single FacerUS$ 12,000 - 45,000MOQ: 1 Set
-
[RD-SF-360S-1800]Fingerless Type Corrugated Paperboard Single Facer MachineUS$ 12,000 - 30,000MOQ: 1 Set
-
[RD-SF-360S-1600]Fingerless Type Single Facer MachineUS$ 10,000 - 30,000MOQ: 1 Set
Condition
New
Application
Other, Machinery & Hardware
Packaging Type
Other, containers
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Electric
Power
30KW
Place of Origin
Zhejiang, China
Brand Name
RuiDa
Model Number
RD-SF-380S-1800
Specifications
- Fingerless type- High quality and best service
- Competitive price
- Easy operation and maintenance
Features
- Cardboard transmission is achieved by the method of vacuum suction, it equipped with high pressure air blower as well as a muffler, with adjustable of air blowing rate, to keep flute profiles stable under high speed.
- All the corrugated rolls, pressure roll, gluing roll are pneumatically controlled, and the air control unit and electrical control unit are concentrated in a cabinet.
- The main structure and frame are made of cast iron, up to the thickness of 200mm, equipped with independent gear box and cardan drive with submerged lubrication system to avoid noise and run stable.
- The shafts of corrugated and pressure roll are all heat resisting and lubricated by lubricating grease.
- The corrugated roll is made of 52CrMo precision forging alloy steel, with the treatment of hardening and tempering, grinding, laser-quenching, spraying tungsten carbide, make the hardness up to HVC1200.
- Equipped with spay wetness adjusting deivce to avoid paper cracking and keep a good flute profile, it's controlled by valves.
- Equipped with a lifting deivce on the heavy bridge convey to take out the corrugated roll and pressure roll for maintenance and replacement.
- The pressure roll is made of medium carbon steel, with the treatment of hardening and tempering, grinding and chrome plated, the roll up and down is controlled by cylinder.
- Both corrugated roll and pressure roll are equipped with pneumatic pressure deivce in order to get a stable running condition.
- The gluing roll is treated with grinding, mesh snicked and chrome plated on the surface, while the doctor roll has the same treatment.
- The gluing unit could be taken out integrally which is convenient for gluing roll maintenance and replacement. the gluing wall is sliding plate structure.
- Electrical control glue supplying and gluing width denpends on the different size of paperboard, the glue quantity is digital displayed.
- The gluing unit is available to run independently or non-independently.
- The gap between gluing roll and lower corrugated roll is manual micro adjusted by turbine reducer, the parallelism is convenient adjusted by positioning screw and eccentric sleeve.
- The pre-heater is made of seamless steel tube, and connected by flexible metal hose.
- The machine is equipped with converter motor and Taiwan made PLC, as well as a safe defend net on the power control unit to protect the operators' safety.
Specification
| General parameter | |||
| Design speed | 180m/min | ||
| Design width | 1800mm | ||
| Temperature scope | 160-200oC | ||
| Pressure of compressed air supply | 0.4-0.9Mpa | ||
| Pressure of steam | 0.8-1.3Mpa | ||
| Corrugating type | UV or UVV | ||
| Diameter of rollers | |||
| Upper corrugating roller | Φ350mm | ||
| Lower corrugating roller | Φ380mm | ||
| Pressure roller | Φ385mm | ||
| Gluing roller | Φ242mm | ||
| Doctor roller | Φ140mm | ||
| Pre-heater roller | Φ402mm | ||
| Electrical parameter of motors | |||
| Main drive motor | 30KW | 380V | 50Hz |
| Air suction motor | 15KW | 380V | 50Hz |
| Glue reducer motor | 100W | 380V | 50Hz |
| Gluing roller gap adjusting motor | 250W | 380V | 50Hz |
| Glue pump motor | 2.2KW | 380V | 50Hz |
