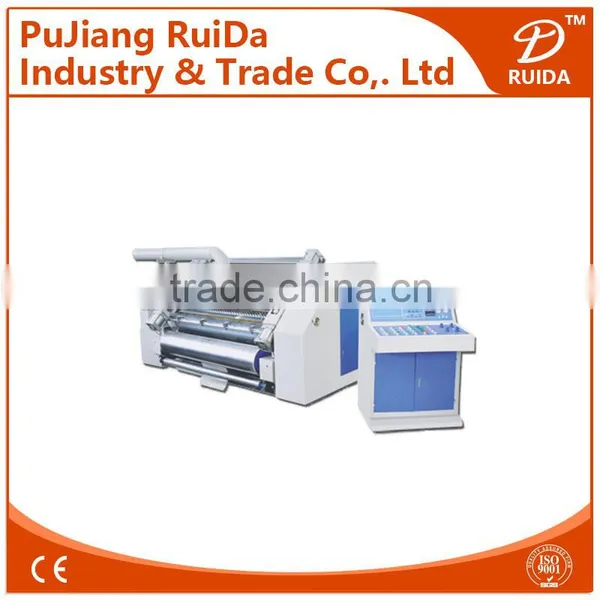

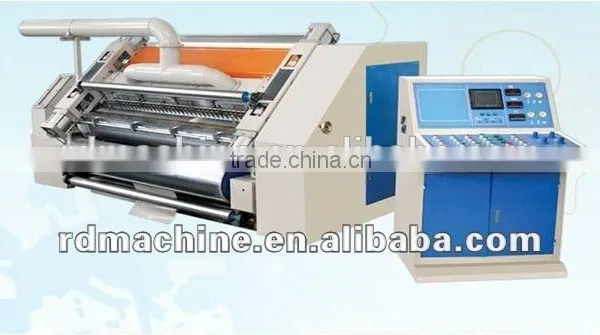

[RD-SF-360S-2000]Adsorb Type Corrugated Board Single Facer
![[RD-SF-360S-2000]Adsorb Type Corrugated Board Single Facer thumbnail-1](https://img11.fr-trading.com/2/1_870_27423_800_800.jpg)
![[RD-SF-360S-2000]Adsorb Type Corrugated Board Single Facer thumbnail-2](https://img11.fr-trading.com/2/1_137_27515_624_335.jpg)
![[RD-SF-360S-2000]Adsorb Type Corrugated Board Single Facer photo-1](https://img11.fr-trading.com/3/1_870_27423_800_800.jpg)
![[RD-SF-360S-2000]Adsorb Type Corrugated Board Single Facer photo-2](https://img11.fr-trading.com/3/1_137_27515_624_335.jpg)
US$ 12,000 - 45,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type:
Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin for corrugated board single facer machine
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
![[RD-SF-360S-1800]Fingerless Type Corrugated Paperboard Single Facer Machine](https://res.goldsupplier.com/img/env2/common/load/circle-loading.svg)
[RD-SF-360S-1800]Fingerless Type Corrugated Paperboard Single Facer MachineUS$ 12,000 - 30,000MOQ: 1 Set -
[RD-SF-360S-1600]Fingerless Type Single Facer MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
[RD-SF-320S-2200]Fingerless Type Single Face Paper Corrugating MachineUS$ 15,000 - 35,000MOQ: 1 Set
-
[RD-SF-320S-2000]Fingerless Adsorption Single Facer Paper Corrugation MachineUS$ 15,000 - 35,000MOQ: 1 Set
-
[RD-SF-320S-1800]Fingerless Type Single Facer Machine for Corrugated Cardboard Production LineNegotiableMOQ: 1 Set
Condition
New
Application
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type
Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch
Packaging Material
Glass, Metal, Paper, Plastic, Wood
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380v
Power
22KW
Place of Origin
Zhejiang, China
Brand Name
RuiDa
Model Number
RD-SF-360S-2000
Dimension(L*W*H)
1600*3000*1600mm
Weight
4t
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Corrugated board single facer machine
Features
- Adsorb type corrugated board single facer machine
- Cardboard transmission is achieved by the method of vacuum suction, it equipped with high pressure air blower as well as a muffler, with adjustable of air blowing rate, to keep flute profiles stable under high speed.
- All the corrugated rolls, pressure roll, gluing roll are pneumatically controlled, and the air control unit and electrical control unit are concentrated in a cabinet.
- The main structure and frame are made of cast iron, up to the thickness of 200mm, equipped with independent gear box and cardan drive with submerged lubrication system to avoid noise and run stable.
- The shafts of corrugated and pressure roll are all heat resisting and lubricated by lubricating grease.
- The corrugated roll is made of 48CrMo alloy steel, with the treatment of hardening and tempering, grinding, laser-quenching, to reach the hardness of HRC60o
- The pressure roll is made of medium carbon steel, with the treatment of hardening and tempering, grinding and chrome plated, the roll up and down is controlled by cylinder.
- The gluing roll is treated with grinding, mesh snicked and chrome plated on the surface, while the doctor roll has the same treatment.
- The gluing unit could be taken out integrally which is convenient for gluing roll maintenance and replacement. the gluing wall is sliding plate structure, pneumatic control glue supplying, the glue quantity is digital displayed.
- The gluing unit is available to run independently or non-independently.
- The pre-heater is made of seamless steel tube, and connected by flexible metal hose.
Specification
| General parameter | |||
| Design speed | 150m/min | ||
| Design width | 2000mm | ||
| Temperature scope | 160-200oC | ||
| Pressure of compressed air supply | 0.4-0.9Mpa | ||
| Pressure of steam | 0.8-1.3Mpa | ||
| Corrugating type | UV or UVV | ||
| Diameter of rollers | |||
| Corrugating roller | Φ360mm | ||
| Pressure roller | Φ364mm | ||
| Gluing roller | Φ242mm | ||
| Pre-heater roller | Φ325mm | ||
| Electrical parameter of motors | |||
| Main drive motor | 22KW | 380V | 50Hz |
| Air suction motor | 11KW | 380V | 50Hz |
| Glue reducer motor | 100W | 380V | 50Hz |
| Gluing roller gap adjusting motor | 250W | 380V | 50Hz |
| Glue pump motor | 2.2KW | 380V | 50Hz |
