Specifications
Semi-automatic Die Cutting and Creasing machine1,high quality
3,famous brand components
4,CE and ISO
5. labor save

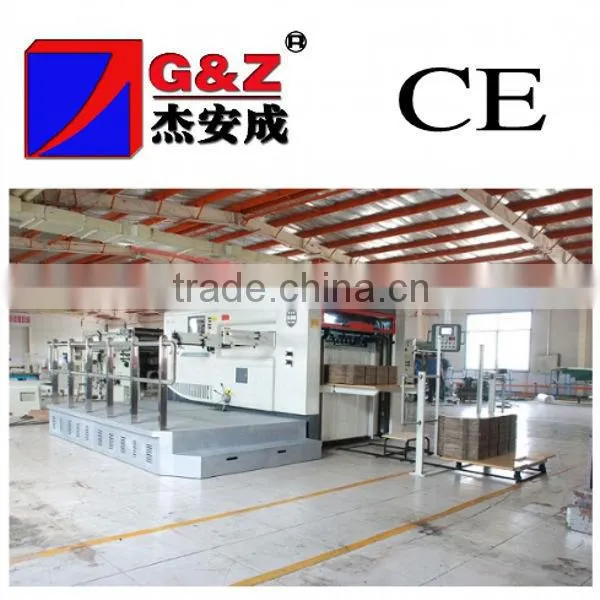

Semi-automatic Die Cutting and Creasing
Machine
Specification:
|
MWB1450Q |
MWB1450 |
Max.paper size |
1480mm×1080mm |
|
Min.paper size |
550mm×480mm |
|
Max.cutting size |
1450mm×1050mm |
|
Max.cutting pressure: |
300×104N |
|
paper type |
Corrugated paper 1-8mm, Cardboard 300gsm above |
|
Die cutting precision |
±0.5mm |
|
chanical speed |
4200sheets/h |
4000sheets/h |
Paper piled height |
1260mm |
|
Paper feeding height: |
1100mm |
|
Paper delivery height |
1423mm |
|
Pressure adjusting range: |
±1mm |
|
Minimum front margin: |
Needle ≥10mm, gripper ≥8mm |
|
Maximum wood plate size |
1480×1080mm |
|
Total power: |
21kw |
20.5Kw |
Machine dimension: |
7750×4860×2440mm (include the work platform, pre-feeder) |
6330x4900x2350mm (include the work platform, pre-feeder) |
|
5140×2605×2240 mm (exclude the work platform, pre-feeder, die change frame) |
|
|
Gripper /Needle number/each |
11/18 |
|
Total weight: |
19t |
17t |
Feature:
MWB1450Q is the classic series which adopt below function on the basis of semi-automatic die cutting machine, it is the initiate of home. Half-stripping system, automatic cleaning three side and middle part, Clean and greatly improves efficiency. Stripping Mold adopt central positioning system, automatic clipping, Upper Stripping mold adopt electric control lifting device
Details:

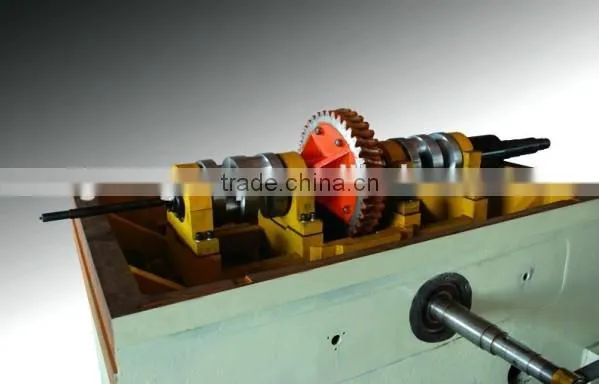

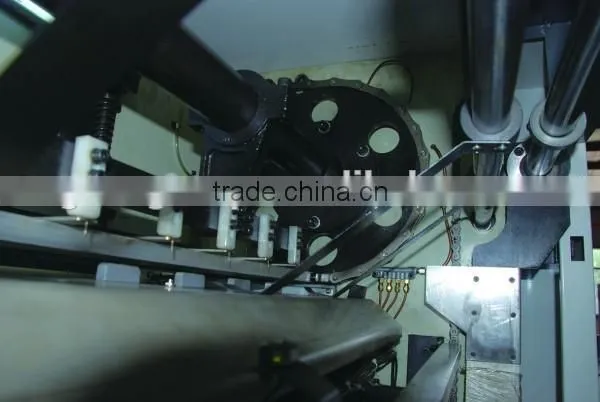

1)Main Chain drive:
The main driving system adopts crank and worm gear pair and special crank shaft linkage mechanism connect by bearing shell which can reduce locomotive gap, avoid impacting and ensure smooth running, pressure of die-cutting is high.

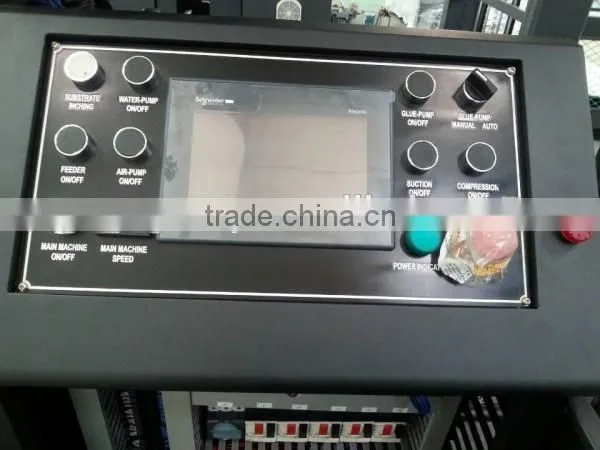

2)Touch screen:

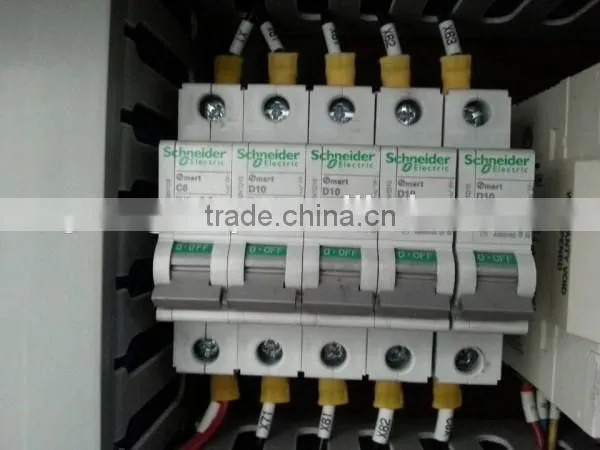

3) Breakers:

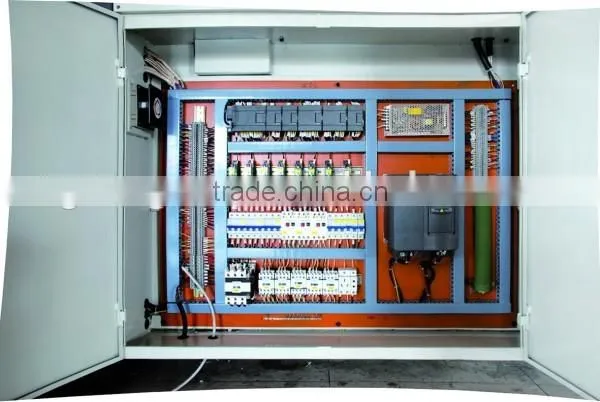

4):Electrical control part:
PLC control is adopted in Electronic Control System. There are various safe guarding devices that when accident occurs, it will give an alarm by sound and light and shutdown automatically to protect safety of man and machine

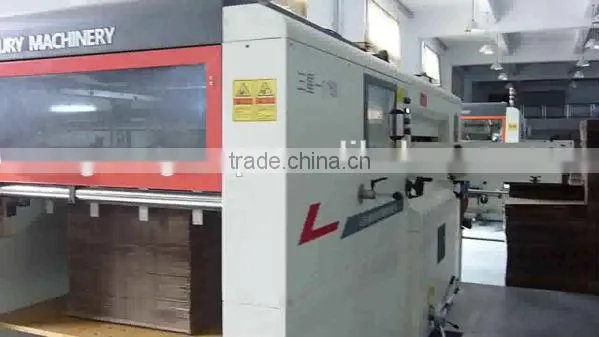

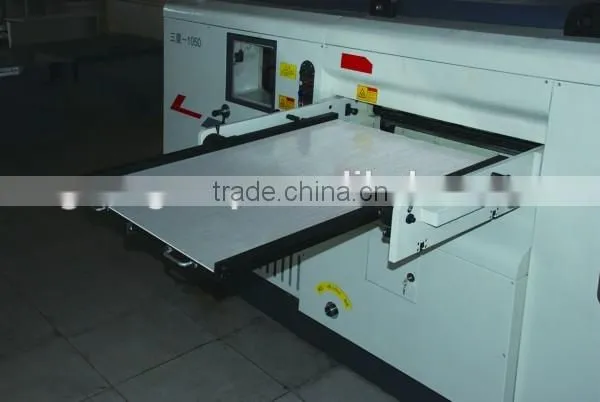

5)Die cutting and creasing:
The reliable overload protective mechanism can make the driving and driven parts separated automatically when overload accident occurs. The unique die-cutting frame can prevent the die-cutting plate from dropping and separating effectively.
6 Main Driving system:
Working Video Available: Feel free to contact us

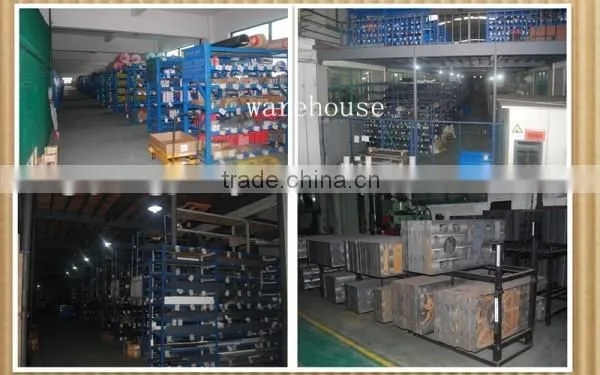

Our Warehouse:
We also sell:

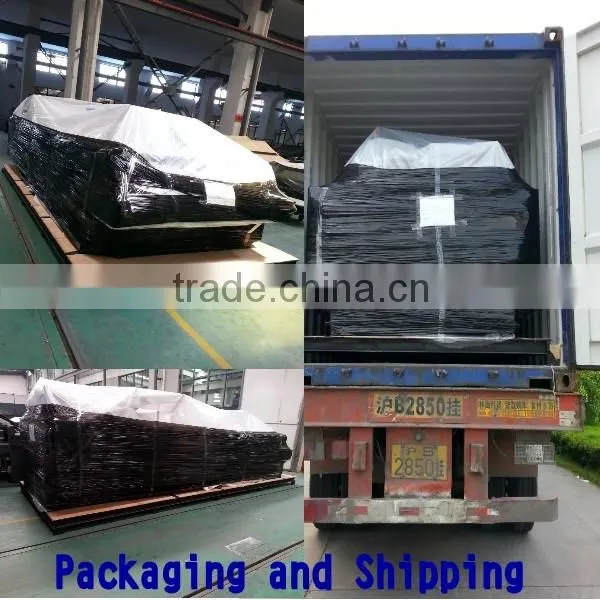

Package and Shipping:
Our Company:
G&Z group is one of leading manufacturers specialized in laminating machines in China, our laminating machines are suitable for the color printed top sheet and corrugated paperboard, and have been installed all of the world, besides of the top machines' quality, we also have earned good reputation on our aftersales services.
