Specifications
Automatic Carton Creasing Die Cutting Machine1,high quality
2,famous brand components
3,CE and ISO
4with stripping

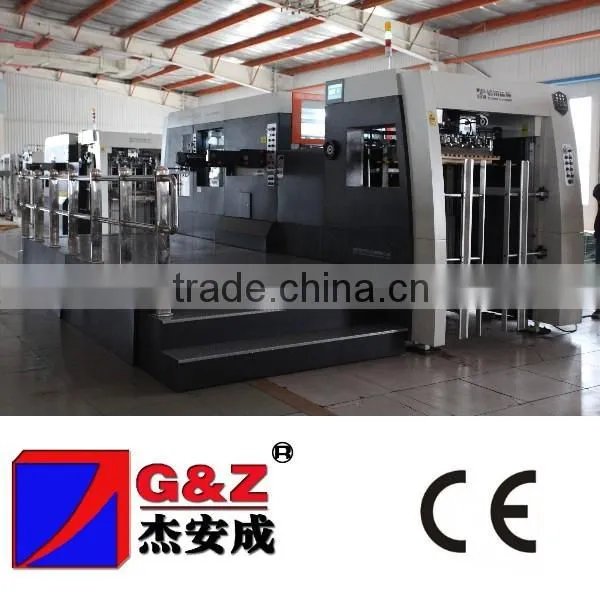

Automatic Carton Creasing Die Cutting
Machine with Stripping
Specification:
Max.sheet Size |
1050X750mm |
Min.sheet Size |
400x360mm |
Max.Die-Cutting Size |
1040x720mm |
Max.Mechanical Speed |
7500s/h |
Min.gripper waste |
8mm |
Cutting rule height: |
23.8mm |
Power: |
20.3 kw |
Die cutting precision: |
± 0.07mm |
Total Power |
380V.50HZ, 3-Phase |
Max.Die-Cutting Pressure |
300t |
Gross Weight |
17t |
pressure adjusting range: |
± 1mm |
Paperboard type |
Cardboard : 90-2000g/m2 Corrugated card: ≤ 4mm |
Inner chase size |
1080x830mm |
dimension |
7380x4300x2320mm |
Details:
1.Feeding section
The high speed feeder is made of lightweight aluminum alloy with anode treatment on the surface. The forward. backward. high and low positions can be adjusted according to the stock for smooth feeding of thin paper. Large gram cardboard and
Corrugated paper etc. top speed can reach at 7500s/h , die cutting precision is within± 0.07mm

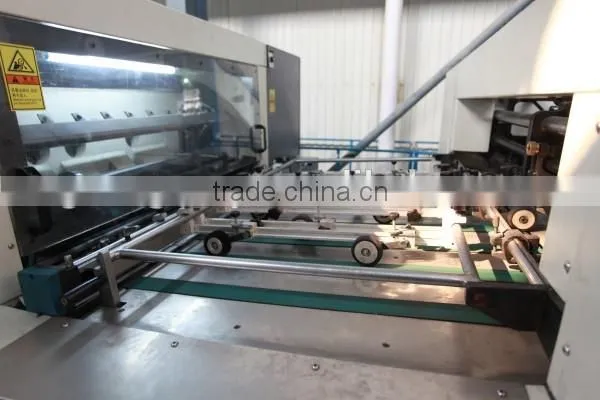

2.Feedingtable
Slanting paper –running table is more suitable for feeding and orienting of the high speed thin paper, be equipped with bi-function orienting device, the side guides can be changed from push to pull by the simple adjustment of one screw.

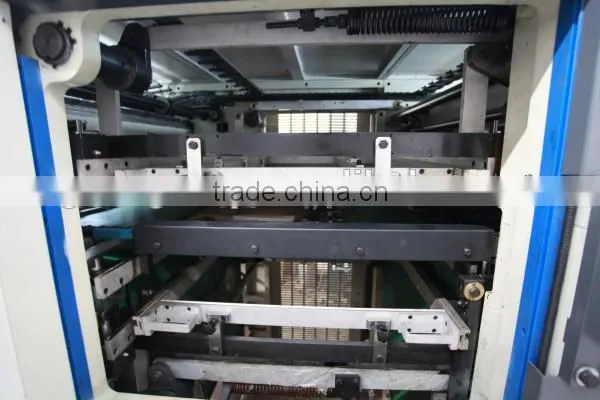

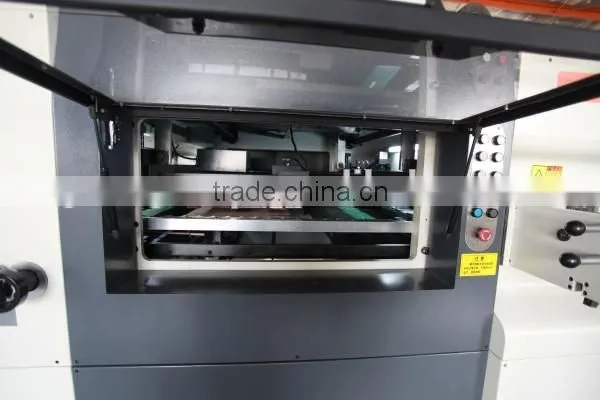

3. Die cutting section
Pneumatic push button die chase locking mechanism to ensure safe and operator friendly changing of the die , complete lost controlthroughout the entire machine.
Centerline system compatible to centerline for quick change over and short set up
Time

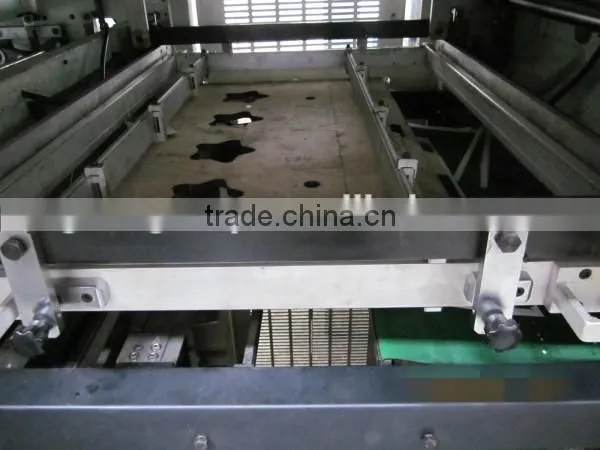

4. Stripping section
Upper and lower stripping tool mounting frame be pulled out for job set up and makeready. The high quality transmission mechanism and cam movementcurve providestripping stability andaccuracy ,the pneumatic raising device for upper stripping board creates more internal working space

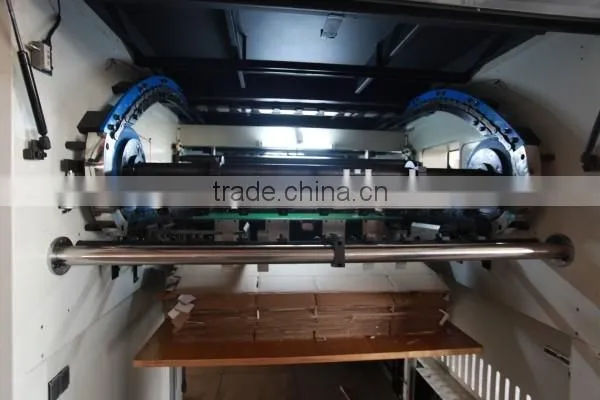

5. Delivery section
Motorized upper frame suspending hoister
Automatically delivery device with under
Blowing and parallel blowing system allows
Perfect delivery with high speed working
Working Video Available: Feel free to contact us

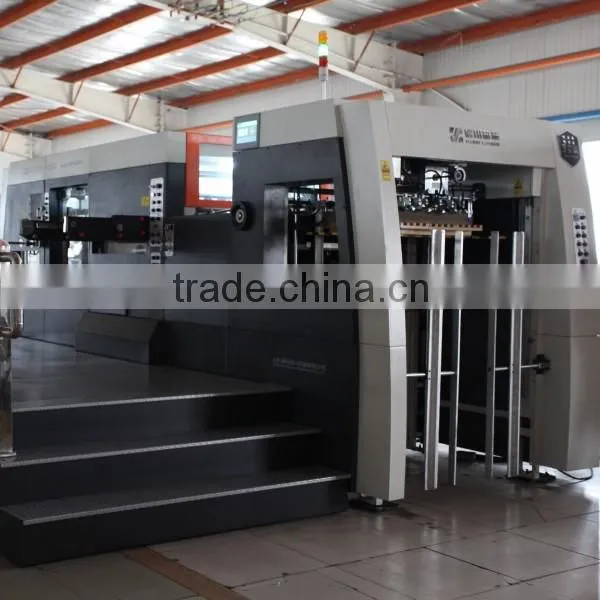

Finished Machine:

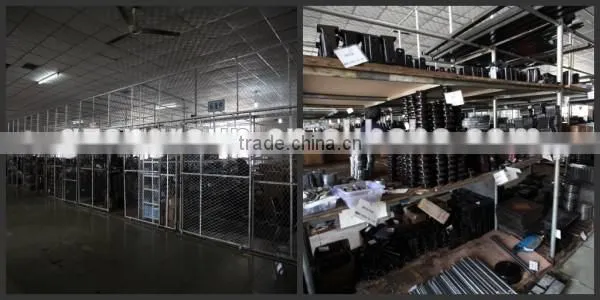

Our Warehouse:
We also sell:
Package and Shipping:

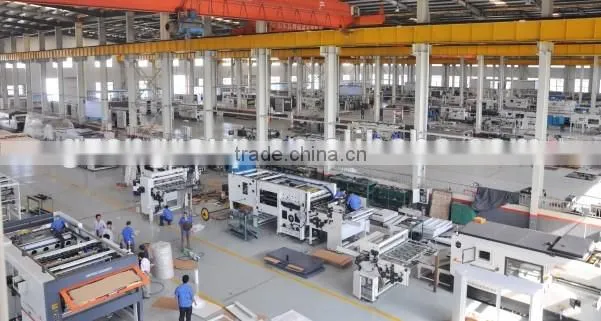

Our Company:
G&Z group is one of leading manufacturers specialized in laminating machines in China, our laminating machines are suitable for the color printed top sheet and corrugated paperboard, and have been installed all of the world, besides of the top machines' quality, we also have earned good reputation on our aftersales services.
