E1-P123 Marking System, Portable - Dot Peen Car Vin Number Marking Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port SHANGHAI/CAEN/AMHERSTBURG
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	France
Brand Name	SIC Marking	Model Number	E1-P123
Rated Power	100w	Application	Metal Materials
Dimensions	317 x 217 x 218 mm	Weight	3.7 kg (8.1 lbs)
Certification	ISO9001	Warranty	1 Year
After-sales Service Provided	Overseas service center available

Product Description

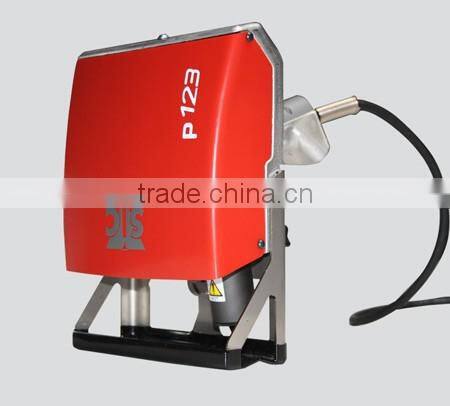

E1 P123 Marking System

Portable - Dot peen

LIGHTWEIGHT AND USER FRIENDLY

The new e1 p123 portable dot peen system allows its operator to create permanent and precise dot peen marks directly on any material. Its lightweight, compact build make it ideal for marking heavy or oversized components.

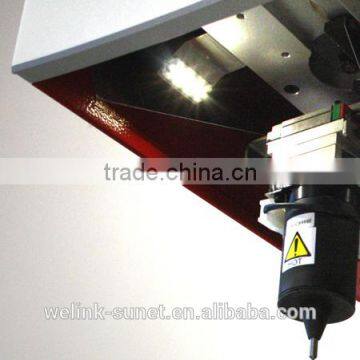

This machine's dot peen marking is driven by electromagnetic pulses which drive a tungsten carbide stylus into the surface material. Known for its high quality and deep marking capabilities, this machine is particularly suitable for creating 2D data matrix codes. The generous marking window (120 mm x 40 mm) allows for the marking of high, easily read characters.

The e1 p123 has a robust yet well balanced and ergonomic design making it perfect for any job where maneuverability and portability are essential.

Product Gallery

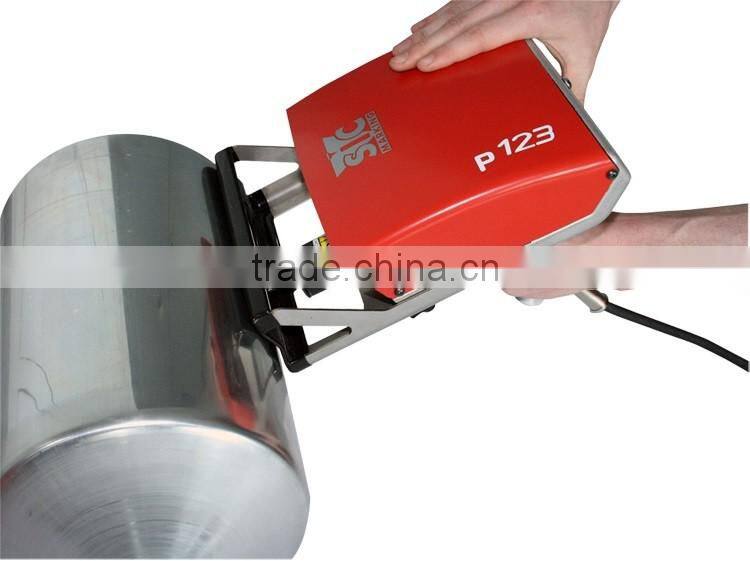

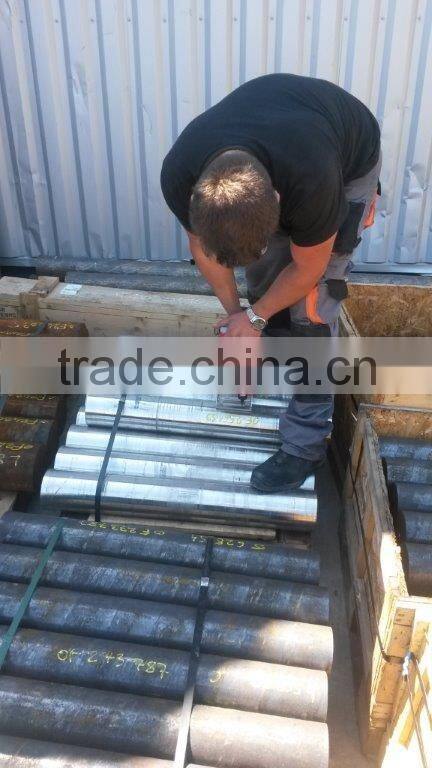

In Action

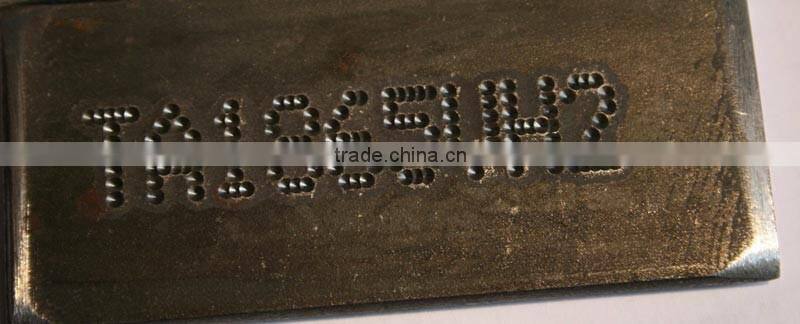

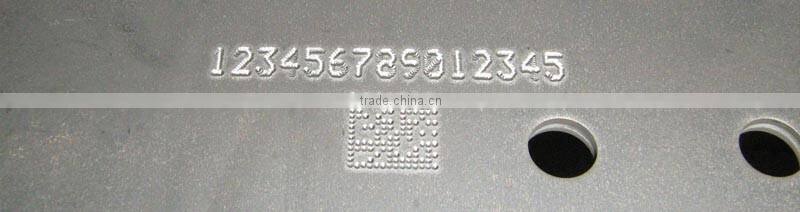

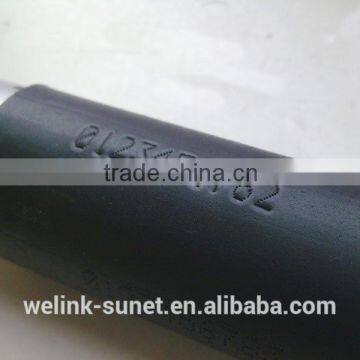

Marked Part

Technology

MECHANICAL TECHNICAL FEATURES

Marking Window	120 x 40 mm
Dimensions	317 x 217 x 218 mm
Weight	3.7 kg (8.1 lbs)
Robotic Cable	3m
Stylus	Carbide

ELECTRONIC TECHNICAL FEATURES

SIC Marking's e1 Controller independently operates and manages this marking machine, meaning no PC is required for operation. Initial setup can be done from a PC using the e1v1 software, while the USB port allows file transfer and marking software updates.

The e1 was ruggedly designed for industrial applications. It contains no openings or ventilation components providing optimal protection of interior electronic components. Thanks to its large aluminum handle, the grip is more comfortable than previous designs. The HD color screen features an integrated graphic display, making it easy to navigate. Using the protected membrane keyboard, programming is simple: the e1 allows for the direct change of settings and marking designs via manual input, or pictogram colors. The controller only weighs 2kg. Coupled with its marking unit, it offers perfect balance for increased mobility and maneuverability.

Dimensions	301 x 121 x 87 mm
Weight	2 kg (4.4 lbs)
HD Color Screen	95 x 54 mm
Keyboard	Integrated
Power	100W
Supply	100 to 240 VAC, 50 / 60 Hz

Software

The e1 integrated controller software is used to program all parameters directly through the keyboard (autonomous operation). A Windows tool library also allows programming from a PC.

Marking Files Storage	Up to 20,000 files
Memory	100 Mo
Variable	Alphanumerical, Serial, Date, Barcode, Logos
Marking Files	Up/Download from a USB key
Fonts	Courier, 4 x 6, OCR-Bold, OCRA, OCR
Marking Type	Linear, Radial, Angular, Datamatrix, Logo
Speed	Up to 2.5 Characters per Second
Character Size	Minimum 1 mm
Impact Force	1 - 9 Levels
Depth	Up to 0.3 mm
Resolution Between Dots	0.05 mm

COMMUNICATIONS

Ports

USB and Jack

OPTIONS

Hook and Balancing System (p123)

Hook and balancing system reduces worker fatigue.

Column for e1 p123

A mounting column that transforms a handheld dot peen marker into a stationary marking system.

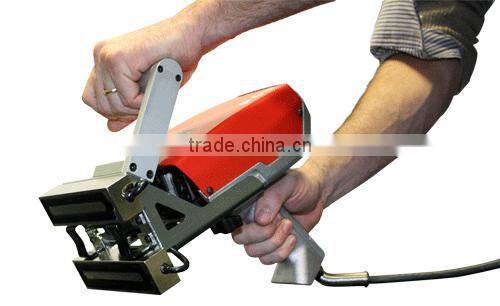

Magnetic Clamp (p123)

This high powered magnetic clamp facilitates steady marking.
