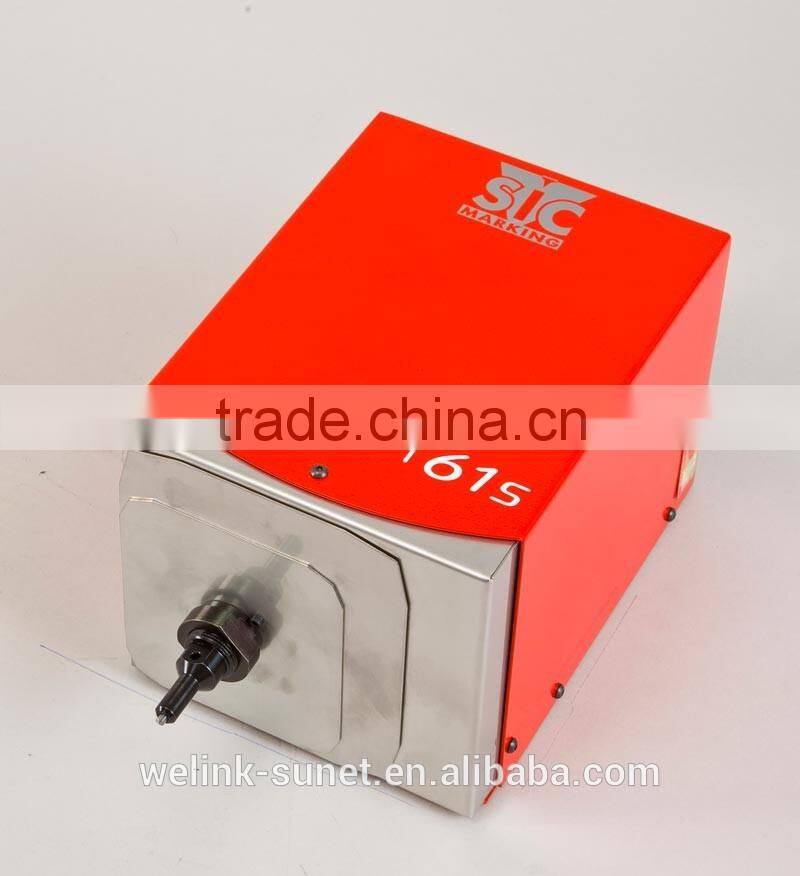

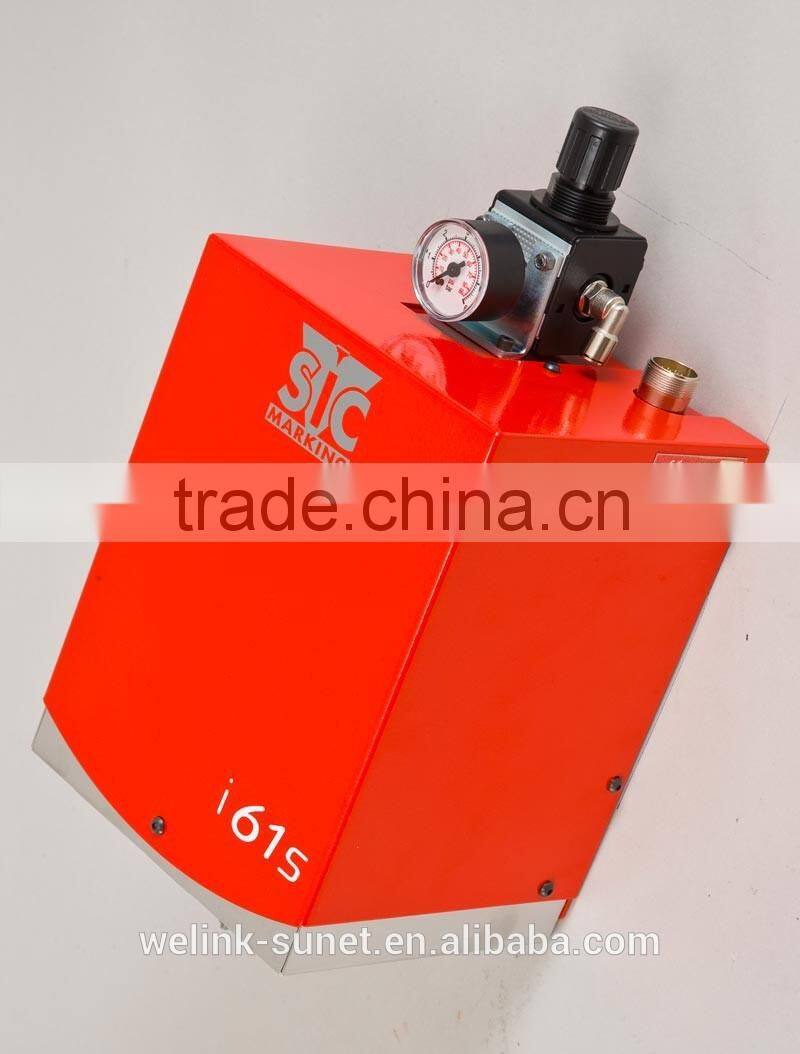

e10R i61s Scribing Marking Head
SILENT, POWERFUL SCRIBING

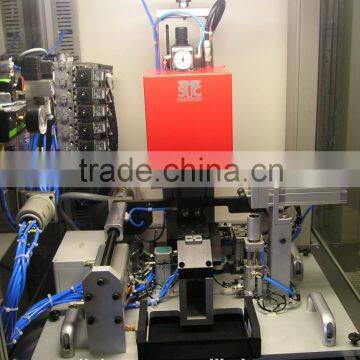

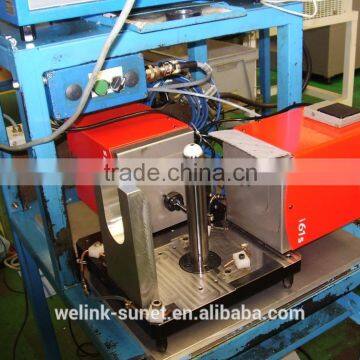

The i61s is a compact yet robust design engineered for seamless integration into industrial workstations, particularly where reduced noise levels are essential. Its internal components are protected by a rugged cabinet and stainless steel bellows. Requiring minimal maintenance and no consumables, the i61s has very low operating costs. The flexibility of the e10 controller and the durable reliability of teh i61s marking head combine to create a powerful, efficient, and easy-to-use system that is suitable for all types of industrial marking.
MECHANICAL TECHNICAL FEATURES
| Marking Window | 60 x 30 mm |
| Weight | 11.8 kg |
| Dimensions | 164 x 178 x 400 mm |
| Stylus | Carbide or Diamond Tip 60 mm |
| Connecting Cable | 5 m |
| Maximum Working Pressure | 6 Bar |
| Maximum Stylus Stroke | 2mm |
ELECTRONIC TECHNICAL FEATURES
Optimized for flawless integration on automated producted lines, the e10 R controller has a sealed membrane keyboard and 480 x 272 pixels backlit LCD color screen, providing the operator with a direct and easy-to-use interface. It is equipped with an innovative microprocessor that offers immediate start up and smooth browsing, and its comprehensive software suite allows for linear, angular, radial, and mirror image marking. An optional 3rd/4th axis circuit board can be intstalled to control a motorized column and/or rotary axis. Self diagnostic and machine history functions are also included.
The e10r can be mounted vertically in an electrical cabinet with a DIN rail mounting kit (optional). A fully enclosed steel exterior protects the internal components, allowing use in even the most critical industrial environments.
| Dimensions | 112 x 380 x 222 mm |
| Weight | 5 kg |
| LCD Screen Resolution | 480 x 272 p. |
| Keyboard | QWERTY-Integrated, Membrane Overlay |
| Power | 300W |
| Power Supply | Single Phase, 85 to 260VAC, 50-60Hz |
| Number of Controlled Axes | 2 (optional 3 and 4 axes available) |
| Card Options | Booster (deep marking) and Ethernet (communication) |
| USB Port | Transfer of Marking Files |
| Marking Files | More than 2000 |
| Memory | 7110 Ko |
| Alphanumeric Characters | Serial Number, Date Coding |
| Logos | Creation from PC software |
| Datamatrix | Up to 348 characters (48 x 48 dots) |
| Fonts | Arial, Courier, OCR, and OCRA |
| Style | Angular, Radial, Inverse, Mirror |
| Speed | Up to 5 Characters per Second |
| Character Size | From 0.1 mm to 99 mm |
| Impact Force | 9 Adjustable Levels |
| Depth | Up to 0.5 mm |
| Resolution Between Dots | 0.05 mm |
| Maximum Stylus Stroke | Up to 8 mm |
| Work Shift Management | 10 Shifts |
| Password Protection | 3 Levels of Security |
| Historical Function | Password Protected |
| Maintenance Assistance | Auto-diagnostic Component |
| Languages Available | 17 |
| Ports | RS232,RS422, USBx2, RS485, Profibus, and Ethernet Optional Board |
| Inputs/Outputs | 16 |
| External Keyboard Input | USB |
| External Output | 5V-0.5A and 24V-0.5A |
| Logos | Creation and Transfer Software |
| File Backup on PC | USB Key for Transfer |
| Database Link | Optional |
|
Button boxBox with on / off buttons.Remote system start/stop 2.5 m connection cable to controller
Advantages :
|
|
Column and base for integrated marking systemThis option enables mounting of a portable marking head into a set station to obtain a column-mounted system
Advantages :
|
|
|
D rotary axis for e10 range (electric version)This option, available on any column, peen or scribing device, allows you to mark parts up to 35 kg and with a diameter up to 250 mm. It marks long parts (tube, ...) with a through chuck. Caracteristics
-maximum bore of the part 116 mm tight
-125 mm maximum diameter clamping
|
|
|
D rotary axis for e10 range (pneumatic version)This option, available for use with all e10 column-mounted dot-peen or scribing systems, allows marking of parts up to 35 kg and with a diameter of up to 250 mm.
|
|
|
Maintenance kitExtended maintenance kits contain most common replacement parts for repairs or preventive maintenance, extending machine life
Kit maintenance box items:
|
