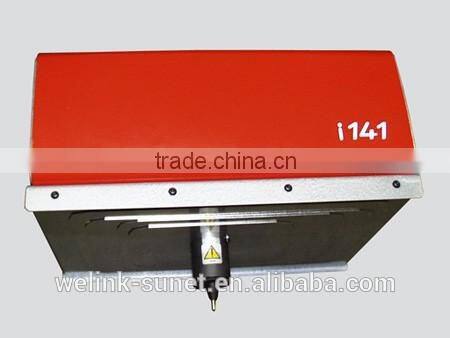

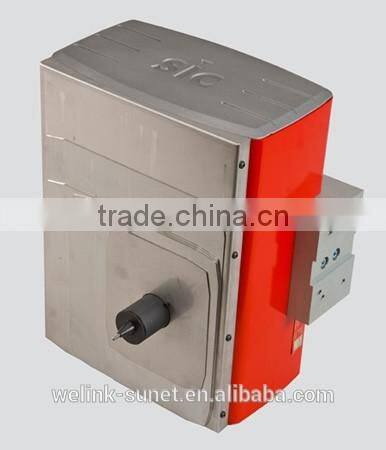

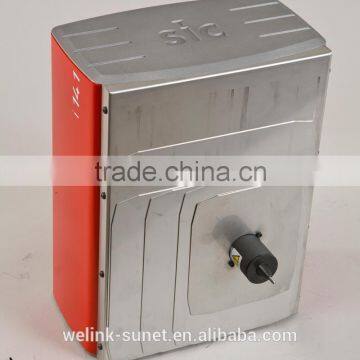

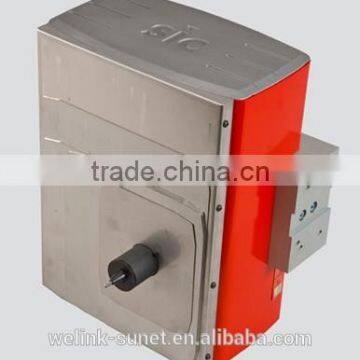

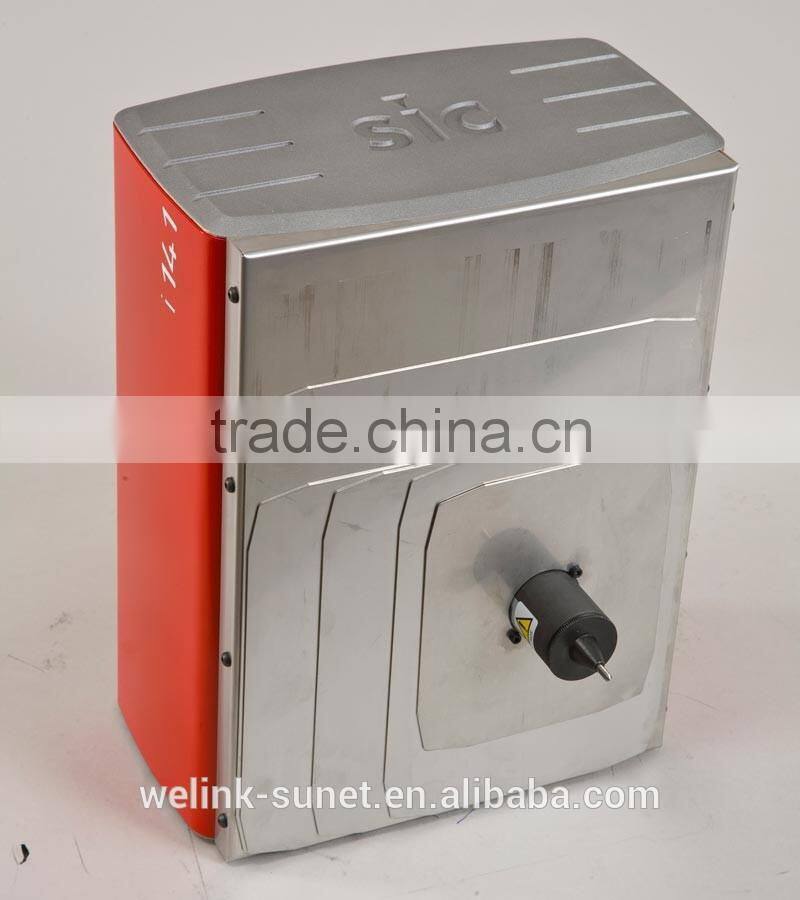

e10R i141 Dot Peen Marking Head Integrated two dimensional code

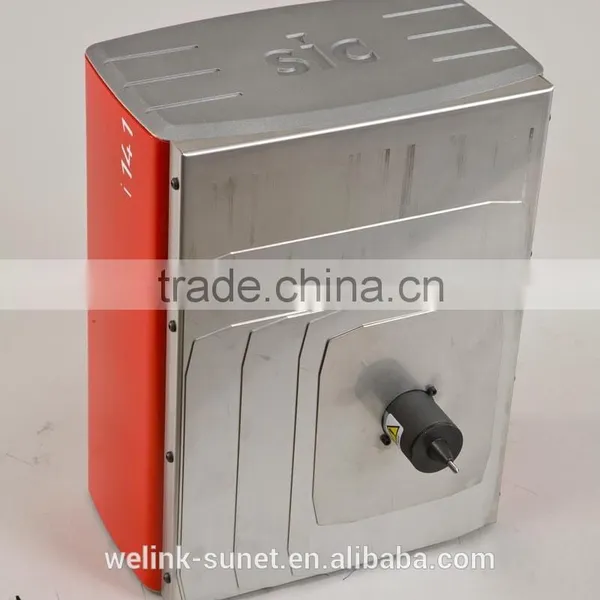

e10R i141 Dot Peen Marking Head

Integrated - Dot peen






LARGE MARKING WINDOW - RELIABLE, INTEGRATED MARKING MACHINE

The i141 is a compact dot peen marking head specifically designed for seamless integration into automated production lines, and can be mounted in any position (up, down, side-ways). Its large marking window and electromagnetic driving technology allow for permanent, deep marking on various surface shapes and materials (flat, concave, convex, circular, raw, machined, etc.). The i141 can mark any material, from plastics to hardened steel (up to 62HRC). The internal components are protected by a steel case, while flexible bellows allow continuous industrious use.

Its use requires no consumables and minimal maintenance, and it does not require a separate pneumatic system. The cable disconnects for fast and easy replacement. The integrated software's programming process is refreshingly easy to use, even with minimal training. The quality and precise accuracy of the guidance, the wide tolerance between the stylus and part, and the superior performance of the integrated software make the i141 a high performance, super reliable tool.



Product Gallery

 e10R i141 Dot Peen Marking Head Integrated two dimensional codee10R i141 Dot Peen Marking Head Integrated two dimensional codee10R i141 Dot Peen Marking Head Integrated two dimensional code

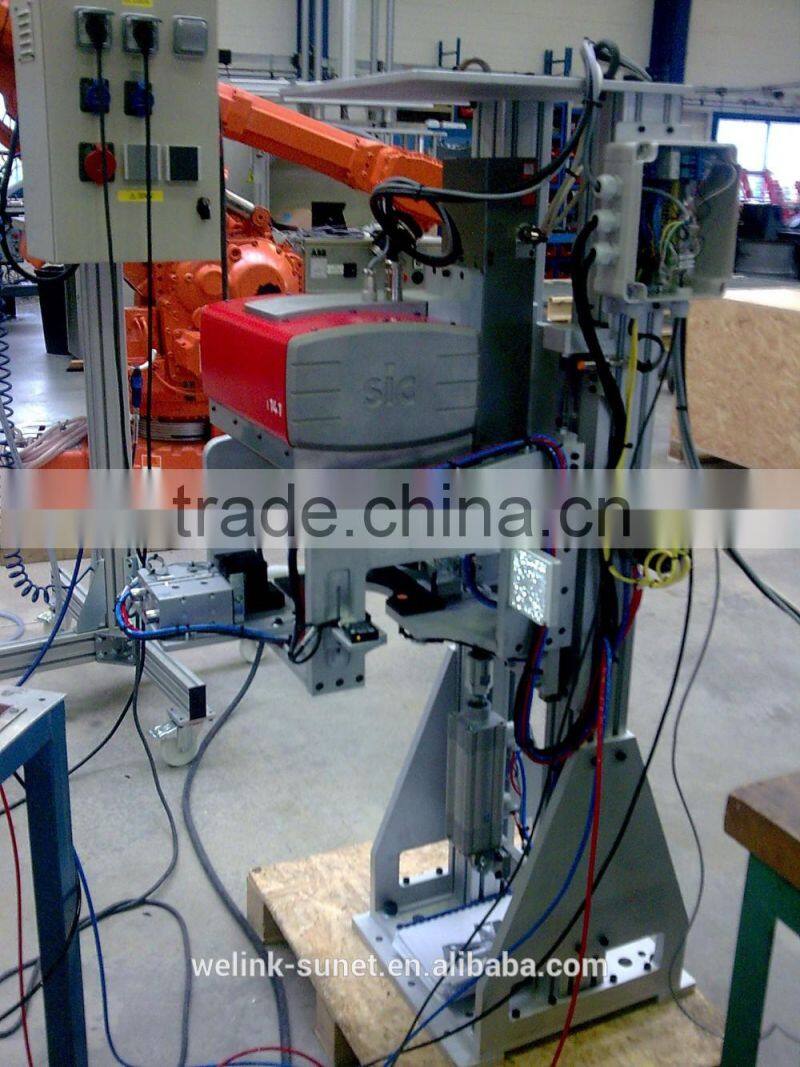

In Action

 e10R i141 Dot Peen Marking Head Integrated two dimensional code

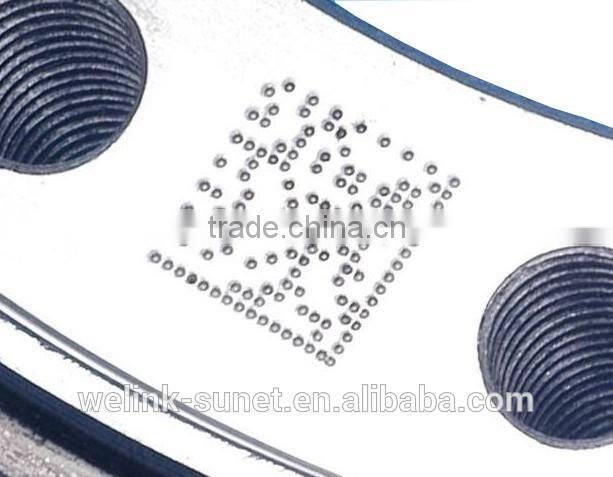

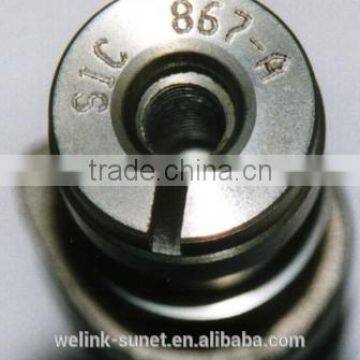

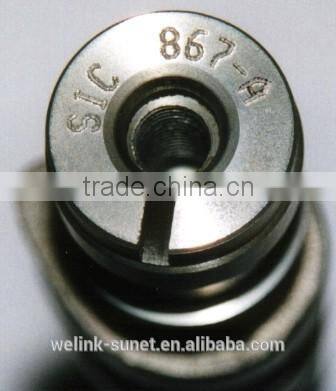

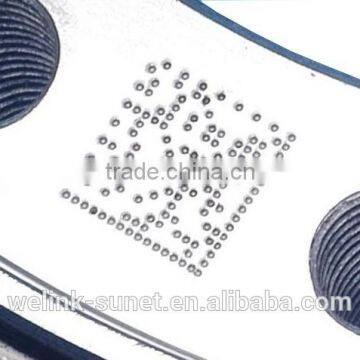

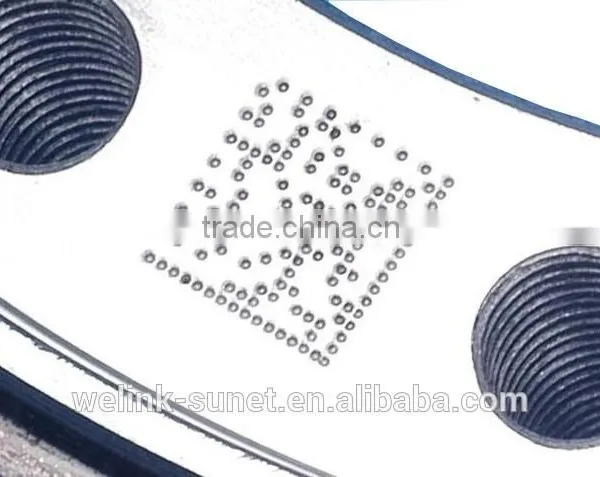

Marked Part

 e10R i141 Dot Peen Marking Head Integrated two dimensional code     e10R i141 Dot Peen Marking Head Integrated two dimensional code

Technology
MECHANICAL TECHNICAL FEATURES



Marking Window 150 x 100 mm
Dimensions 354 x 288 x 248 mm
Weight 12 kg
Connecting Cable 5m, (up to 15m available)
Stylus Carbide 60 mm
Protective Bellows Steel
Automatic Z-Axis Auto-sensing Function Optional (i141A)

  ELECTRONIC TECHNICAL FEATURES



Optimized for flawless integration on automated producted lines, the e10 R controller has a sealed membrane keyboard and 480 x 272 pixels backlit LCD color screen, providing the operator with a direct and easy-to-use interface. It is equipped with an innovative microprocessor that offers immediate start up and smooth browsing, and its comprehensive software suite allows for linear, angular, radial, and mirror image marking. An optional 3rd/4th axis circuit board can be intstalled to control a motorized column and/or rotary axis. Self diagnostic and machine history functions are also included.



The e10r can be mounted vertically in an electrical cabinet with a DIN rail mounting kit (optional). A fully enclosed steel exterior protects the internal components, allowing use in even the most critical industrial environments.

Dimensions 112 x 380 x 222 mm
Weight 5 kg
LCD Screen Resolution 480 x 272 p.
Keyboard QWERTY-Integrated, Membrane Overlay
Power 300W
Power Supply Single Phase, 85 to 260VAC, 50-60Hz
Number of Controlled Axes 2 (optional 3 and 4 axes available)
Card Options Booster (deep marking) and Ethernet (communication)
USB Port Transfer of Marking Files









































Software



Marking Files More than 2000
Memory 7110 Ko
Alphanumeric Characters Serial Number, Date Coding
Logos Creation from PC software
Datamatrix Up to 348 characters (48 x 48 dots)
Fonts Arial, Courier, OCR, and OCRA
Style Angular, Radial, Inverse, Mirror
Speed Up to 5 Characters per Second
Character Size From 0.1 mm to 99 mm
Impact Force 9 Adjustable Levels
Depth Up to 0.5 mm
Resolution Between Dots 0.05 mm
Maximum Stylus Stroke Up to 8 mm
Work Shift Management 10 Shifts
Password Protection 3 Levels of Security
Historical Function Password Protected
Maintenance Assistance Auto-diagnostic Component
Languages Available 17



COMMUNICATIONS



Ports RS232,RS422, USBx2, RS485, Profibus, and Ethernet Optional Board
Inputs/Outputs 16
External Keyboard Input USB
External Output 5V-0.5A and 24V-0.5A
Logos Creation and Transfer Software
File Backup on PC USB Key for Transfer
Database Link Optional



OPTIONS
e10R i141 Dot Peen Marking Head Integrated two dimensional code

Autosensing function

Associated with the digital Z third axis, the integrated sensor, also known as "autosensing", ensures a pre-determined distance between the stylus and part. The autosensing feature enables automatic adjustment to different part heights. This option ensures perfect mark consistency, even with varying geometries or dimesional tolerances. A key feature to provide optimal read rates for machine readable marks (2D, Data Matrix codes, etc...).

Autosensing option associated with a digital Z-axis allows:

  • Automatic detection of the part
  • Automatic stylus to part positionning for optimal mark readibility



Advantages

  • Maximal Dot-Peen Accuracy / Repeatability Ideal for Data Matrix code marking
  • Positioning accuracy: + / - 0.05 mm
  • Approach speed: 50 mm / second
e10R i141 Dot Peen Marking Head Integrated two dimensional code

Automatic Z axis 50-250mm stroke

The digital Z axis allows the marking head to access difficult areas or mark on several levels in one cycle. Available in various sizes.

  • 50-250 mm Z axis for intergrated product range


Equipment needed
Third axis board integrated into the e10 controller. Powers and controls the digital Z axis.

Interchangeable axis
Used on all SIC Marking dot peen & light-duty scribing systems with minimal adaptation.



Caracteristics

  •  Sturdy design based on stepper motors and lead screw
  •  Makes use of two industrial grade guiding rails
  •  Dedicated adapter plate to fit all marking heads
  •  Driven by third axis board integrated to the e10 controller
  •  Only one connection required: to e10 controller
  •  Advance speed : 50mm/s (2"/s)



Advantages

  •  Part markings on different levels in same operation
  •  Can avoid obstacles in the marking area
  •  Allows displacement marking head for part removal
  •  Compact and easy to integrate, reducing integration costs
  •  Movement is controlled through e10 marking file, which avoids requirement for an external controller
 e10R i141 Dot Peen Marking Head Integrated two dimensional code

Button box

Box with on / off buttons.Remote system start/stop

2.5 m connection cable to controller



Advantages :

  • Can start marking cycles manually.
  • Easy plugging
 e10R i141 Dot Peen Marking Head Integrated two dimensional code

Column and base for integrated marking system

This option enables mounting of a portable marking head into a set station to obtain a column-mounted system



Advantages :

  • Simplicity and flexibility:
  • Quick and easy handling and adaptation.
  • Low-cost option to enable transformation of portable or integrated marking heads into a column-mounted marking system to ease marking of small parts, identification plates, tags, etc.
 e10R i141 Dot Peen Marking Head Integrated two dimensional code

D rotary axis for e10 range (electric version)

This option, available on any column, peen or scribing device, allows you to mark parts up to 35 kg and with a diameter up to 250 mm. It marks long parts (tube, ...) with a through chuck.
The control software is included.


Caracteristics

  • 125 mm drill chuck
  • Cable between the axis D and the marking controller
  • Bits set for clamping parts on the inside:

    -maximum bore of the part 116 mm tight

  • Bits set for clamping parts on the outside:

    -125 mm maximum diameter clamping

  • Third axis chip for the controllermarking
 e10R i141 Dot Peen Marking Head Integrated two dimensional code

D rotary axis for e10 range (pneumatic version)

This option, available for use with all e10 column-mounted dot-peen or scribing systems, allows marking of parts up to 35 kg and with a diameter of up to 250 mm.



  • Pneumatic clamping for quick insertion / removal of parts - well suited for medium and large series.
  • A limited clamping stroke of 1.5 mm ensures maximum operator safety.
  • Control software included.
  • Only one connecting cable between the D axis and the marking system controller


Complete with 2 jaw sets:
Internal clamping jaws set: 116mm minimal internal diameter
External clamping jaws set:  130 mm maximal external diameter

Requires third axis board installed in e8 controller
 e10R i141 Dot Peen Marking Head Integrated two dimensional code

Maintenance kit

Extended maintenance kits contain most common replacement parts for repairs or preventive maintenance, extending machine life



Kit maintenance box items:

  • Dot peen stylus assembly (if dot peen machine)
  • Origin detector
  • Stylus
  • Spring mechanism
  • A set of drive belts (depending machine type)
  • Vaseline oil lubricant (to be ordered seperately)
