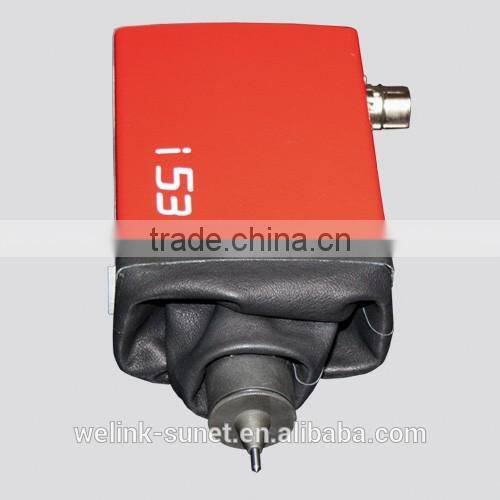

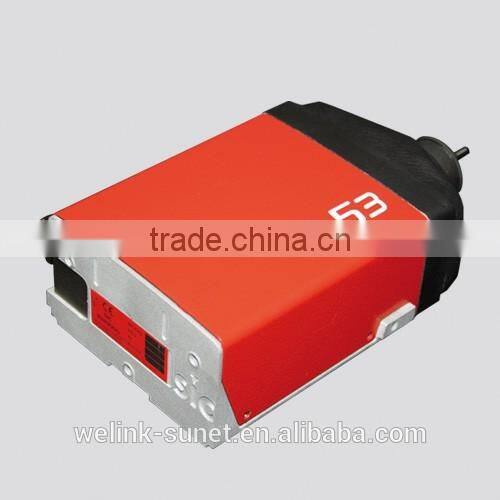

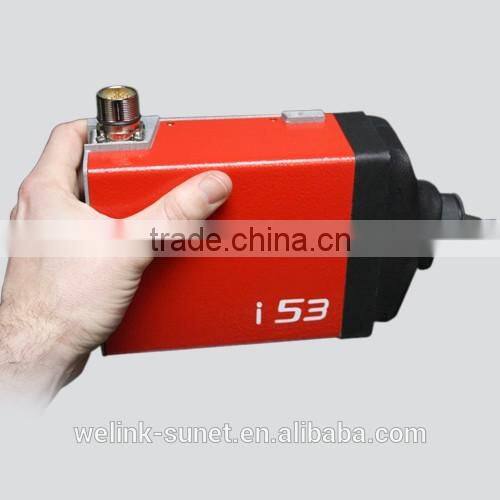

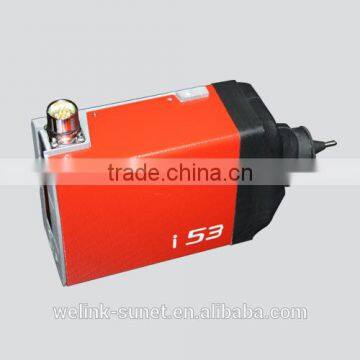

e10R i53 Dot Peen Marking Head Integrated - Dot peen

e10R i53 Dot Peen Marking Head

Integrated - Dot peen




POWERFUL INTEGRATABLE MARKING HEAD



The i53 dot peen marking head was engineered for seamless integration into automatic production lines. Its compact, lightweight design requires minimal maintenance and consumables, and no separate pnematic system. Easy to use, it can mark components of various shapes and surface materials, and will mark any material including plastics and hardened steel (up to 62HRC). Its electromagnetic driving technology allows permanent marking on parts of various shapes and surface finishes, whether flat, concave, convex, circular, raw, or machined.



The machine's internal components are protected by a heavy duty steel case, while flexible bellows allow continuous industrial use. The quality and accuracy of the guidance, the wide tolerance between the stylus and the part, and thespeed and power of the integrated software make the i53 a high-performance tool that is super easy to operate, even with minimal training.

Product Gallery

 e10R i53 Dot Peen Marking Head Integrated - Dot peene10R i53 Dot Peen Marking Head Integrated - Dot peene10R i53 Dot Peen Marking Head Integrated - Dot peene10R i53 Dot Peen Marking Head Integrated - Dot peen

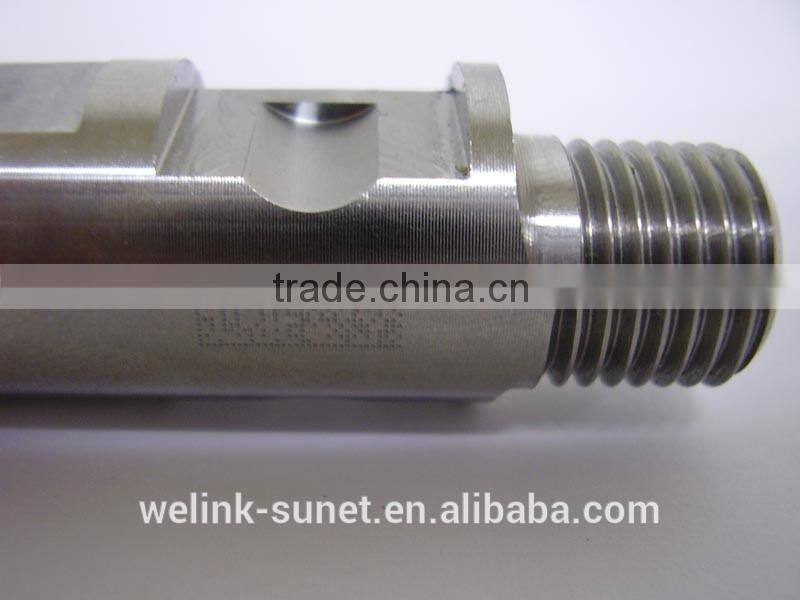

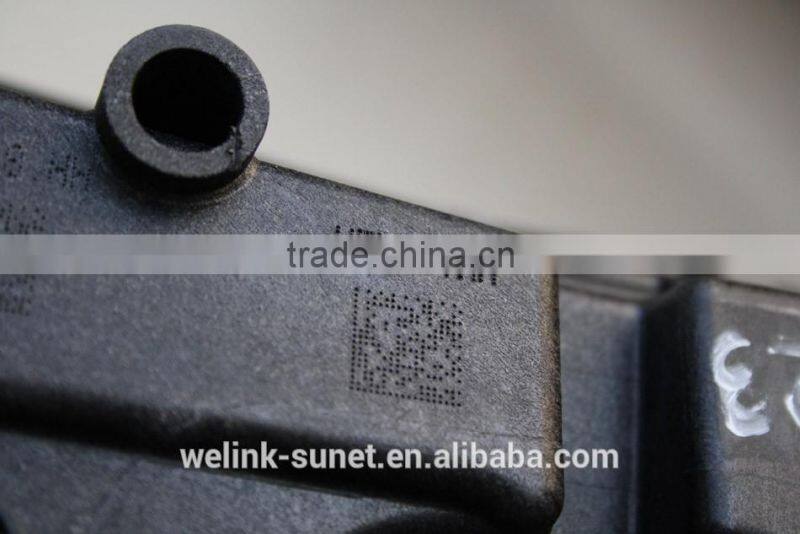

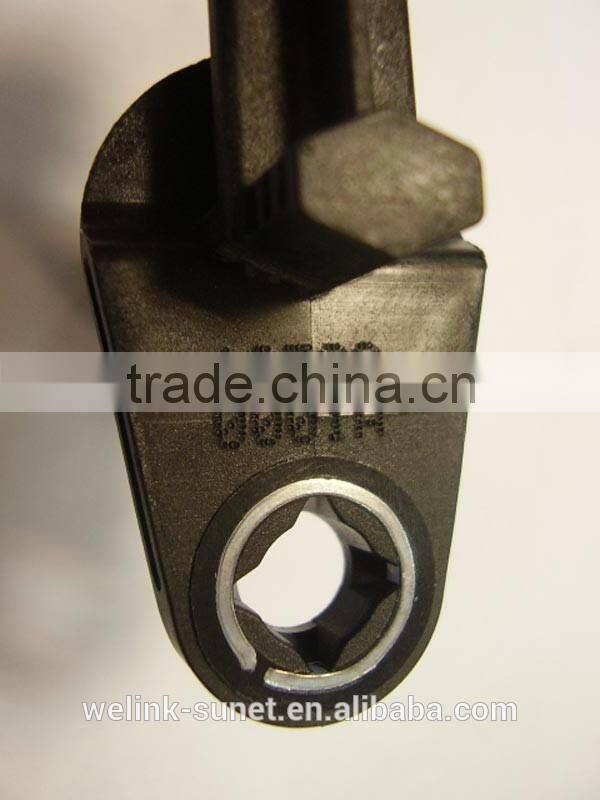

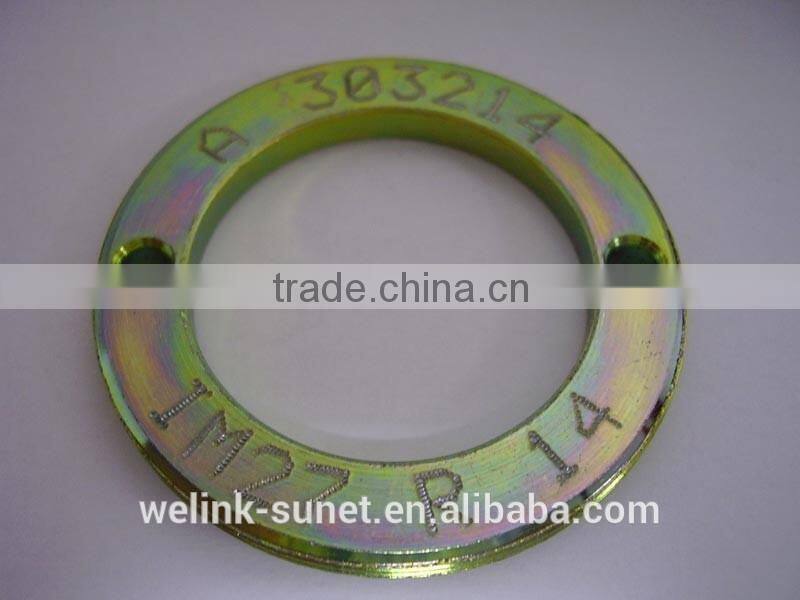

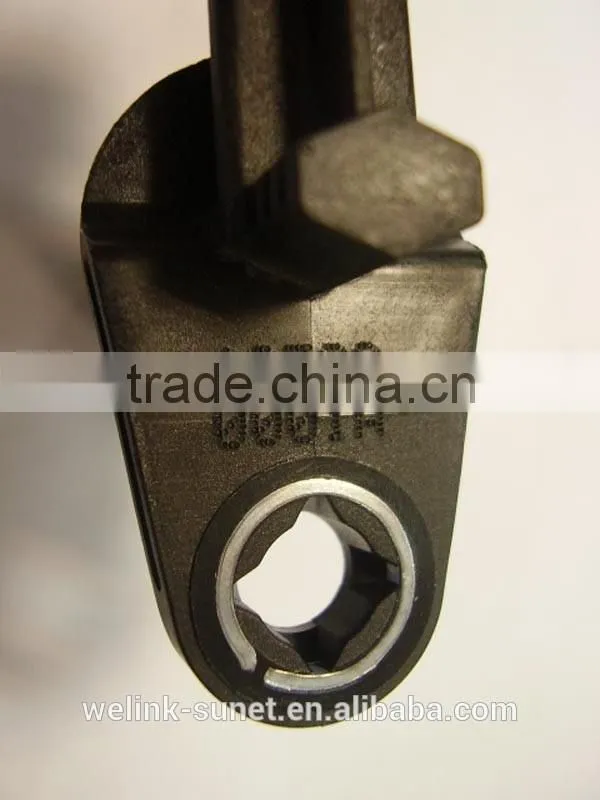

Marked Part

 e10R i53 Dot Peen Marking Head Integrated - Dot peene10R i53 Dot Peen Marking Head Integrated - Dot peene10R i53 Dot Peen Marking Head Integrated - Dot peene10R i53 Dot Peen Marking Head Integrated - Dot peen

Technology
MECHANICAL TECHNICAL FEATURES



Marking Window 50 x 20mm
Dimensions 250 x 130 x 70 mm
Weight 2.6 kg
Connecting Cable 5m (up to 15m available)
Stylus Carbide 60 mm
Protective Bellows Leather

  ELECTRONIC TECHNICAL FEATURES



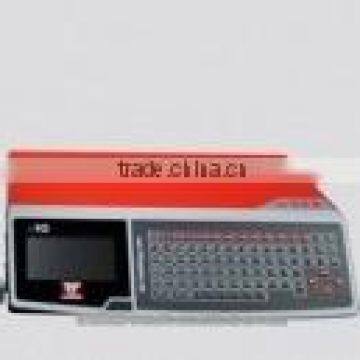

Optimized for flawless integration on automated producted lines, the e10 R controller has a sealed membrane keyboard and 480 x 272 pixels backlit LCD color screen, providing the operator with a direct and easy-to-use interface. It is equipped with an innovative microprocessor that offers immediate start up and smooth browsing, and its comprehensive software suite allows for linear, angular, radial, and mirror image marking. An optional 3rd/4th axis circuit board can be intstalled to control a motorized column and/or rotary axis. Self diagnostic and machine history functions are also included.



The e10r can be mounted vertically in an electrical cabinet with a DIN rail mounting kit (optional). A fully enclosed steel exterior protects the internal components, allowing use in even the most critical industrial environments.



Dimensions 112 x 380 x 222 mm
Weight 5 kg
LCD Screen Resolution 480 x 272 p.
Keyboard QWERTY-Integrated, Membrane Overlay
Power 300W
Power Supply Single Phase, 85 to 260VAC, 50-60Hz
Number of Controlled Axes 2 (optional 3 and 4 axes available)
Card Options Booster (deep marking) and Ethernet (communication)
USB Port Transfer of Marking Files



Software



Marking Files More than 2000
Memory 7110 Ko
Alphanumeric Characters Serial Number, Date Coding
Logos Creation from PC software
Datamatrix Up to 348 characters (48 x 48 dots)
Fonts Arial, Courier, OCR, and OCRA
Style Angular, Radial, Inverse, Mirror
Speed Up to 5 Characters per Second
Character Size From 0.1 mm to 99 mm
Impact Force 9 Adjustable Levels
Depth Up to 0.5 mm
Resolution Between Dots 0.05 mm
Maximum Stylus Stroke Up to 8 mm
Work Shift Management 10 Shifts
Password Protection 3 Levels of Security
Historical Function Password Protected
Maintenance Assistance Auto-diagnostic Component
Languages Available 17



COMMUNICATIONS



Ports RS232,RS422, USBx2, RS485, Profibus, and Ethernet Optional Board
Inputs/Outputs 16
External Keyboard Input USB
External Output 5V-0.5A and 24V-0.5A
Logos Creation and Transfer Software
File Backup on PC USB Key for Transfer
Database Link Optional



OPTIONS
e10R i53 Dot Peen Marking Head Integrated - Dot peen

Automatic Z axis 50-250mm stroke

The digital Z axis allows the marking head to access difficult areas or mark on several levels in one cycle. Available in various sizes.

  • 50-250 mm Z axis for intergrated product range


Equipment needed
Third axis board integrated into the e10 controller. Powers and controls the digital Z axis.

Interchangeable axis
Used on all SIC Marking dot peen & light-duty scribing systems with minimal adaptation.



Caracteristics

  •  Sturdy design based on stepper motors and lead screw
  •  Makes use of two industrial grade guiding rails
  •  Dedicated adapter plate to fit all marking heads
  •  Driven by third axis board integrated to the e10 controller
  •  Only one connection required: to e10 controller
  •  Advance speed : 50mm/s (2"/s)



Advantages

  •  Part markings on different levels in same operation
  •  Can avoid obstacles in the marking area
  •  Allows displacement marking head for part removal
  •  Compact and easy to integrate, reducing integration costs
  •  Movement is controlled through e10 marking file, which avoids requirement for an external controller
e10R i53 Dot Peen Marking Head Integrated - Dot peen

Maintenance kit

Extended maintenance kits contain most common replacement parts for repairs or preventive maintenance, extending machine life



Kit maintenance box items:

  • Dot peen stylus assembly (if dot peen machine)
  • Origin detector
  • Stylus
  • Spring mechanism
  • A set of drive belts (depending machine type)
  • Vaseline oil lubricant (to be ordered seperately)
