5dB/6dB/7dB/10dB/15dB/20dB/25dB/30dB/ 800-2500MHZ RF Directional Coupler
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
tianxing
Model Number:
800-2500NHZ
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PIM3-150dBC IP65 800-2500MHZ Directional CouplerNegotiableMOQ: 500 Pieces -
800-2500MHZ Indoor RF Directional Coupler With N-F ConnectorNegotiableMOQ: 500 Pieces
-
5dB/6dB/7dB/10dB/15dB/20dB/25dB/30dB/ 800-2700MHZ RF Directional CouplerNegotiableMOQ: 5000 Pieces
-
Hot Sale RF Directional CouplerNegotiableMOQ: 500 Pieces
-
800-2700MHz 140dBc Gray 10dB Directional CouplerUS$ 1 - 10MOQ: 500 Pieces
Place of Origin
Jiangsu, China
Brand Name
tianxing
Model Number
800-2500NHZ
5dB/6dB/7dB/10dB/15dB/20dB/25dB/30dB/ 800-2500MHZ RF directional coupler
1. technical specification
| 800 - 2500MHz N-Female Cavity Directional Coupler | |||||||||
| Coupling | 5dB | 6dB | 7dB | 8dB | 10dB | 15dB | 20dB | 25dB | 30dB |
| Frequency Range | 800 - 2500MHz | ||||||||
| Insertion Loss | ≤2.0dB | ≤1.6dB | ≤1.35dB | ≤1.1dB | ≤0.7dB | ≤0.4dB | ≤0.3dB | ≤0.2dB | ≤0.2dB |
| In-band Ripple | ±0.6dB | ±0.6dB | ±0.6dB | ±0.6dB | ±0.8dB | ±0.8dB | ±1.0dB | ±1.0dB | ±1.0dB |
| Isolation(dB) | ≥25 | ≥26 | ≥27 | ≥28 | ≥30 | ≥35 | ≥40 | ≥45 | ≥50 |
| VSWR | <1.25 | ||||||||
| PIM (IM3) | ≤-140@+43dBm×2 | ||||||||
| Power Handling | 200W | ||||||||
| Impedance | 50Ω | ||||||||
| Connector Type | N-Female | ||||||||

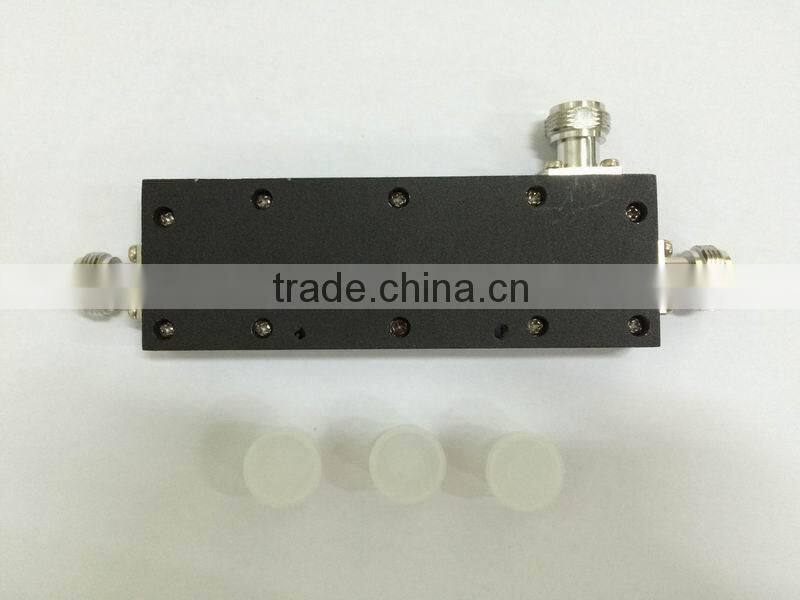

2. Product show
3. Factory bulding
Company Information
4. shipment
Packaging & Shipping
1. packing: the packing are according to your instruction.
2. shipping: the sample will be arranged within 7 days, and the order shippment will be arranged according to the quatity.
5. Contact us
Sales: Eve Yao
Skype: trade. eve
web:
Tel: 86 511 83565358
Fax: 86 511 83565357
We sincerely welcome all interested buyers to visit our factory and contact us directly for further information, we will reply you as soon as possible!
