IP68 Rated Washable 16mm Stainless Steel Optical Trackball Mouse

IP68 Rated Washable 16mm Stainless Steel Optical Trackball Mouse thumbnail-1
IP68 Rated Washable 16mm Stainless Steel Optical Trackball Mouse photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Desktop
Type:
Wired
Contact Supplier Request Quote Chat Now
Key Technology (China) Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
SHEN ZHEN AND HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Desktop
Type Wired
Interface Type Other, USB AND PS2
DPI Other, ≤ 800
Tracking Method Other, laser and optical
Style Waterproof, Other, Waterproof, waterproof and vandal proof
Hand Orientation Both Hands
Brand Name KEY-TEK
Model Number K-TEK-16-OTB
Place of Origin China



Model NO:K-TEK-16-OTB



Dimension: 42.9mm x 28.6mm

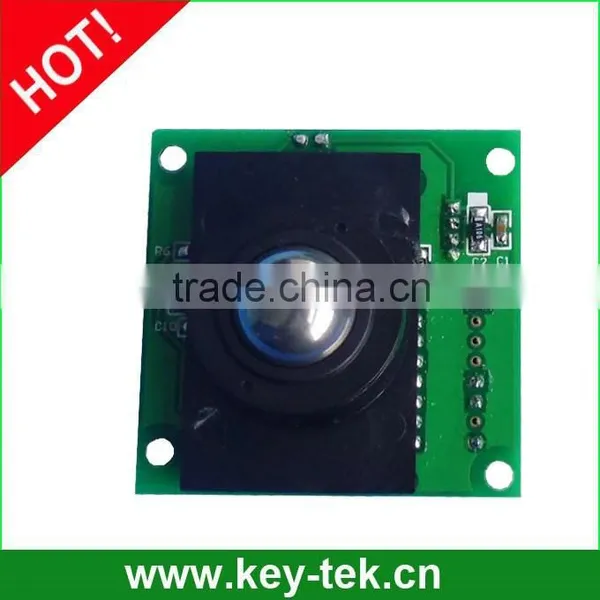

Description: IP68 dynamic rated washable 16mm stainless steel optical trackball MODULE with 800 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise.



TECHNICAL SPECIFICATION

ITEM

SPECIFICATION

Mechanical Data

Ball diameter

16mm

Track ball lifespan

> 10 Mio revolutions

Actuation Force

1.0N to 3.0N

Dimension

16.0 mm (1’) diameter for ball, 42.90mm x 28.6mm (front panel)

Interface

PS2, USB are available, Y type cable with ports of PS2 and USB

Electrical

Power supply

5V DC+ 10%, keyboard interface

Protection level

IP65 (dynamic), NEMA3

EMC Standard

EN55022(B)

Power consuming

≤1.00W(dynamic)

≤0.2W(static)

Environmental

Operating temperature

-20ºC~+ 60º C

Storage temperature

- 30ºC~+ 70ºC

Operating RH

30~90%

Atmospheric pressure

60~106Kpa.

Reliable

Certificates

RoHS compliant, CE and FCC certified.

MTBF

>50000H

MTTR

< 30min

OS

DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win 7, Linux, Unix, Mac OSX

Packing Details

Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
