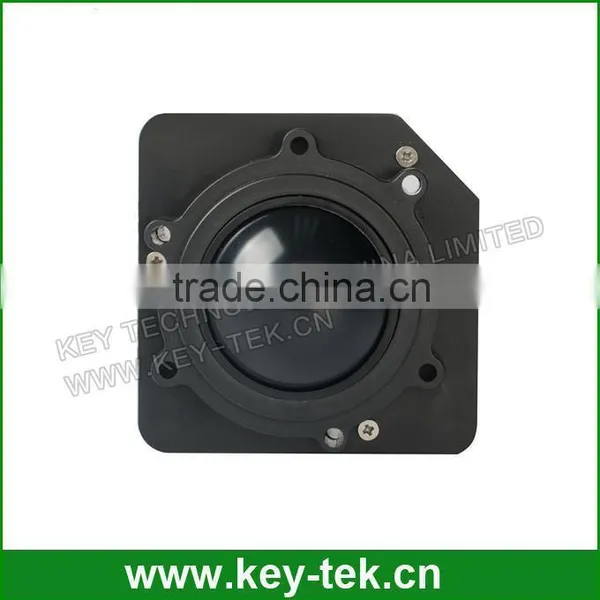

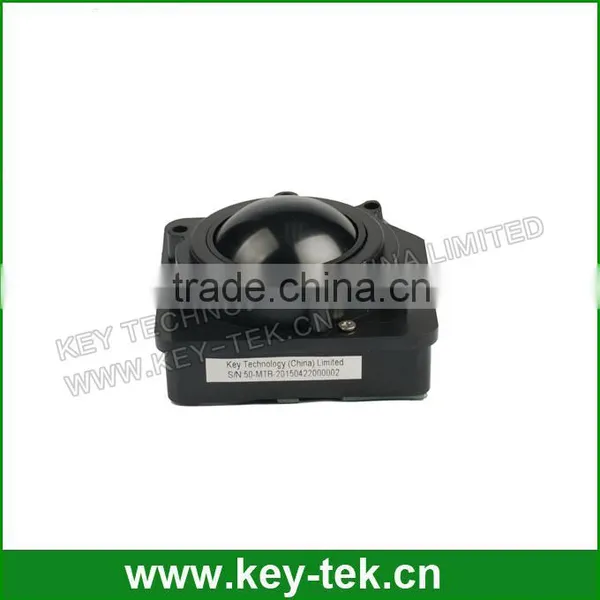

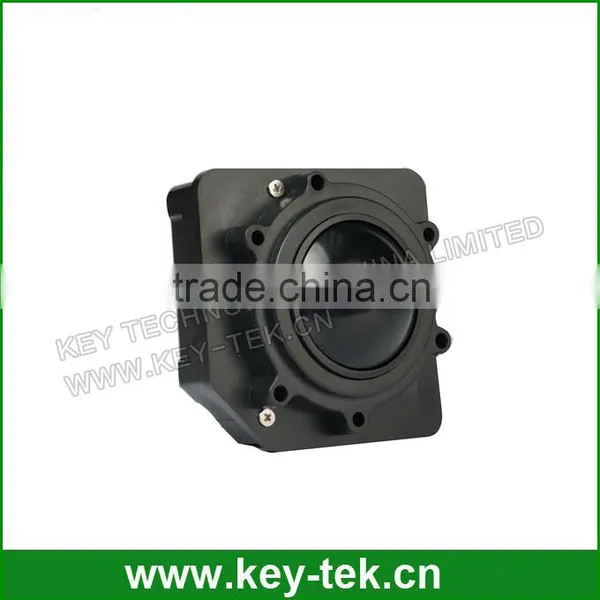

50mm Resin Mechnical Trackball With IP65 Rated
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Key-Tek
Model Number:
K-TEK-50-MTB
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen Zhen and HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 New Rear Panel Mounting IP65 Industrial Metal Ruggedized TouchpadUS$ 89 - 199MOQ: 1 Piece -
38mm Waterproof Vandal Proof Stainless Steel Trackball Pointing MouseNegotiableMOQ: 1 Set
-
IP68 Washable Optical Metal TrackballNegotiableMOQ: 1 Set
-
38mm Integrated Trackball With Three ButtonsNegotiableMOQ: 1 Set
-
38mm Stainless Steel Waterproof Indsutrial Metal TrackballNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Key-Tek
Model Number
K-TEK-50-MTB
Model NO:K-TEK-50-MTB
Dimension: 77.50mm x 77.50mm x 31.80mm(front panel)
Description:IP65 rated 50mm Mechanical Trackball MODULE with adjustable resolutions from low to high for different applications requirements, military level.
MAIN FEATURE
Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for
most workstations and computers.
Available 50.0mm, 40mm, 38mm, 25mm, 22mm, 19mm and 16mm diameter stainless steel or hard
phenolic resin ball for smooth, durable operation and precise cursor positioning.
Rate sensitive dynamic resolution provides for accelerated movement of the cursor when the
ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly
| ITEM | SPECIFICATION | |
| Mechanical Data | Ball diameter | 50mm(19mm, 25mm, 36mm 40mm also available) |
| Track ball lifespan | > 5 Mio revolutions | |
| Actuation Force | 1.0N to 3.0N | |
| Dimension | 50mm diameter for ball, 77.50mm x 77.50mm x 31.80mm(front panel) | |
| Interface | PS2, USB are available, Y type cable with ports of PS2 and USB | |
| Electrical | Power supply | 5V DC+ 10%, keyboard interface |
| Protection level | IP65 dynamic, NEMA3 | |
| EMC Standard | EN55022(B) | |
| Power consuming | ≤1.00W(dynamic) | |
| ≤0.2W(static) | ||
| Environmental | Operating temperature | -20ºC~+ 60º C |
| Storage temperature | - 30ºC~+ 70ºC | |
| Operating RH | 30~90% | |
| Atmospheric pressure | 60106Kpa. | |
| Reliable | Certificates | RoHS compliant, CE and FCC certified. |
| MTBF | >20000h | |
| MTTR | < 30min | |
| OS | DOS/Windows95/98/NT/ME/2000/2003/XP/Vista,WIN7, Linux, Unix, Mac OSX | |
| Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. | |
