2016 New Rear Panel Mounting IP65 Industrial Metal Ruggedized Touchpad
US$ 89 - 199
MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Brand Name:
key-tek
Model Number:
K-TEK-B83TP
Payment & Shipping
Payment Methods:
Port of Shipment:
SHEN ZHEN AND HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
38mm Waterproof Vandal Proof Stainless Steel Trackball Pointing MouseNegotiableMOQ: 1 Set -
IP68 Washable Optical Metal TrackballNegotiableMOQ: 1 Set
-
38mm Integrated Trackball With Three ButtonsNegotiableMOQ: 1 Set
-
38mm Stainless Steel Waterproof Indsutrial Metal TrackballNegotiableMOQ: 1 Set
-
38mm Optical Stainless Steel Waterproof Industrial Metal TrackballNegotiableMOQ: 1 Set
Products Status
Stock
Brand Name
key-tek
Model Number
K-TEK-B83TP
Place of Origin
Guangdong, China
Product Description
Model NO:K-TEK-B83TP
Dimension:83.0mm x 110.0mm (front panel)

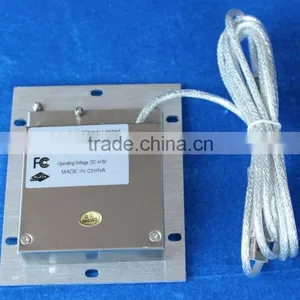

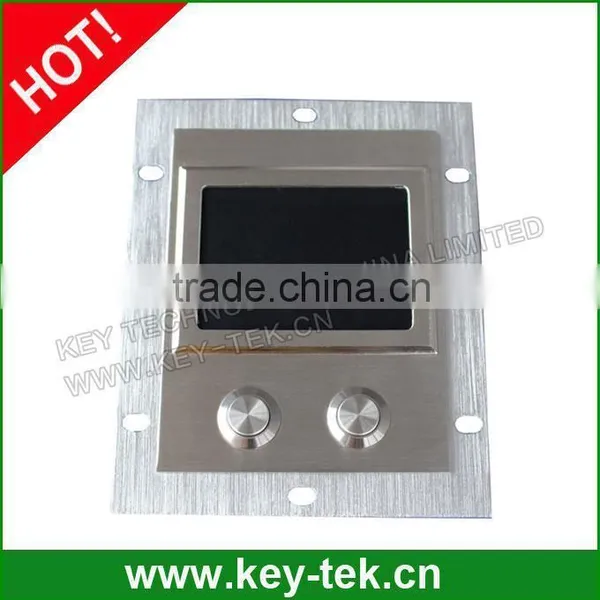

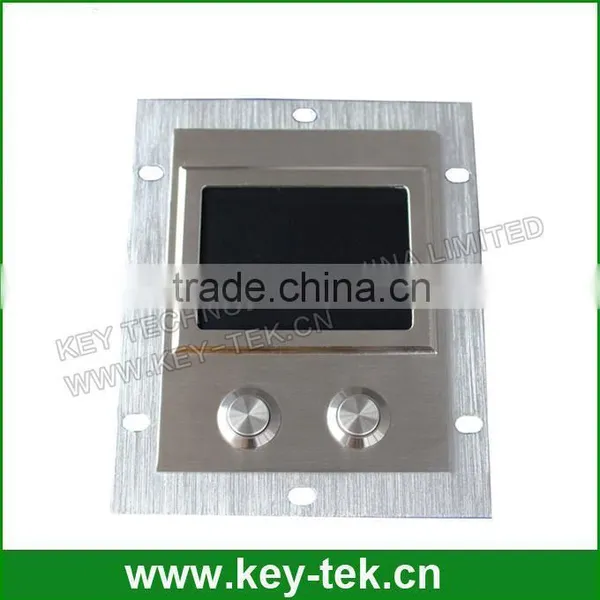

Description:IP65 dynamic Sealed and Ruggedized Touchpad with scroll function optional for fast and accurate cursor position, with stainless steel housing protects the electronics controller module, IP65 dynamic rated sealed stainless steel mouse buttons under touchpad, with rear panel mounting.
TECHNICAL SPECIFICATION
| ITEM | SPECIFICATION | ||
| Mechanical | Front Plate | Quality brushed stainless steel | |
| Touchpad thickness | 1.3 mm PCB thickness inclusive of mylar layer | ||
| Validated touch width | 46.50mm (max) | ||
| Validated touch length | 62.50mm (max) | ||
| Mounting Rack | Aluminum alloy | ||
| Back Metal Cover | Rear side integrated electronics protected by a metal cover | ||
| Touchpad lifespan | > 10 Mio times | ||
| Dimensions | Touchpad: 65.0mm x 49.0mm; Front Mounting Panel: 83.0mm x 110.0mm (front panel), Rear Mounting Panel: 107.0mm x 134.0mm | ||
| Interface | PS2 and USB both available | ||
| Electrical | Power supply | 5V DC+ 10%, | |
| Work current | 4.0 mA (normal) | ||
| X/Y position sensing resolution: | 1000 points/inch (40 points/mm) | ||
| X/Y position reporting: | Relative | ||
| Tracking speed: | Maximum 1,016 m/sec | ||
| Protection level: | IP65 (front panel) | ||
| Static Release: | 15 KV (front panel) | ||
| EMC Standard: | EN55022(B) | ||
| Environmental | Operating temperature: | -20°C to +60°C | |
| Storage temperature: | - 40°C to + 70°C | ||
| Operating RH: | 10%-95% | ||
| Atmospheric pressure: | 60-106Kpa | ||
| Reliability | MTBF | >20000h | |
| MTTR | < 30min | ||
| Touchpad Lifespan | >10 million actuations | ||
| OS | OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista, Linux, Unix, Mac OS9 / OSX | ||
| Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. | ||
